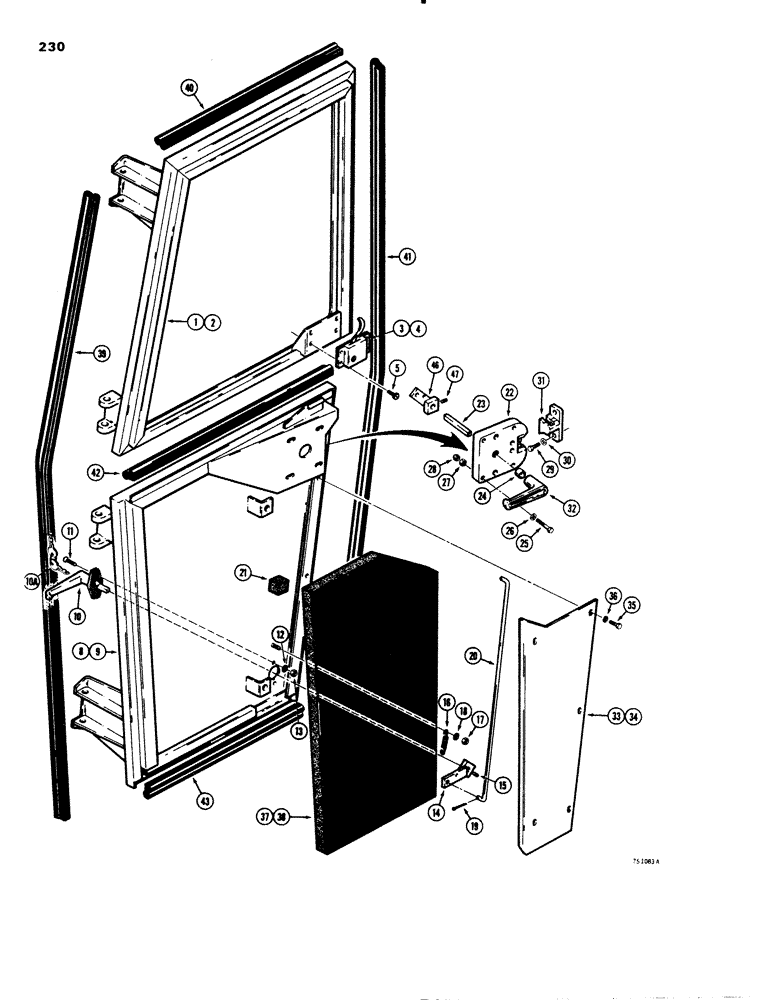

Запчасти Case W20 (230) - CAB DOORS (09) - CHASSIS

1

D71510

DOOR

- upper, R.H.

1шт.

2

D71509

DOOR

- upper, L.H.

1шт.

3

D71511

LATCH

- upper door, R.H.

1шт.

4

D71512

LATCH

- upper door, L.H.

1шт.

5

187-574

SELF-TAP SCREW,Hex Hd, #10 x 3/4"

SCREW - hex. washer, self-tapping (#10 - 32 NF x 3/4")

8шт.

8

D71524

DOOR

- lower, R.H.

1шт.

9

D71523

DOOR

- lower, L.H.

1шт.

10

D71525

HANDLE

- lower door, Includes: Ref. 10A

2шт.

10a

A42653

SET OF 2 KEYS

KEY

2шт.

11

163-23

SCREW,Hex, #10 - 32 x 3/4"

HHCS - #10 - 32 NF x 3/4"

4шт.

12

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

13

131-37

LOCK NUT,3/4"-16

NUT - hex., jam (#10 - 32 NF) Plated

4шт.

14

D73710

ARM

- latch, bottom, Includes: Ref. 15

2шт.

15

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set, 1/4" - 20 NC x 3/8"

1шт.

16

L35748

SPRING

- arm return, if used

2шт.

17

131-37

LOCK NUT,3/4"-16

NUT - hex., jam (#10 - 32 NF) Plated

2шт.

18

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

19

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

20

D71516

ROD

- latch pull, early production requires cotter pin

2шт.

21

REF

INSTRUCTION

RUBBER - foam, 1" long, (25 mm) Cut from D70610 bulk

2шт.

22

F89824

LATCH

- door

2шт.

23

D72728

SPLINE

SHAFT - door latch

2шт.

24

D72729

BUSHING

SPACER - door latch

2шт.

25

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

8шт.

26

195-102

WASHER,1/4"

- flat, 1/4"

8шт.

27

25-104

NUT,1/4"-20, G5

8шт.

28

129-141

JAM NUT,Jam, 1/4"-20, G5

8шт.

29

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

30

195-102

WASHER,1/4"

- flat, 1/4"

2шт.

31

F63580

PLATE

STRIKER - door

2шт.

32

F63925

HANDLE

- inside

2шт.

33

D72730

PANEL

- door cover, R.H.

1шт.

34

D72731

PANEL

- door cover, L.H.

1шт.

35

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

36

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

37

D71514

FOAM

- lower door, R.H.

1шт.

38

D71515

INSULATOR

FOAM - lower door, L.H.

1шт.

39

REF

INSTRUCTION

SEAL - hinge side (Cut from D66499 bulk)

1шт.

40

REF

INSTRUCTION

SEAL - top, 21" long (533 mm) Cut from D66499 bulk

1шт.

41

REF

INSTRUCTION

SEAL - 94" long (2388 mm) Cut from D66499 bulk

1шт.

42

REF

INSTRUCTION

SEAL - 24" long (610 mm) Cut from D66499 bulk

1шт.

43

REF

INSTRUCTION

SEAL - 18" long (457 mm) Cut from D66499 bulk

1шт.

44

D70610

GASKET

FOAM - bulk, 50' (15.2 metres) roll (Not shown)

1шт.

45

D66499

SEAL

- bulk, 50' (15.2 metres) roll (Not shown)

1шт.

46

D73710

ARM

- latch, top, Includes: Ref. 47

2шт.

47

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set, 1/4" - 20 NC x 3/8"

1шт.
