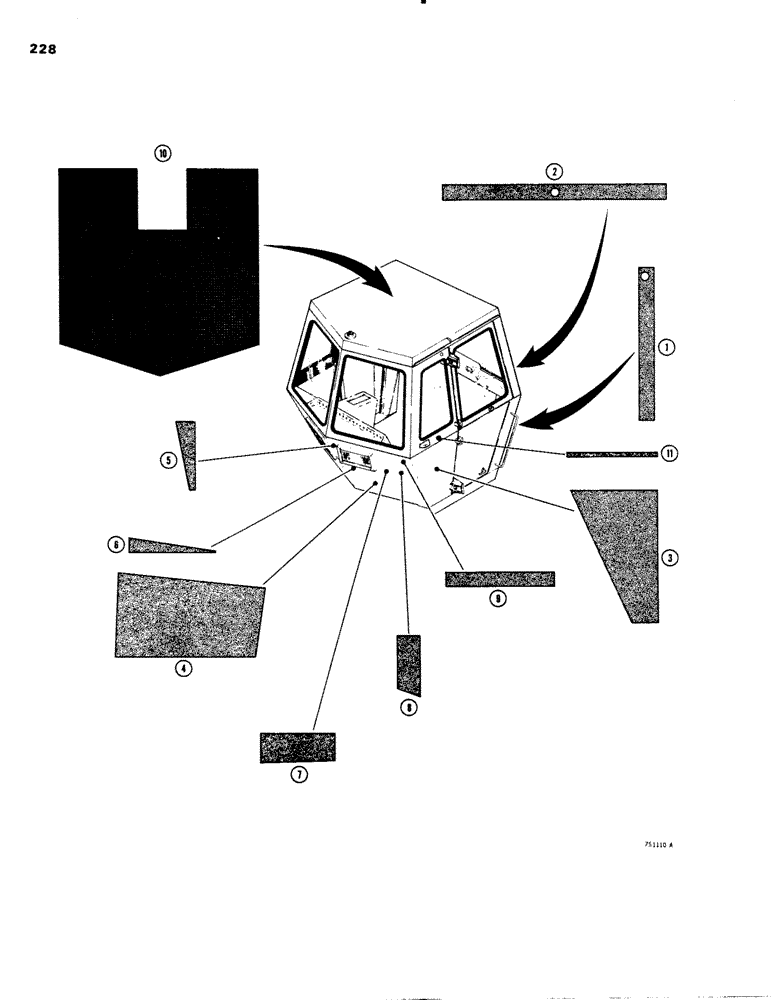

Запчасти Case W20 (228) - NOISE CONTROL PADS (09) - CHASSIS

1

D71521

FOAM

- cowl

2шт.

2

D71522

FOAM

- windshield

1шт.

3

D71526

FOAM

- side panel compartment

2шт.

4

D72726

FOAM

- rear lower panel

2шт.

5

D71531

FOAM

- lower panel, center

2шт.

6

D71532

FOAM

- lower rear, panel

2шт.

7

D71533

SEAL ASSY.

FOAM - end, lower rear panel

2шт.

8

D71534

FOAM

- side, lower rear panel

2шт.

9

D72725

FOAM

- top, lower rear panel

2шт.

10

D71508

HEADLINER - cab

1шт.

11

REF

INSTRUCTION

FOAM - 17" (432 mm) long at window hold back latch (Cut from L35726 bulk)

4шт.

12

L35726

FOAM - bulk, 3/8" x 1" x 50' (10 mm x 25 mm x 15.2 metres) Not shown

1шт.

13

A55582

PAD

- non slip, door (Not shown)

2шт.
