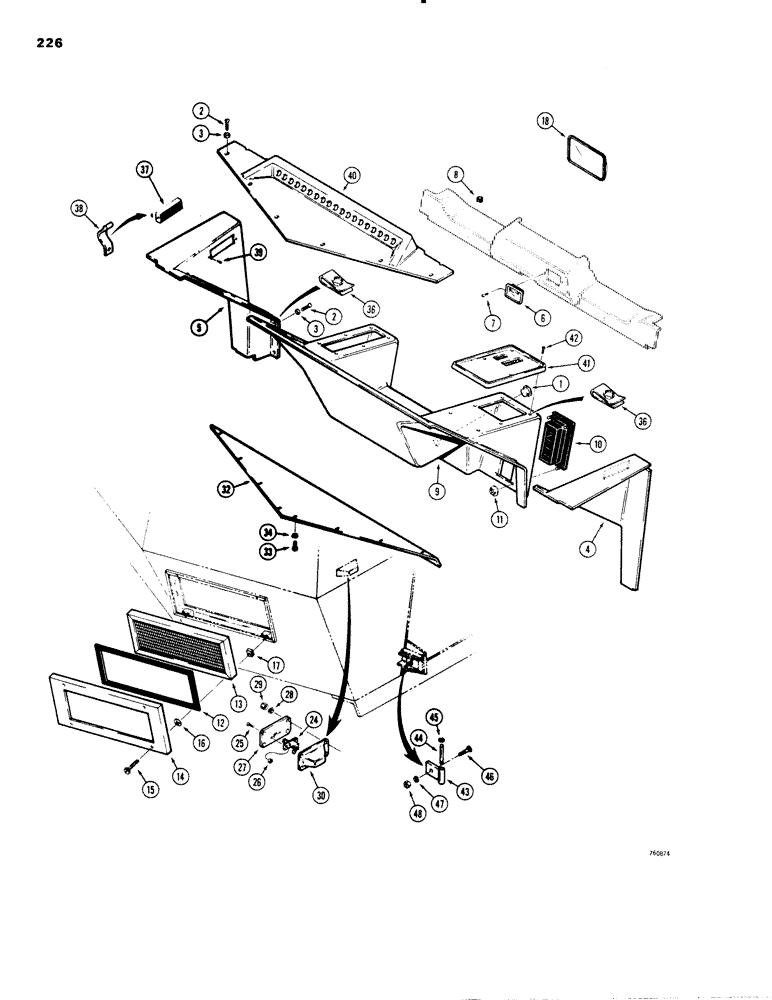

Запчасти Case W20 (226) - CAB CLOSURE PARTS (09) - CHASSIS

NSS

NOT SOLD SEPARAT

CAB - operator's, see figure 2 for ordering

1шт.

1

353-416

PLUG,Dome, 1.750" hole, Nylon

- nylon, 1-3/4" dia.

1шт.

2

187-1099

SELF-TAP SCREW,Cross Oval Hd, #10 x 1 1/4"

SCREW - oval head, #10 - 16 NC x 1-1/4"

23шт.

3

F43576

WASHER

- countersunk (#10 plain)

23шт.

4

L74567

PANEL

- trim, R.H. side

1шт.

5

L74562

PANEL

- trim, L.H. side

1шт.

6

D71520

ASH TRAY

TRAY - ash

1шт.

7

187-1040

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

SCREW - flat head, self-tapping (#6 - 32 NC x 3/8")

2шт.

8

A75994

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

- 1/4" x 5/16"

1шт.

9

F43500

PANEL

- trim, center

1шт.

10

F43507

PLATE

LOUVER - outlet

2шт.

11

131-423

NUT,3/16", Twist

NUT - twist, 3/16" stud dia.

8шт.

12

F43190

SEAL

- filter

2шт.

13

F43180

FILTER

- outside air

2шт.

14

D71530

FUNNEL

FRAME - filter retaining

2шт.

15

D72843

SCREW

- special

6шт.

16

A61045

RETAINER

WASHER

8шт.

17

A61046

CLIP

RECEPTACLE

8шт.

18

L74714

MIRROR

- rear view, includes hardware

1шт.

24

F43506

LATCH ASSY.

LATCH - window holdback

2шт.

25

182-143

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

- pan head, #10 - 23 NF x 3/8"

4шт.

26

129-37

NUT,#10-32

4шт.

27

D71513

PLATE

- latch

2шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

29

25-104

NUT,1/4"-20, G5

8шт.

30

F43505

COVER

- window latch

2шт.

32

D71527

PANEL

- floor plate, rear

1шт.

33

187-229

SCREW - oval head, #10 - 16 NC x 1/2"

15шт.

34

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

15шт.

36

131-642

SPRING NUT,Tinn, U, #10

- speed, U type #10

1шт.

37

F89673

GUARD

LOUVER - square style

2шт.

38

A42575

CLIP

8шт.

39

151-502

RIVET,Pop, 1/8" x 5/16"

- pop

8шт.

40

L71149

PANEL

- rear shelf

1шт.

41

L70576

PANEL

- control cover, 2 spool

1шт.

42

187-1098

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - #10 - 24 NC x 3/4"

6шт.

43

D71528

HINGE

- doors, adjustable

4шт.

44

D72732

PIN

- hinge

8шт.

45

A27795

RING

- retaining, "F" type

16шт.

46

111-316

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G5

4шт.

47

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

48

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.
