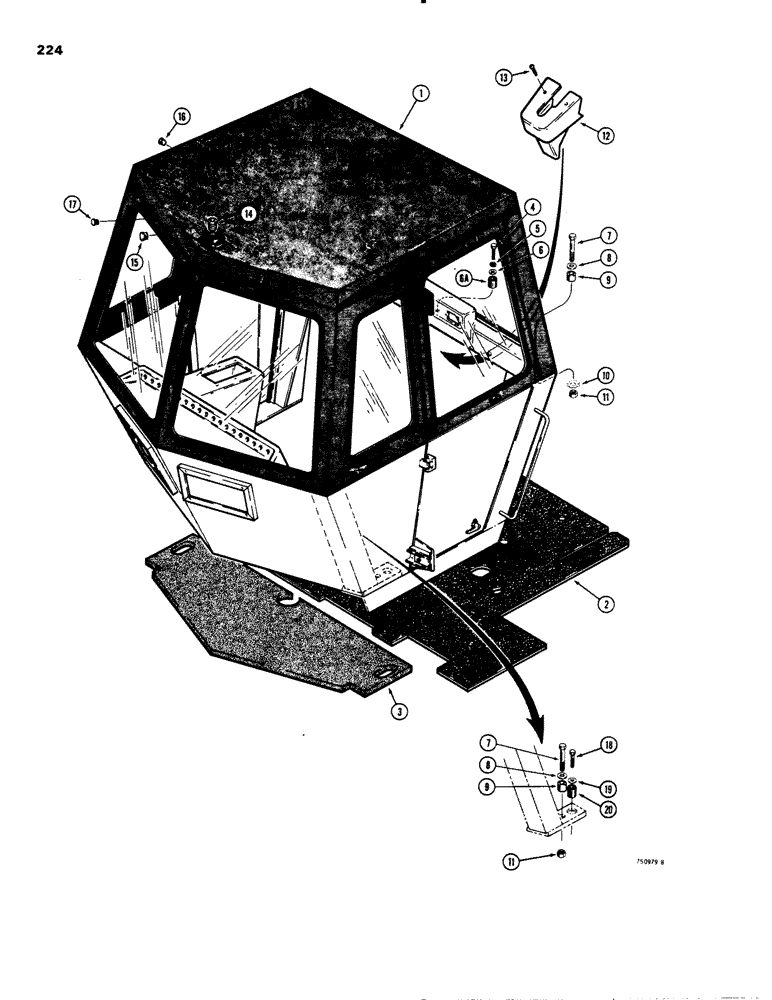

Запчасти Case W20 (224) - CAB MOUNTING (09) - CHASSIS

1

NSS

NOT SOLD SEPARAT

CAB - operators (see figure 2 for ordering)

1шт.

2

L76769

FLOOR MAT

MAT - floor

1шт.

3

L71329

SEAL

- floor

1шт.

4

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3"

1шт.

5

92-8

LOCK WASHER,1/2"

1шт.

6

195-2055

WASHER,17/32" x 2 1/4" x .180"

- flat, 1/2"

1шт.

7

26-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

HHCS - 3/4" - 10 NC x 4"

4шт.

8

F42895

WASHER

- flat

4шт.

9

F42894

BUSHING

SPACER - mounting

4шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

2шт.

11

26-1612

NUT - hex., lock, 3/4" - 10 NC

4шт.

12

L71467

COVER

- steering column

1шт.

13

182-542

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

- self tapping, 1/4" - 20 NC x 1/2"

2шт.

14

353-679

PLUG,Hex Soc, 1"-11 1/2 NPT

- pipe, 3/4" NPT

1шт.

15

353-406

PLUG,Dome, .625" hole, Nylon

- button, 5/8"

2шт.

16

353-405

PLUG,Dome, .562" hole, Nylon

- 9/16"

2шт.

17

353-421

PLUG,Dome, .187" hole, Nylon

2шт.

18

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3"

2шт.

19

195-2055

WASHER,17/32" x 2 1/4" x .180"

- flat, 1/2"

2шт.

20

D74446

BUSHING

- rubber mount

2шт.
