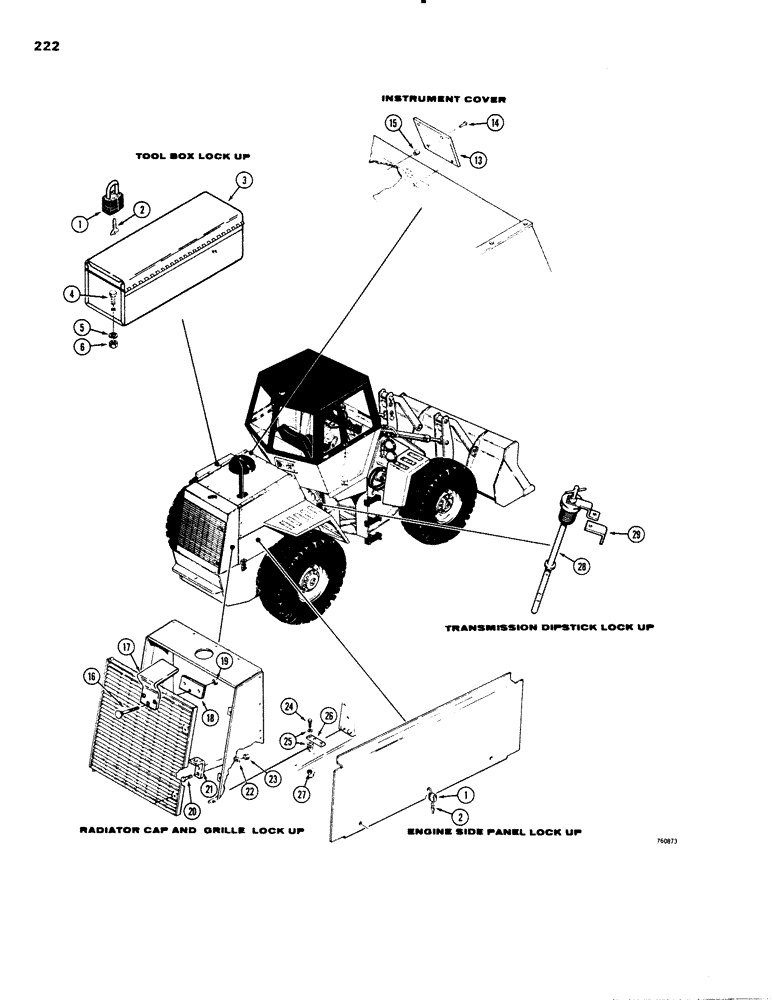

Запчасти Case W20 (222) - LOCKUP PARTS, PADLOCKS AND KEYS, TOOL BOX (09) - CHASSIS

1

R29554

LOCK

PADLOCK - tractor lockup, Includes: Ref. 2

5шт.

2

R29555

KEY

- padlock

2шт.

3

D55624

TOOL

BOX - tool

1шт.

4

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Tool box Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Tool box 1/4"

2шт.

6

25-104

NUT,1/4"-20, G5

Tool box 1/4"-20, G5

2шт.

13

L54570

COVER

- tachometer, front panel, lockup

1шт.

14

187-351

X

SCREW - self tapping (1/4" - 20 NC x 1"), tachometer lockup

4шт.

15

L72459

SPACER

- cover (13/32" long), tachometer lockup

4шт.

16

11-528

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

CARRIAGE, 5/16"-18 x 1 3/4", G2, Radiator cap lockup

3шт.

17

L50933

COVER

- radiator cap access hole, cap lockup

1шт.

18

L50932

PLATE

- cover mounting, radiator cap lockup

1шт.

19

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), radiator cap lockup

3шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Grille lockup Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

21

L50176

BRACKET - grille lock, up

1шт.

22

95-6

WASHER,3/8"

- standard wrot (), grille lockup 3/8"

2шт.

23

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC), grille lockup

2шт.

24

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4", engine side lockup

8шт.

25

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16"), engine side lockup

8шт.

26

L51011

BRACKET - engine side panel locking

2шт.

ANOTHER BRACKET USED (NOT A SUB) L104187

1шт.

27

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), engine side lockup

4шт.

28

L54054

DIPSTICK

CAP AND DIPSTICK - transmission oil fill, lockup

1шт.

29

L55049

SUPPORT

BRACKET - locking, transmission oil fill lockup

1шт.
