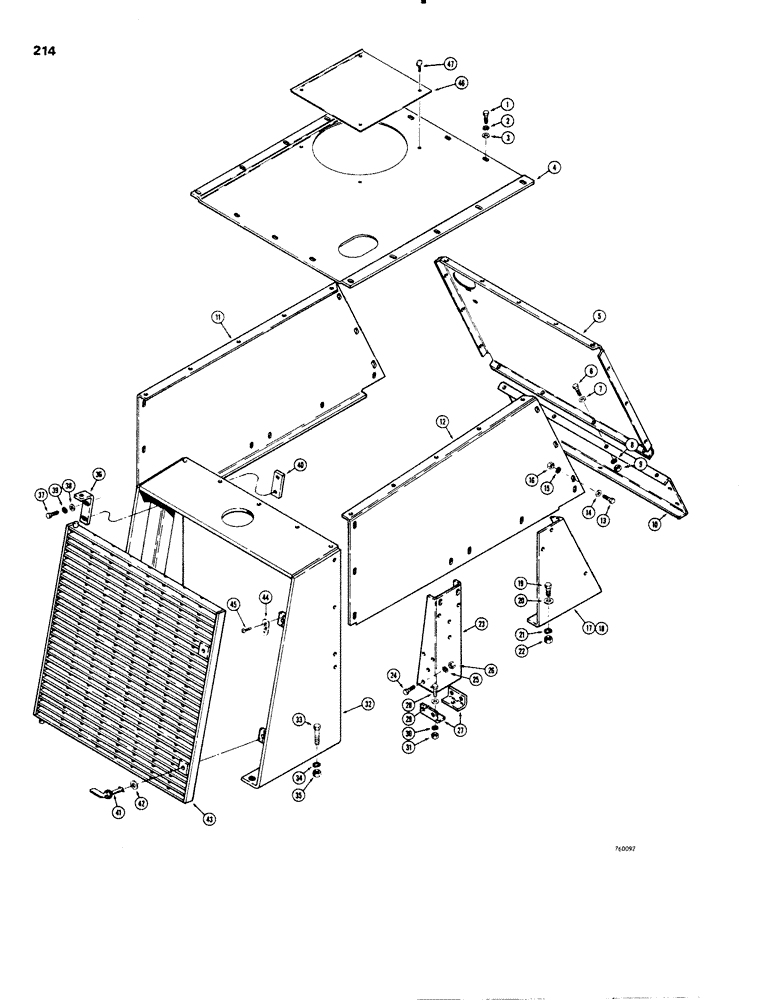

Запчасти Case W20 (214) - GRILLE AND HOOD (09) - CHASSIS

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

16шт.

2

92-6

LOCK WASHER,3/8"

16шт.

3

95-6

WASHER,3/8"

- standard wrot () 3/8"

16шт.

4

L55338

HOOD

TOP - hood

1шт.

5

L70049

PANEL - front, upper

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

7

95-6

WASHER,3/8"

- standard wrot () 3/8"

8шт.

8

92-6

LOCK WASHER,3/8"

8шт.

9

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

10

L46198

STRAP

PANEL - front, lower

1шт.

11

L47144

PANEL

SIDE PANEL - hood, R.H.

1шт.

12

L47145

PANEL

SIDE PANEL - hood, L.H.

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

18шт.

14

95-6

WASHER,3/8"

- standard wrot () 3/8"

18шт.

15

92-6

LOCK WASHER,3/8"

18шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

6шт.

17

L46196

SUPPORT - hood, R.H. (Front)

1шт.

18

L73131

POST

SUPPORT - hood, L.H. (Front) Not shown

1шт.

19

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

20

95-8

WASHER,1/2"

- std. wrought 1/2"

4шт.

21

92-8

LOCK WASHER,1/2"

4шт.

22

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

23

L74221

POST

- hood mounting, center

2шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

25

92-6

LOCK WASHER,3/8"

8шт.

26

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

27

L47950

SUPPORT

BRACKET - mounting, center, Serial Range: post-frame

4шт.

28

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

29

95-6

WASHER,3/8"

- standard wrot () 3/8"

4шт.

30

92-6

LOCK WASHER,3/8"

4шт.

31

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

32

L76791

FRAME - grille mounting

1шт.

33

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

34

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

35

25-1010

NUT,5/8"-11, G5

4шт.

36

L48386

BRACKET

SUPPORT - grille, upper

1шт.

37

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

38

95-6

WASHER,3/8"

- standard wrot () 3/8"

2шт.

39

92-6

LOCK WASHER,3/8"

2шт.

40

L48698

BLOCK ASSY.

BLOCK - tapped, grille support

1шт.

41

L55533

RETAINER

- grille

2шт.

42

L48760

WASHER

- special, grille retainer

2шт.

43

L47281

GRILLE

- radiator protecting

1шт.

44

L48759

CONNECTION,ELECTRIC

RECEPTACLE - 1/4 turn

2шт.

45

151-548

RIVET,Pop, 1/8" x .462"

- blind

4шт.

46

L55339

COVER

- air cleaner

1шт.

47

181-111

SCREW - winged, 1/4" - 20 NC x 3/4" Sq Hd, 5/8"-11 x 2 1/2"

4шт.
