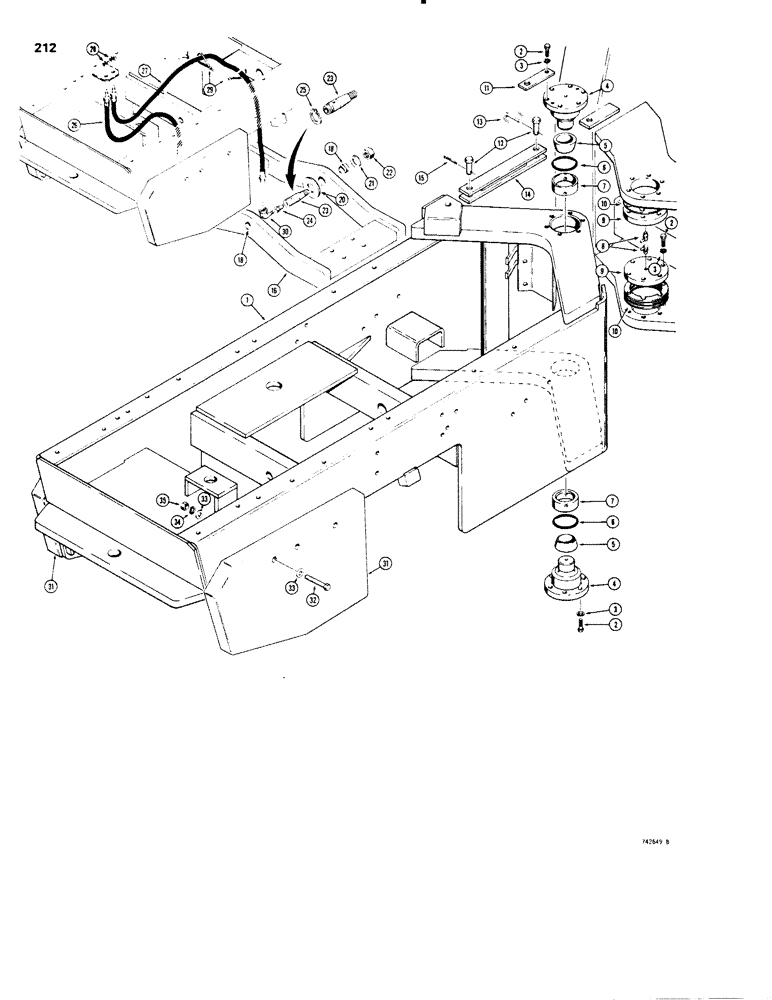

Запчасти Case W20 (212) - REAR FRAME AND TRUNNION (09) - CHASSIS

1

L76688

REAR FRAME ASSEMBLY - articulated loader

1шт.

2

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

HHCS - 5/8" - 11 NC x 2" (Spindle mounting)

24шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

24шт.

L17468

SPINDLE

ASSEMBLY - frame pivot, Includes: Ref. 4 and 5

2шт.

4

NSS

NOT SOLD SEPARAT

SPINDLE - frame pivot

1шт.

5

L17462

THRUST BEARING

- thrust, inner ring

1шт.

6

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

SEAL - "O"ring, thrust bearing at spindle

2шт.

7

L17463

THRUST BEARING

- thrust, outer ring

2шт.

8

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree (1/4" NPT)

2шт.

9

L17465

CAP

- thrust plate, spindle

2шт.

10

L17318

SHIM,113.54mm ID x 177.8mm OD x 0.56mm Thk

- .0149" thick (000MM)

1шт.

10

L17213

SHIM,113.5mm ID x 177.8mm OD x 0.91mm Thk

(0.912 mm) .0359" Thk

1шт.

10

L17212

SHIM,113.5mm ID x 177.8mm OD x 1.52mm Thk

(1.519 mm) .0598" Thk

1шт.

11

L47536

BRACKET

- storage, safety link

1шт.

12

L14050

PIN

- safety, link mounting

2шт.

13

A30338

PIN

- Klik

1шт.

14

L47533

BAR

LINK - safety, fornt to rear frame

1шт.

15

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

L58933

TRUNNION

ASSEMBLY - rear frame, Includes: Ref. 16 and 18

1шт.

16

NSS

NOT SOLD SEPARAT

TRUNNION - rear frame

1шт.

18

L71372

BUSHING,51.03mm ID x 63.65mm OD x 44.45mm L

- trunnion

2шт.

20

L47422

WASHER,51.3mm ID x 114mm OD x 6.35mm Thk

SHIM - 1/4" thick (6 mm)

1шт.

20

L47423

WASHER

SHIM - 1/8" thick (3 mm)

1шт.

20

L47424

WASHER,51.3mm ID x 114mm OD x 4.76mm Thk

SHIM - 3/16" thick (5 mm)

1шт.

21

L47224

WASHER

- special

2шт.

22

131-77

NUT,1 1/2"-12

NUT - hex., lock (1-1/2" - 12 NF)

2шт.

23

L73076

PIVOT

PIN - trunnion pivot

2шт.

24

L52499

BOLT

FITTING - special

2шт.

25

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

26

L54693

HOSE

ASSEMBLY - grease, 27" long (686 mm)

1шт.

27

L54694

HOSE,4.8mm ID x 1041mm L

ASSEMBLY - grease, 41" long (1041 mm)

1шт.

28

F53473

LOCK NUT,1/8-27 NPSM

- lock

2шт.

29

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - grease hose retaining

2шт.

30

219-402

ADAPTER,90 Degree, 1/4"-1/8 NPTF

ELBOW - 90 degree street, special

2шт.

31

L77018

COUNTERWEIGHT - rear frame

2шт.

32

13-16112

BOLT,Hex, 1" - 8 x 7", Gr 5

Counterweight Hex, 1"-8 x 7", G5

4шт.

33

195-53

WASHER,1" x 2" x .134"

- plain (1"), counterweight

8шт.

34

92-16

LOCK WASHER,1"

WASHER, LOCK, , Counterweight 1"

4шт.

35

25-1016

NUT,1"-8, G5

Counterweight 1"-8, G5

4шт.
