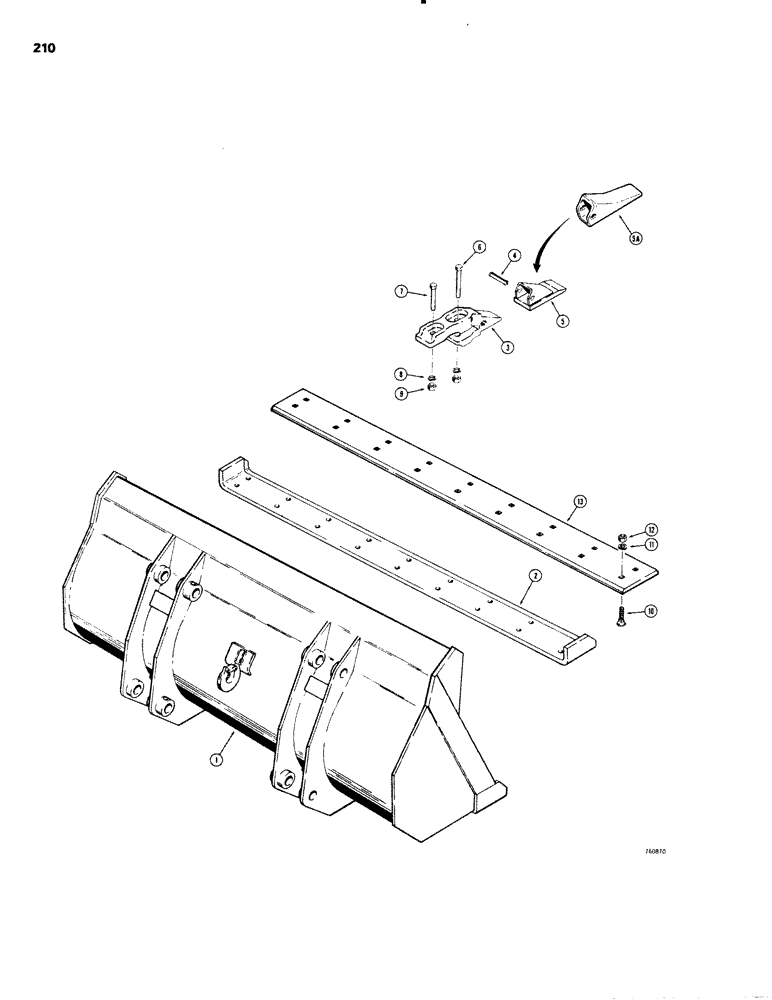

Запчасти Case W20 (210) - LOADER BUCKET, 2 CU. YD. BUCKET (92.6" WIDE), (1.53 CUBIC METER-2352MM) (09) - CHASSIS

L76758

BUCKET ASSEMBLY - loader, machinery item - see figure 2 for ordering, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 2 cu. yd.

1шт.

2

L46613

BLADE

CUTTING EDGE - bucket

1шт.

L48497

TOOTH

ASSEMBLY - bucket, Includes: Ref. 3 - 5

9шт.

3

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket

1шт.

4

D39448

PIN

FLEX PIN - tooth, bucket

1шт.

5

D39090

POINT

- tooth (Fabricated), bucket

1шт.

5a

L55608

POINT

- tooth (Forged), bucket

9шт.

6

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

Bucket teeth Hex, 5/8"-11 x 3 1/4", G5

9шт.

7

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 2-3/4", bucket teeth

9шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Bucket teeth 5/8"

18шт.

9

25-1010

NUT,5/8"-11, G5

Bucket teeth 5/8"-11, G5

18шт.

10

19-1040

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/2", Gr 5

BOLT - plow, 5/8" - 11 NC x 2-1/2", on cutting edge

18шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Bolt on cutting edge 5/8"

18шт.

12

25-1010

NUT,5/8"-11, G5

Bolt on cutting edge 5/8"-11, G5

18шт.

13

L76611

EDGE

CUTTING EDGE, bolt

1шт.
