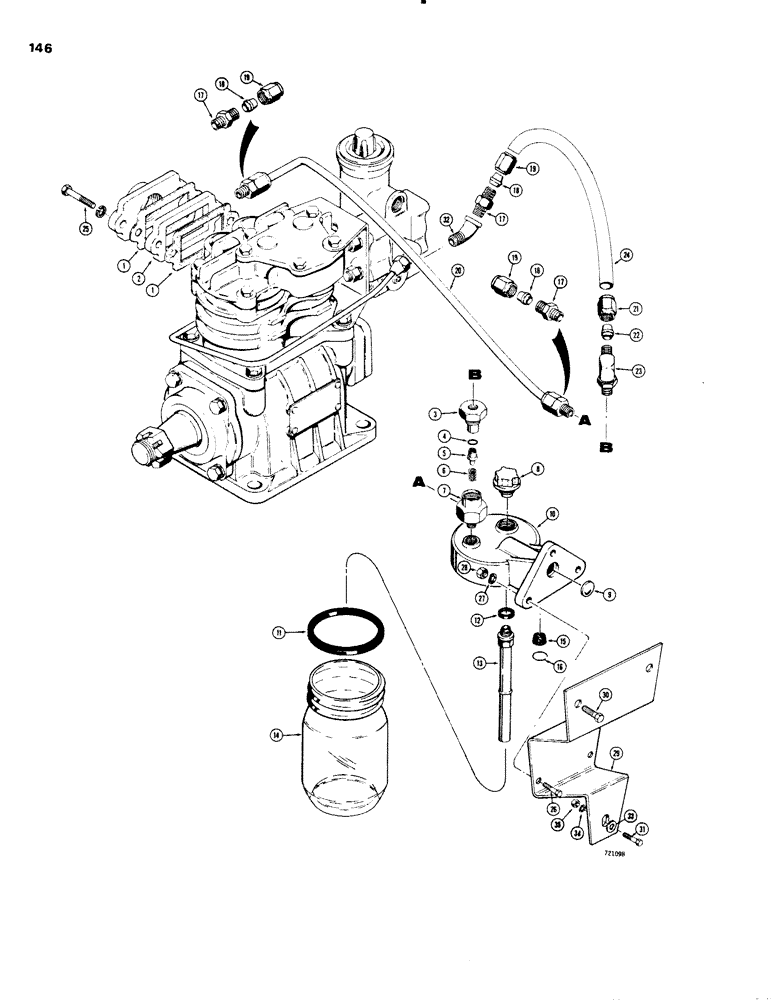

Запчасти Case W20 (146) - ALCOHOL EVAPORATOR (09) - CHASSIS

L73283

KIT

EVAPORATOR ASSEMBLY - alcohol, Tru Flo 400, Includes: Ref. 1 - 35

1шт.

L46372

KIT

- alcohol evaporator, Includes: Ref. 1 - 16

1шт.

1

L31457

GASKET

- adapter

2шт.

2

L32930

ADAPTER

- compressor

1шт.

L33157

VALVE

ASSEMBLY - check, at evaporator, Includes: Ref. 3 - 7

1шт.

3

L33162

NUT

- cap

1шт.

4

L33161

O-RING,0.299" ID x 0.072" Width

GROMMET - valve

1шт.

5

L33160

VALVE

- check

1шт.

6

L33159

SPRING

- valve

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

L33145

EVAPORATOR

ASSEMBLY - alcohol, Includes: Ref. 8 - 16

1шт.

8

L33151

PLUG

- filler

1шт.

9

L33155

PLUG

- expansion, steel

1шт.

10

L33146

BODY

- alcohol evaporator

1шт.

11

L33153

SEALING RING

-, Serial Range: housing-jar

1шт.

12

L33156

RING

- sealing, evaporator tube

1шт.

13

L33152

TUBE,0.25" ID x 0.33" OD x 4.87" L

- evaporator

1шт.

14

L33154

RESERVOIR

JAR - alcohol evaporator, plastic

1шт.

15

L33150

FILTER

- air intake

1шт.

16

A58439

RETAINER

RING - retaining, filter

1шт.

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

FITTING ASSEMBLY - flex tube, Includes: Ref. 17 - 19

3шт.

17

NSS

NOT SOLD SEPARAT

BODY - flex tube

1шт.

18

222-5047

SLEEVE,1/4" Tube

1шт.

19

222-5060

NUT,1/2"-20

NUT

1шт.

20

L46110

TUBE,17" L

- alcohol evaporator to governor

1шт.

222-5023

ELBOW,90º, 1/2"-20 x 1/8" NPT, Hi-seal

FITTING ASSEMBLY - flex tube, 90 degree, Includes: Ref. 21 - 23

1шт.

21

222-5060

NUT,1/2"-20

NUT

1шт.

22

222-5047

SLEEVE,1/4" Tube

Includes: Ref. 23

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - 90 degree

1шт.

24

L48192

TUBE,0.25" OD

- check valve to governor

1шт.

25

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

(Cadmium plated) Hex, 5/16"-18 x 1 1/2", G5

2шт.

26

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

(Evaporator to mounting bracket) Hex, 1/4"-20 x 7/8", G5, Full Thd

3шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

28

25-104

NUT,1/4"-20, G5

3шт.

29

L46593

BRACKET

- evaporator mounting

1шт.

30

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Bracket mounting) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

31

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Bracket mounting Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

32

221-401

ELBOW,45 Degree, 1/8"-27, NPT

- street, 45 degree

1шт.

33

95-6

WASHER,3/8"

- standard wrot () 3/8"

1шт.

34

92-6

LOCK WASHER,3/8"

1шт.

35

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.
