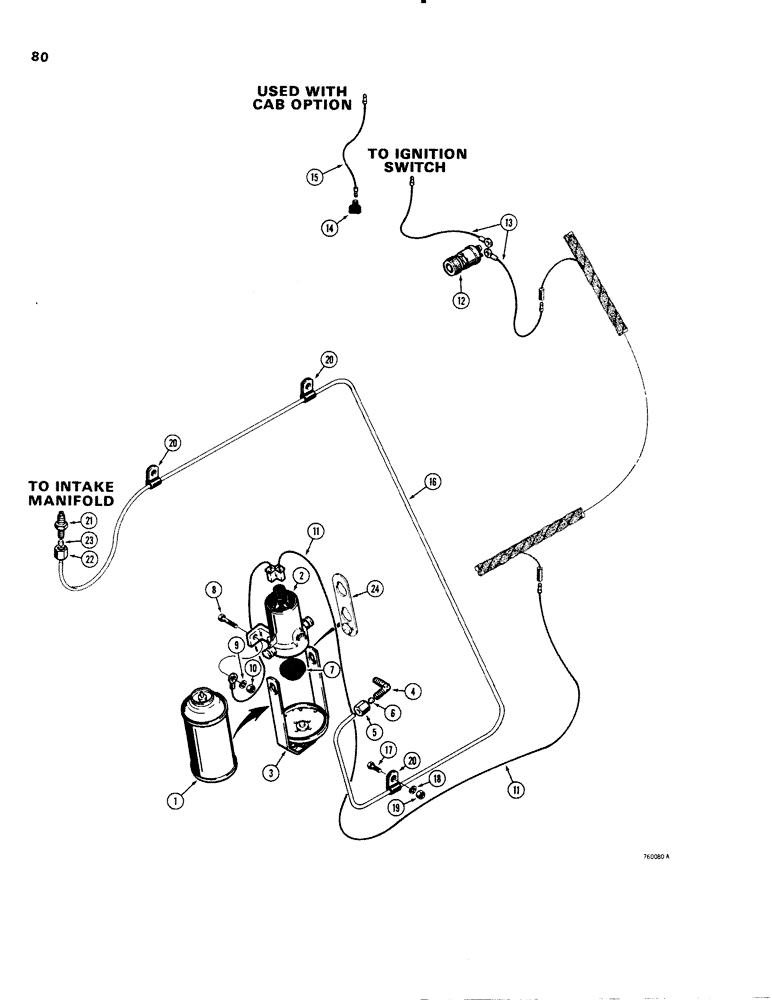

Запчасти Case W20 (080) - COLD START SYSTEM (09) - CHASSIS

1

B17072

START SPRAY FLUID

CYLINDER - ether

1шт.

L73025

STARTING MOTOR

SOLENOID ASSEMBLY - 24V, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

SOLENOID

1шт.

3

A45687

CLAMP

BAIL

1шт.

4

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Special 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

5

222-110

TUBE NUT,3/8"-24

NUT - compression

1шт.

6

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression

1шт.

7

R30786

GASKET

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" - 18 NC

2шт.

11

L73023

ELECTRICAL WIRE

WIRE - jumper

1шт.

12

L72776

SWITCH

- push button

1шт.

13

A18112

ELECTRICAL WIRE

WIRE - jump

2шт.

14

A8210

CONNECTOR, ELEC

CONNECTOR - electrical, 3-way (If used)

1шт.

15

L58674

ELECTRICAL WIRE

WIRE - jumper, if used

1шт.

16

D35090

TUBE

- nylon

1шт.

17

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

2шт.

20

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- "P" style

3шт.

L73024

NOZZLE CAP

NOZZLE ASSEMBLY, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

NOZZLE

1шт.

22

222-110

TUBE NUT,3/8"-24

NUT - compression

1шт.

23

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression

1шт.

24

R30812

LINK

- bail

2шт.
