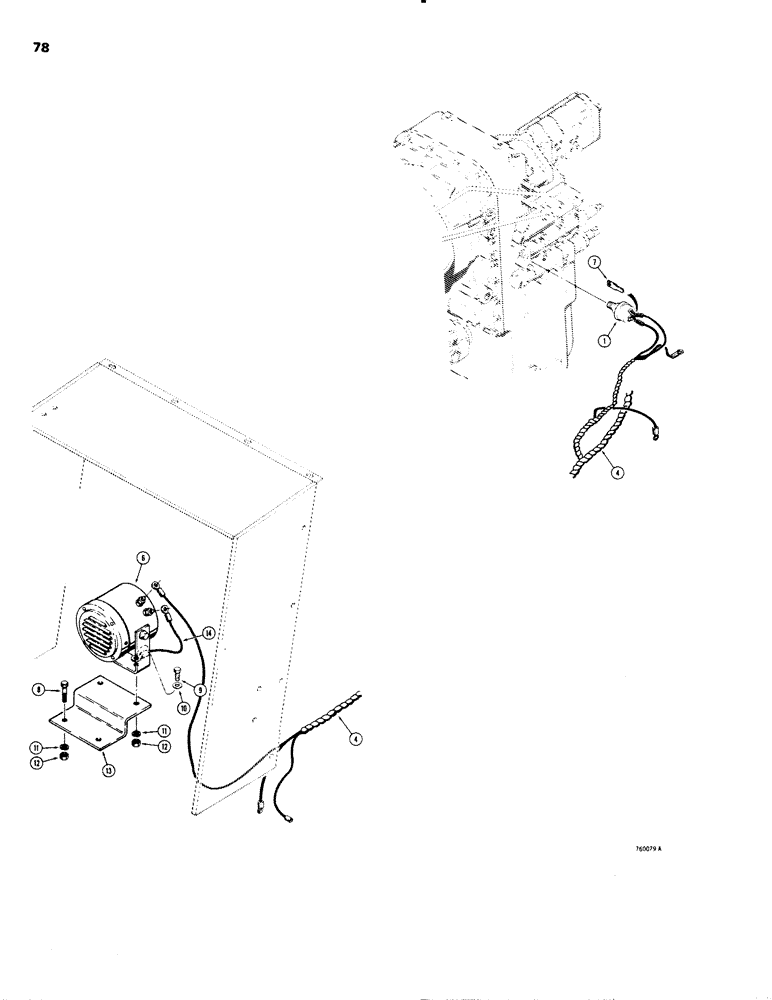

Запчасти Case W20 (078) - BACKUP ALARM (09) - CHASSIS

1

L57459

SWITCH

- backup alarm

1шт.

4

REF

INSTRUCTION

HARNESS - rear, see figure 62

1шт.

6

L70498

ALARM

ASSEMBLY - back-up

1шт.

7

L59682

TERMINAL CONNECTOR

TERMINAL - eyelet (Harness only)

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

10

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

4шт.

13

L71647

BRACKET

MOUNT - alarm

1шт.

14

L59563

ELECTRICAL WIRE

WIRE - ground

1шт.
