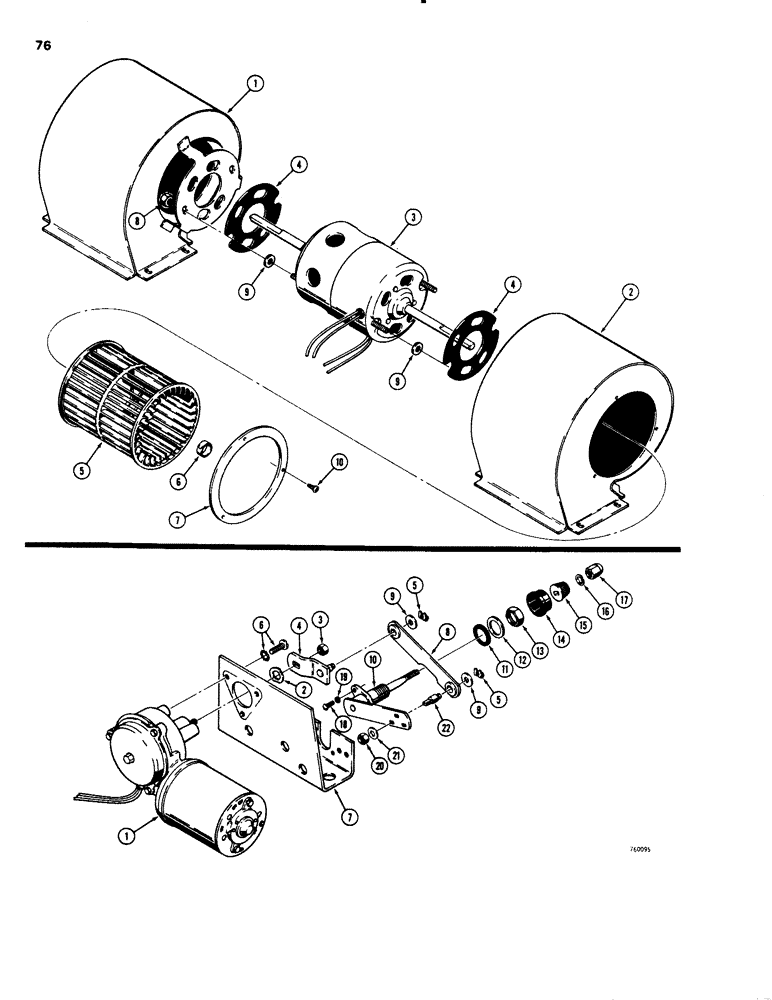

Запчасти Case W20 (076) - D71529 BLOWER (09) - CHASSIS

D71529

HEATER

BLOWER ASSEMBLY - cab, Includes: Ref. 1 - 10

1шт.

1

D72757

HOUSING

- blower, L.H.

1шт.

2

D72758

HOUSING

- blower, R.H.

1шт.

3

D72759

MOTOR, ELECTRIC

MOTOR - blower, 24V

1шт.

4

D72760

GASKET

- motor

2шт.

5

D72761

FAN

- blower

2шт.

6

D72762

HOSE CLAMP

CLIP - ring, fan retaining

2шт.

7

D72763

RING

- inlet

2шт.

8

129-37

NUT,#10-32

4шт.

9

195-513

WASHER,#10

- flat, , plated #10

4шт.

10

168-66

DRIVE SCREW,Type U, Rnd Hd, #6 x 1/4"

- self-tapping, #6

6шт.

L35259

WIPER MOTOR

MOTOR - wiper, front (Bullet connectors) Use F93455, L35259

1шт.

F93455

MOTOR, ELECTRIC

MOTOR - wiper, front (Spade connectors), L35259 and F93455, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR - 24V, L35259 and F93455 wipers, Includes: Ref. 2 - 3

1шт.

2

F44453

WASHER

- wave, L35259 and F93455 wipers

1шт.

3

193-1001

NUT,Keps, w/LW, 1/4"-28

AND EXTERNAL WASHER - 1/4" - 28 NF, L35259 and F93455 wipers

1шт.

4

A36091

ARM

- drive, L35259 and F93455 wipers

1шт.

5

D71414

CLIP

- spring, L35259 and F93455 wipers

2шт.

6

D72849

SCREW

AND WASHER - #10 - 32 NF, L35259 and F93455 wipers

2шт.

7

D72850

BRACKET

L35259 and F93455 wipers

1шт.

8

D71427

LINK,85.85mm L

L35259 and F93455 wipers

1шт.

9

A22431

WASHER

SPACER - washer, L35259 and F93455 wipers

2шт.

D72848

SHAFT

AND PIVOT, L35259 and F93455 wipers, Includes: Ref. 10 - 17

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT, L35259 and F93455 wipers

1шт.

11

D71417

SPECIAL WASHER

WASHER - felt, L35259 and F93455 wipers

1шт.

12

D71418

WASHER

- flat, L35259 and F93455 wipers

1шт.

13

D71419

NUT

L35259 and F93455 wipers

1шт.

14

D71420

CAP

BOOT - rubber, L35259 and F93455 wipers

1шт.

15

D71421

TOOL

DRIVER, L35259 and F93455 wipers

1шт.

16

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER - sect. lock, 5/16", L35259 and F93455 wipers

1шт.

17

D71422

NUT

- cap, L35259 and F93455 wipers

1шт.

18

F44456

SCREW,0.19" - 32 x 3 3/4"

- round head slotted, #10 -32 NF x 3/8" plated, L35259 and F93455 wipers, Includes: Ref. 19

2шт.

19

92-3

LOCK WASHER,#10

WASHER, LOCK, , L35259 and F93455 wipers #10

1шт.

20

425-154

JAM NUT,Jam, 1/4"-28, G5

L35259 and F93455 wipers Jam, 1/4"-28, G5

1шт.

21

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER - flat, 1/4" plated, L35259 and F93455 wipers

1шт.

22

D73642

PIN

PIN - threaded, L35259 and F93455 wipers

1шт.
