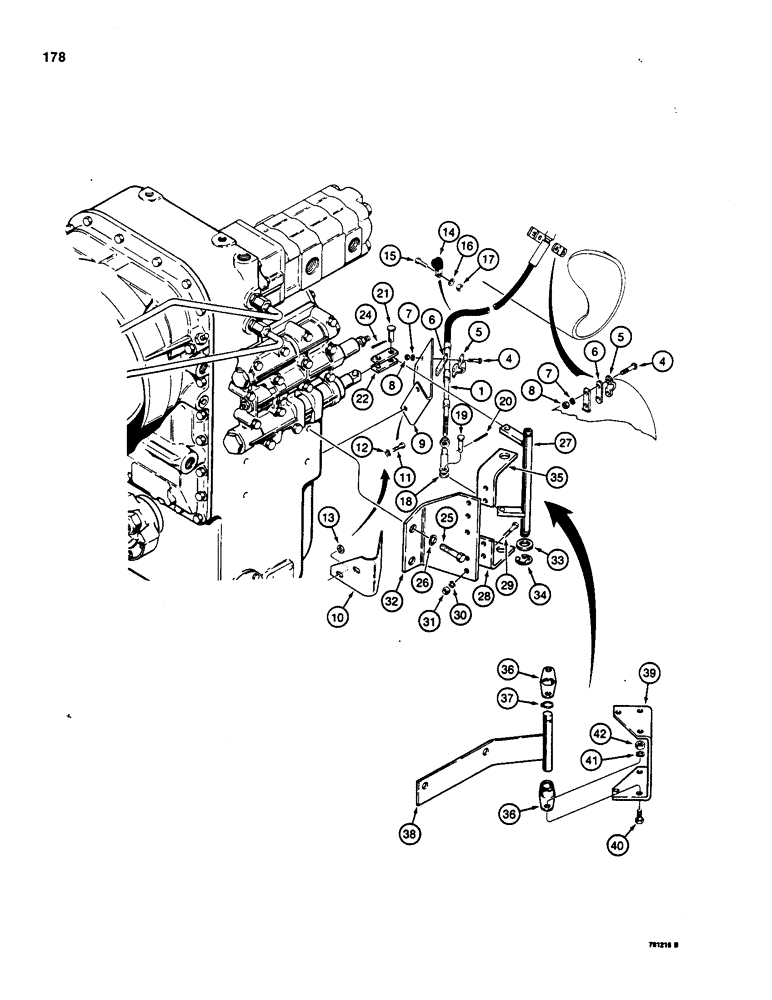

Запчасти Case W20 (178) - TRANSMISSION CONTROL PARTS, CABLE AND CABLE MOUNTING (06) - POWER TRAIN

1

L47901

CABLE

ASSEMBLY - transmission shift control

1шт.

4

163-13

SCREW,Hex, #10 - 24 x 3/4"

MACHINE SCREW - hex head, No. 10 - 24 NC x 3/4"

4шт.

5

L40314

CLAMP

- transmission shift control cable

2шт.

6

L40315

SHIM,5.55mm ID x 12.7mm OD x 2.28mm Thk

- cable clamping

2шт.

7

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

8

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 24 NC

4шт.

9

L48449

BRACKET

- cable mount, used before W18 and W20 tractor SN 9129842 and before W20B tractor SN 9130361

1шт.

10

L109580

BRACKET

- cable mount, used on W18 and W20 tractor SN 9129842 and after and W20B tractor SN 9130361 and after

1шт.

11

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

14

49838

CLAMP

- hose

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

18

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - cable end

1шт.

19

141-2

CLEVIS PIN,1/4" x .770"

- 1/4"

1шт.

20

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

1шт.

21

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

22

L47832

LINK

- transmission control, at transmission

2шт.

24

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

25

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

27

L57835

CRANK LEVER

BELLCRANK - transmission control, used before W18 and W20 tractor sn 9129842 except 9129823 and before W20B tractor sn 9130361

1шт.

28

L51603

BRACKET

- bellcrank, lower, used before W18 and W20 tractor sn 9129842 except 9129823 and before W20B tractor sn 9130361

1шт.

29

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4", used before W18 and W20 tractor sn 9129842 except 9129823 and before W20B tractor sn 9130361

4шт.

30

92-5

LOCK WASHER,5/16"

used before W18 and W20 tractor S/N 9129842 except 9129823 and before W20B tractor S/N 9130361 5/16"

4шт.

31

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, used before W18 and W20 tractor sn 9129842 except 9129823 and before W20B tractor sn 9130361

4шт.

32

L52490

BRACKET

- transmission shifting parts, used before W18 and W20 tractor sn 9129842 except 9129823 and before W20B tractor sn 9130361

1шт.

33

A26376

WASHER

- special, used before W18 and W20 tractor sn 9129842 except 9129823 and before W20B tractor sn 9130361

2шт.

34

A31191

CIRCLIP

RETAINING RING - bellcrank, used before W18 and W20 tractor sn 9129842 except 9129823 and before W20B tractor sn 9130361

2шт.

35

L51603

BRACKET

- bellcrank, upper, used before W18 and W20 tractor sn 9129842 except 9129823 and before W20B tractor sn 9130361

1шт.

36

L48412

FLANGED BEARING

BEARING - self-aligning, used on W18 and W20 tractor sn 9129823 and 9129842 and after and on W20B tractor sn 9130361 and after

2шт.

37

T25683

SNAP RING,#75, Ext

Ring, Snap, , used on W18 and W20 tractor sn 9129823 and 9129842 and after and on W20B tractor sn 9130361 and after #75, Ext

1шт.

38

L77843

PLATE

BELLCRANK - transmission control, used on W18 and W20 tractor sn 9129823 and 9129842 and after and on W20B tractor sn 9130361 and after

1шт.

39

L77844

LARGE PLATE

PLATE - pivot, used on W18 and W20 tractor sn 9129823 and 9129842 and after and on W20B tractor sn 9130361 and after

1шт.

40

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Used on W18 and W20 tractor S/N 9129823 and 9129842 and after and on W20B tractor S/N 9130361 and after Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

41

92-5

LOCK WASHER,5/16"

used on W18 and W20 tractor S/N 9129823 and 9129842 and after and on W20B tractor S/N 9130361 and after 5/16"

4шт.

42

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, used on W18 and W20 tractor sn 9129823 and 9129842 and after and on W20B tractor sn 9130361 and after

4шт.
