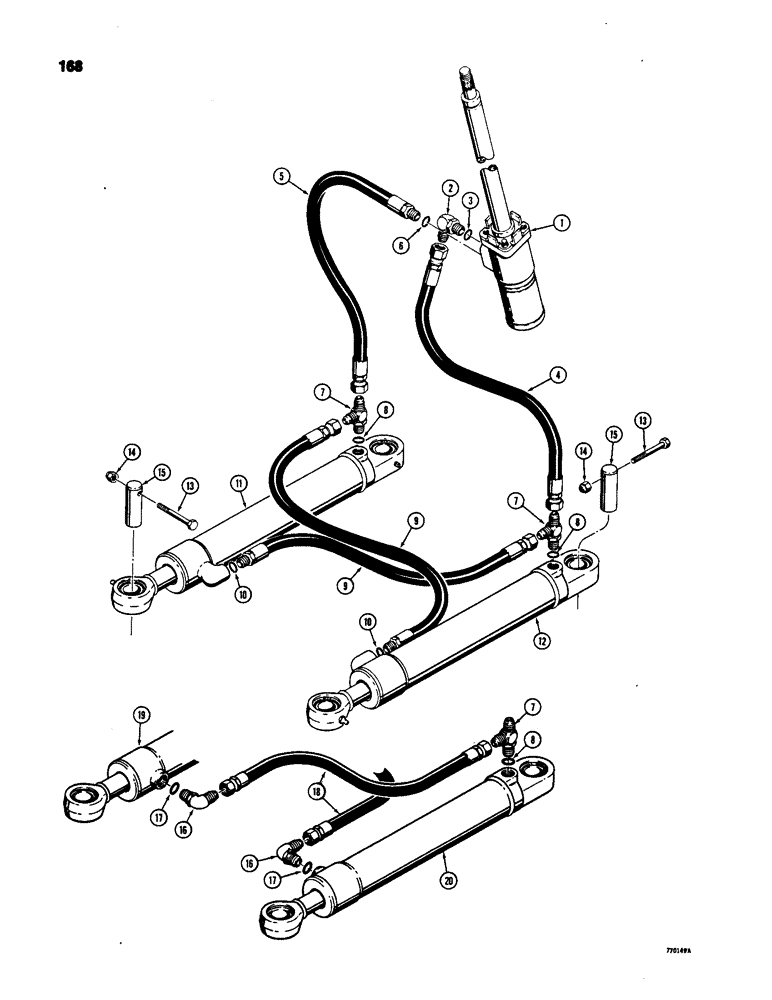

Запчасти Case W20 (168) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS (05) - STEERING

1

REF

INSTRUCTION

CONTROL VALVE - steering, see Figure 146 or 148 for the correct assembly and components

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Includes: Ref. 3 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

4

L50016

HOSE

- right-hand, 25" (889 mm) long

1шт.

5

L50015

HOSE

- left-hand, 30" (762 mm) long

1шт.

6

218-506

90 ELBOW,7/16" - Male JIC x 1.8" - 27 Male NPTF

O-RING - hose

1шт.

7

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - adjustable, Includes: Ref. 8

2шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

9

L47884

HOSE

- 35-1/2" (902 mm) long, used with G34301 and G34300 cylinders

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose, used with G34301 and G34300 cylinder

2шт.

11

G34301

STEERING CYLINDER

CYLINDER - left-hand steering, see Figure 170

1шт.

12

G34300

CYLINDER

- right-hand steering, see Figure 170

1шт.

13

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- hex head, 3/8" - 16 NC x 3-3/4"

4шт.

14

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

15

L47952

PIN,34.91mm OD x 95.25mm L

- cylinder mounting

4шт.

16

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, used with G101274 and G101275 cylinders, Incl. Ref. 17

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow, used with G101274 and G101275 cylinders

1шт.

18

37405

HOSE

- 36" (914 mm) long, used with G101274 and G101275 cylinders

2шт.

19

G101275

CYLINDER

- left-hand steering, see Figure 172

1шт.

20

G101274

CYLINDER

- right-hand steering, see Figure 172

1шт.
