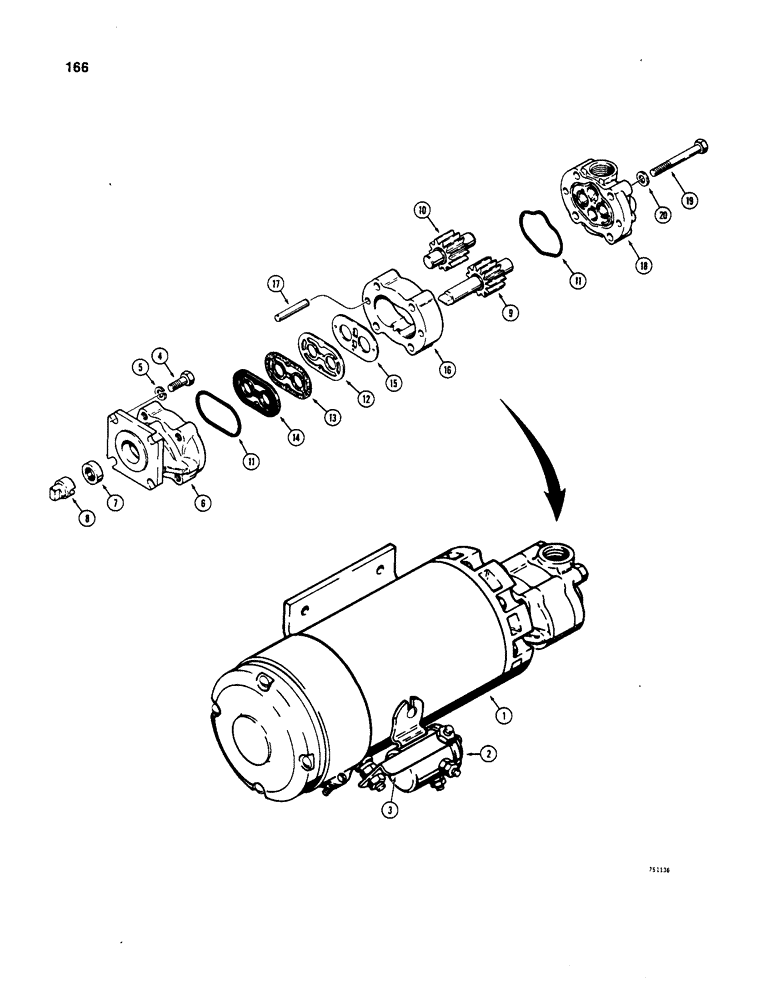

Запчасти Case W20 (166) - L70813 AUXILIARY STEERING PUMP AND MOTOR (05) - STEERING

L70813

HYDRAULIC STEERING

PUMP AND MOTOR - auxiliary steering, Includes: Ref. 1 - 20

1шт.

1

D71479

MOTOR, ELECTRIC

MOTOR - electric, parts list Figure 124

1шт.

2

D73638

SOLENOID

- electric motor, parts list Figure 124

1шт.

3

D71481

CONNECTOR, ELEC

STRAP - solenoid mounting

1шт.

4

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

5

92-5

LOCK WASHER,5/16"

4шт.

D71482

PUMP

ASSEMBLY - steering, Includes: Ref. 6 - 20

1шт.

6

D71496

COVER

- front

1шт.

7

C15735

SEAL

- front cover

1шт.

8

D71498

COUPLING

- pump drive

1шт.

9

D71497

PINION

DRIVE GEAR - pump

1шт.

10

C15731

GEAR

DRIVEN GEAR - pump

1шт.

11

C15732

SNAP RING

O-RING - seal

2шт.

12

C15738

SHIELD

HEAT SHIELD - pump

1шт.

13

C15739

GASKET

- pump

1шт.

14

C15740

SEAL ASSY.

SEAL - V-type

1шт.

15

C15737

PLATE

WEAR PLATE - pump

1шт.

16

C15733

SECTION - center

1шт.

17

F53109

DOWEL

PIN - pump

2шт.

18

C15730

COVER

- back

1шт.

19

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

4шт.

20

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.
