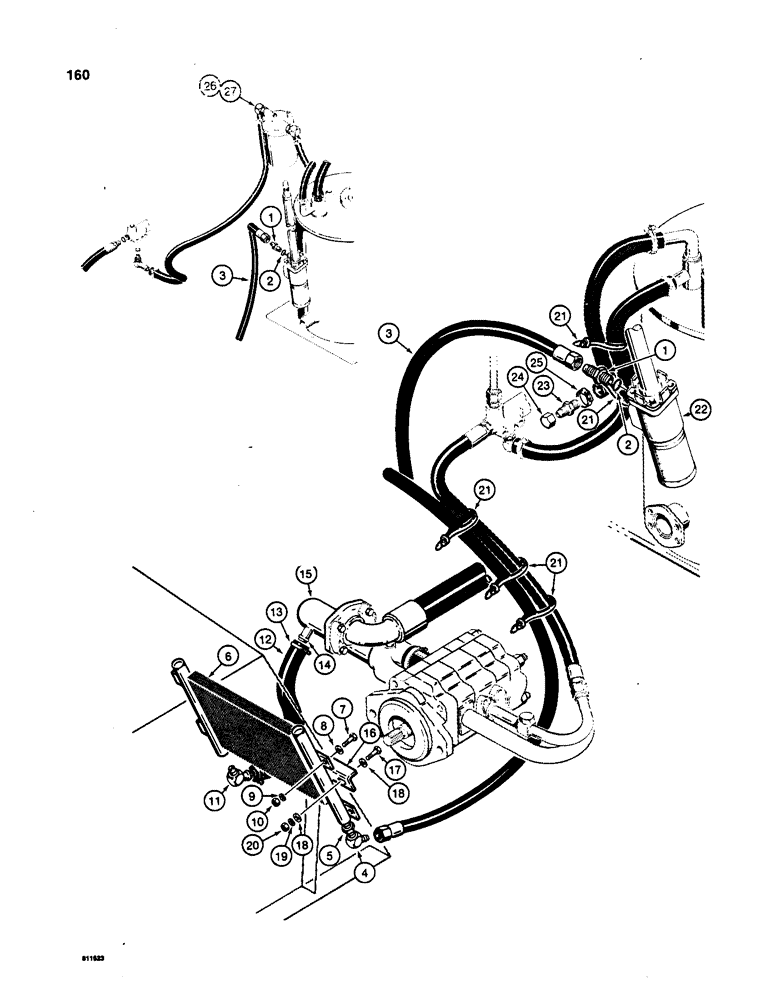

Запчасти Case W20 (160) - HYDRAULIC OIL COOLER WITHOUT AUXILIARY STEERING (05) - STEERING

1

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, Includes: Ref. 2

1шт.

2

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

3

L108734

HOSE - steering, Serial Range: valve-cooler

1шт.

4

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- 45 degree

1шт.

5

221-1604

REDUCER,Hex, 1" x 3/4" NPT

- straight

1шт.

6

L107484

COOLER

OIL COOLER - hydraulic

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

8

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

25-106

NUT,3/8"-16, G5

- HEX, 3/8" - 16 NC

4шт.

11

217-146

ELBOW,45 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM FITTING - 45 degree

1шт.

12

L70286

HOSE,1.00" ID x 18.00"

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

14

L51067

TUBE - weld on, order L109385 tube

1шт.

15

L109385

TUBE ASSY.,5.2" L

TUBE - suction

1шт.

16

L108855

BRACKET - stiffener

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

18

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-1069

NUT - hex, 3/8" - 16 NC

2шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - plastic

5шт.

22

REF

INSTRUCTION

CONTROL VALVE - steering, see Figure 146 or 148 for the correct assembly and components

1шт.

23

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

ADAPTER - straight, special parts for tractors with hydraulic oil reservoir with internal filter

1шт.

24

221-526

CAP

- adapter, specail parts for tractors with hydraulic oil reservoir with internal filter

1шт.

25

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

special parts for tractors with hydraulic oil reservoir with internal filter #24, 1.06/2.00 Type F Worm

1шт.

26

217-362

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW - 90 degree, special parts for tractors with external hydraulic oil filter, Includes: Ref. 27

1шт.

27

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow, special parts for tractors with external hydraulic oil filter

1шт.
