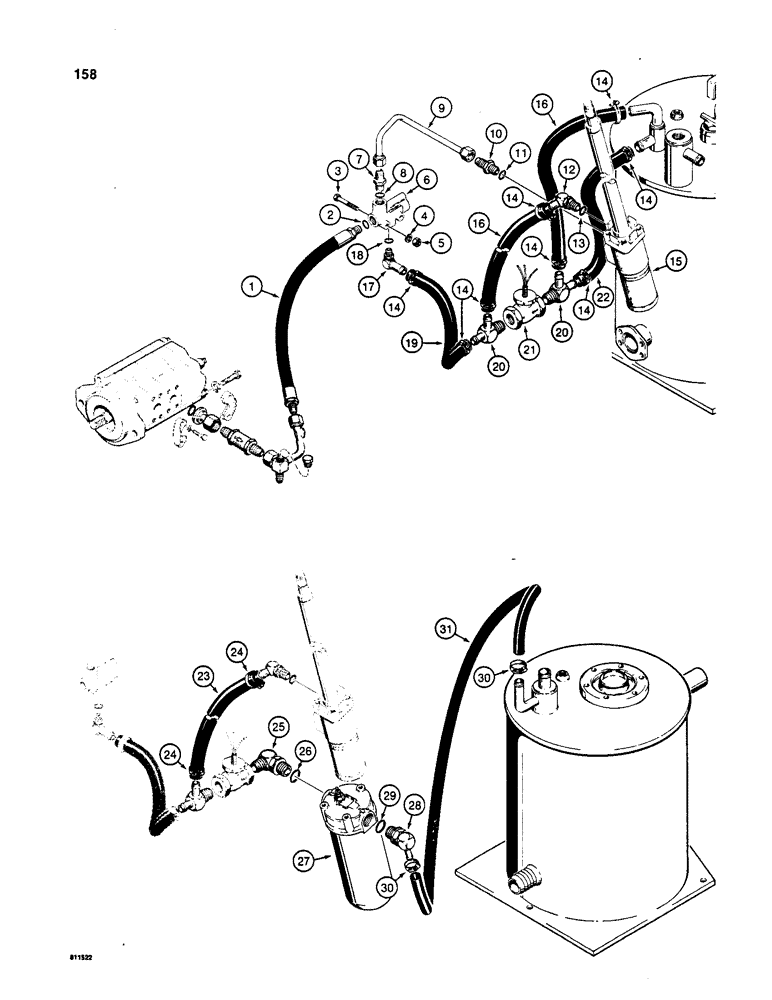

Запчасти Case W20 (158) - AUXILIARY STEERING HYDRAULIC CIRCUIT, FLOW CONTROL VALVE TO RESEVOIR (05) - STEERING

1

L50010

HOSE

- 36-1/2" (927 mm) long

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose

1шт.

3

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

4

92-5

LOCK WASHER,5/16"

1шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

6

L51457

VALVE

ASSEMBLY - flow control, parts list Figure 164

1шт.

7

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

9

L50026

TUBE,0.625" OD

- flow divider valve to steering gear

1шт.

10

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , male, straight, Incl. Ref. 11 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

12

217-321

FITTING,45 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

STEM FITTING - 45 degree, Includes: Ref. 13

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, stem fitting

1шт.

14

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

8шт.

15

REF

INSTRUCTION

VALVE ASSEMBLY - steering control, see Figure 146 or 148 for correct assembly and components

1шт.

16

R21518

LARGE HOSE

HOSE - 3/4" (19 mm) ID x 12" (305 mm) long

2шт.

17

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

STEM FITTING - 90 degree, Includes: Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- stem fitting

1шт.

19

D95236

HOSE

- 3/4" (19 mm) ID x 9" (229 mm) long

1шт.

20

D65489

FITTING

TEE - hose stem

2шт.

21

L58400

PRESSURE SWITCH

SWITCH - flow control

1шт.

22

D24728

HOSE

- 3/4" (19 mm) ID x 4-1/2" (114 mm) long

1шт.

23

L53571

HOSE ASSY.

HOSE - steering valve to switch, 3/4" ID (19 mm) x 16" (406 mm) long, special parts used on tractors with external hydraulic filter only

1шт.

24

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

special parts used on tractors with external hydraulic filter only #24, 1.06/2.00 Type F Worm

2шт.

25

218-5307

FITTING

ELBOW - 90 degree, adjustable, special parts used on tractors with external hydraulic filter only, Includes: Ref. 26

1шт.

26

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow, special parts used on tractors with external hydraulic filter only

1шт.

27

REF

INSTRUCTION

FILTER - steering, parts list Figure 154, special parts used on tractors with external hydraulic filter only

1шт.

28

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

STEM FITTING - 90 degree, special parts used on tractors with external hydraulic filter only, Includes: Ref. 29

1шт.

29

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- stem fitting, special parts used on tractors with external hydraulic filter only

1шт.

30

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

special parts used on tractors with external hydraulic filter only #24, 1.06/2.00 Type F Worm

2шт.

31

D36798

HOSE

- filter to hydraulic reservoir, 1" (25 mm) ID x 10-5/8" (270 mm) long, special parts used on tractors with external

1шт.
