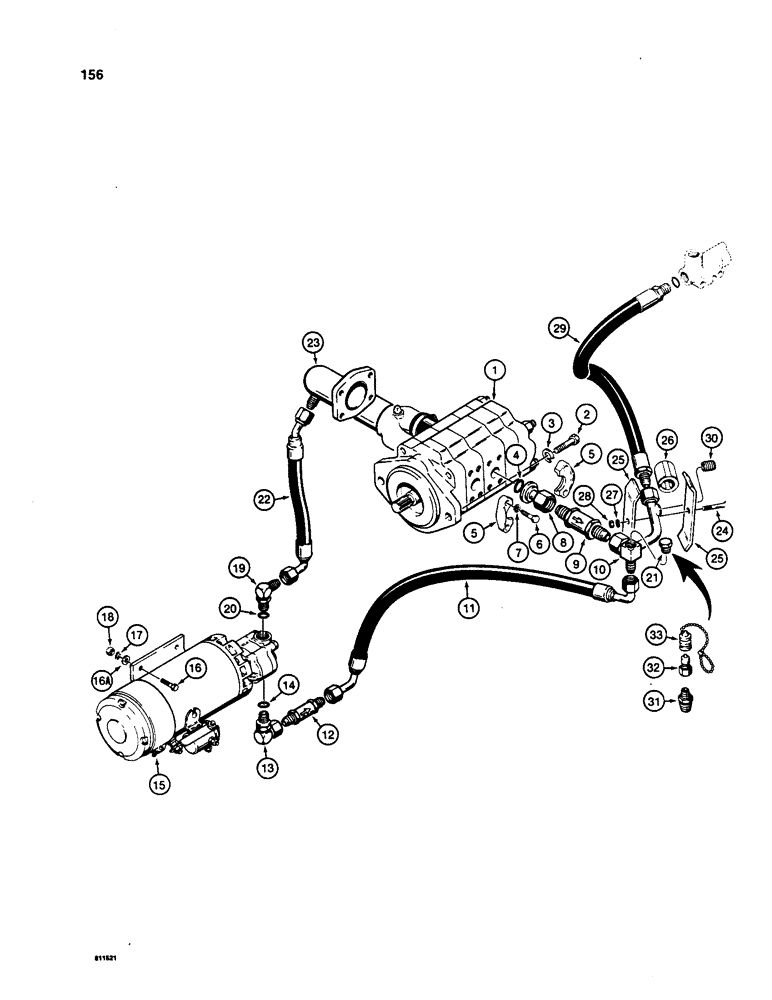

Запчасти Case W20 (156) - AUXILIARY STEERING HYDRAULIC CIRCUIT, PUMP TO FLOW CONTROL VALVE (05) - STEERING

1

L26895

PUMP

HYDRAULIC PUMP - parts list Figure 174

1шт.

L26895R

REMAN-HYD PUMP

W18, W20, W20B all CASE WHEEL LOADER (S/N 9123140 & AFTER) (NORTH AMERICA)

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

The hose w/ clamp that is on the side of #1 and connects to #23 is located on Figure 312 for p/n's.

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- flange

1шт.

5

A16961

FLANGE

SPLIT FLANGE - tube

2шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

L59340

TUBE,0.75" OD x 1.5" L

- pump to valve, at pump

1шт.

9

L58391

VALVE

CHECK VALVE - steering

1шт.

10

L106454

TUBE,0.75" OD x 5.11, 4.28" L

- hydraulic

1шт.

11

L59046

HOSE

- 34" (864 mm) long

1шт.

12

L70819

VALVE

CHECK VALVE - steering

1шт.

13

218-5460

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref. 14

1шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

15

L70813

HYDRAULIC STEERING

PUMP AND MOTOR - auxiliary steering, parts list Figure 166

1шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4"

4шт.

16a

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

21

221-655

PLUG,Hex Hd, 3/4"-14

- hex head, 1/4" NPT, if used

1шт.

22

L73208

HOSE

- suction

1шт.

23

L59052

TUBE,10.19, 4.2" L

- suction

1шт.

The hose w/ clamp that is on the side of #1 and connects to #23 is located on Figure 312 for p/n's.

1шт.

24

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

25

L47503

BRACKET

CLAMP - tube

2шт.

26

L47487

BUSHING

SPACER - tube clamp

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

29

L50010

HOSE

- 36-1/2" (927 mm) long

1шт.

30

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - tube, if used

1шт.

31

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

FITTING straight

1шт.

32

S206607

DISC

COUPLING - male

1шт.

33

S206608

CAP

- dust

1шт.
