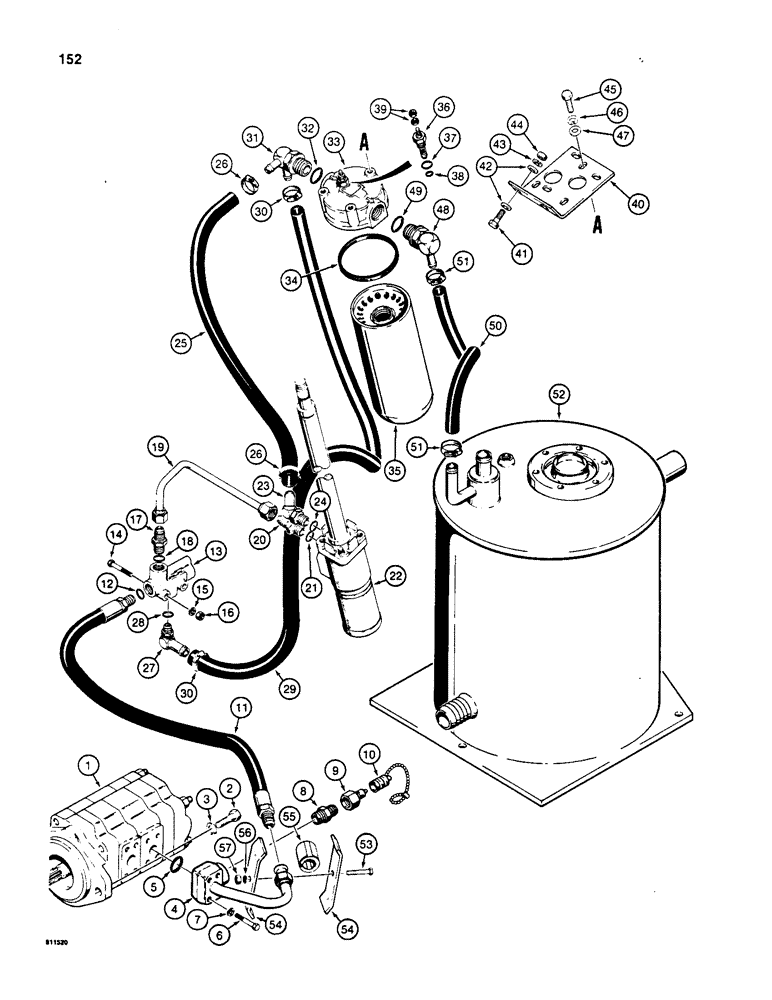

Запчасти Case W20 (152) - STEERING HYDRAULIC CIRCUIT - PUMP TO RESRVOIR, MODELS WITHOUT AUXILLIARY STEERING (05) - STEERING

1

L26895

PUMP

- hydraulic, parts list Figure 174

1шт.

L26895R

REMAN-HYD PUMP

W18, W20, W20B all CASE WHEEL LOADER (S/N 9123140 & AFTER) (NORTH AMERICA)

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

L105011

TUBE,4.42, 9.32" L

- pump to flow control valve

1шт.

5

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- tube

1шт.

6

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

CONNECTOR - straight

1шт.

9

S206607

DISC

COUPLING - male

1шт.

10

S206608

CAP

- dust

1шт.

11

L50010

HOSE

- pump to flow control valve 36-1/2" (927 mm) long

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose to flow control valve

1шт.

13

L51457

VALVE

- flow control, parts list Figure 164

1шт.

14

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

2шт.

17

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, Includes: Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

19

L50026

TUBE,0.625" OD

- flow control valve to steering valve

1шт.

20

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, Incl. Ref. 21 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.

22

REF

INSTRUCTION

VALVE - steering, see Figure 146 and 148 for the correct assembly and components

1шт.

23

217-321

FITTING,45 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

STEM FITTING - 45 degree, Includes: Ref. 24

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, stem fitting

1шт.

25

L53571

HOSE ASSY.

HOSE - steering valve to filter, 3/4" (19 mm) ID x 16" (406 mm) long

1шт.

26

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

27

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

STEM FITTING - elbow, 90 degree, Includes: Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- stem fitting

1шт.

29

L106736

HOSE,0.75" ID x 33.00", SAE 100R3

- return, steering, 3/4" (19 mm) ID x 33" (838 mm) long

1шт.

30

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

31

L106644

FITTING

TEE - special, Includes: Ref. 32

1шт.

32

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

1шт.

L104785

FILTER

- return, Includes: Ref. 33 - 39

1шт.

33

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

34

NSS

NOT SOLD SEPARAT

GASKET - filter

1шт.

Part of kit containing (2) A139281 gaskets and (2) A143382 elements, P/N A45625

1шт.

35

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

Part of kit containing (2) A139281 gaskets and (2) A143382 elements, P/N A45625

1шт.

N7782

TRANSMITTER

SENDER - hydraulic oil filter restriction, Includes: Ref. 36 - 39

1шт.

36

NSS

NOT SOLD SEPARAT

SWITCH - sender

1шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, sender

1шт.

38

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- seal, piston

1шт.

39

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC

2шт.

40

L106692

BRACKET

- filter

1шт.

41

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

42

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

43

92-6

LOCK WASHER,3/8"

2шт.

44

25-106

NUT,3/8"-16, G5

- hex, 3/8"

2шт.

45

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

46

92-6

LOCK WASHER,3/8"

3шт.

47

95-6

WASHER,3/8"

- flat, 3/8"

3шт.

48

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

STEM FITTING - elbow, 90 degree, Includes: Ref. 49

1шт.

49

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- stem fitting

1шт.

50

D36798

HOSE

- filter hydraulic reservoir, 1" (25 mm) ID x 10-5/8" (270 mm) long

1шт.

51

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

52

REF

INSTRUCTION

HYDRAULIC RESERVOIR - parts list Figure 308 and 310

1шт.

53

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

54

L47503

BRACKET

CLAMP - tube

2шт.

55

L47487

BUSHING

SPACER - tube clamp

1шт.

56

92-6

LOCK WASHER,3/8"

1шт.

57

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

A45625

HYDRAULIC OIL FILTER

KIT - contains (2) A139281 gaskets and (2) A143382 elements, Includes: Ref. 34 & 35

1шт.
