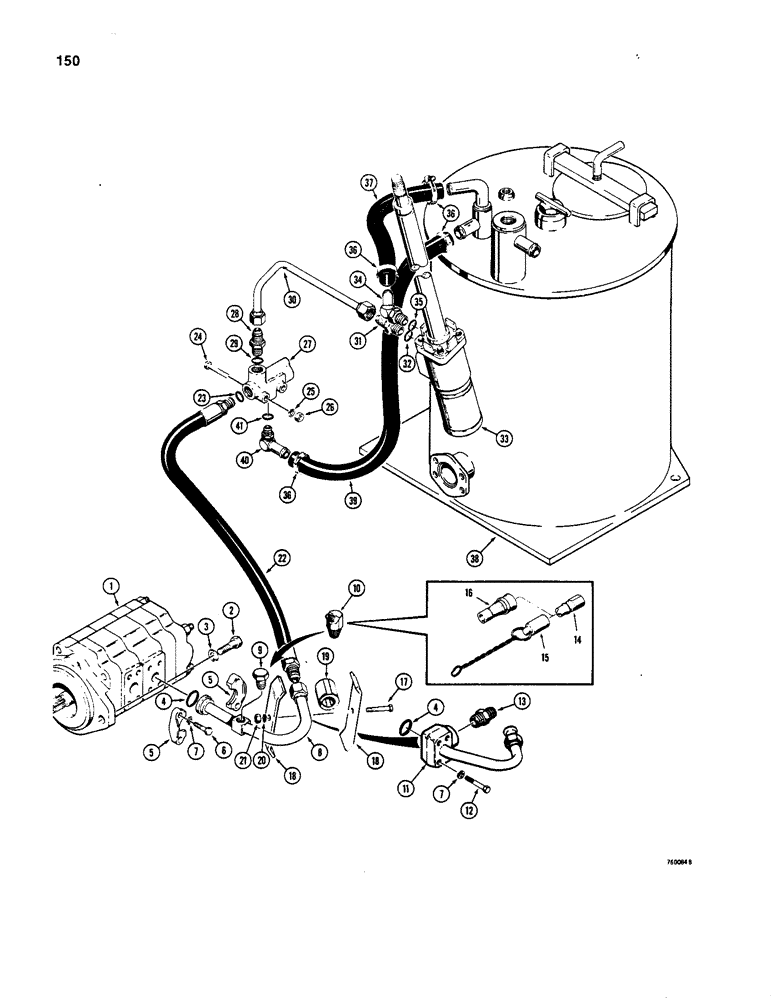

Запчасти Case W20 (150) - STEERING HYDRAULIC CIRCUIT - PUMP TO RESERVOIR, MODELS WITHOUT AUXILLIARY STEERING (05) - STEERING

1

L26895

PUMP

ASSEMBLY - parts list Figure 174

1шт.

L26895R

REMAN-HYD PUMP

W18, W20, W20B all CASE WHEEL LOADER (S/N 9123140 & AFTER) (NORTH AMERICA)

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- flange

1шт.

5

A16961

FLANGE

SPLIT FLANGE - tube, used with L53115 tube

2шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Used with L53115 tube Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

L53115

TUBE,4.42, 3.32" L

- pump to flow control valve, at pump, if used, order refs 11, 12, and 13

1шт.

9

221-655

PLUG,Hex Hd, 3/4"-14

- 3/4" NPT, if used, used with L53115 tube

1шт.

10

L100960

FITTING

- 45 degree, if used, used with L53115 tube

1шт.

11

L105011

TUBE,4.42, 9.32" L

- pump to flow control valve, if used

1шт.

12

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Used with L105011 tube Hex, 3/8"-16 x 2 1/4", G5

4шт.

13

21-1092

CONNECTOR - straight, used with L105011 tube

1шт.

14

S206607

DISC

COUPLING - male

1шт.

15

S206608

CAP

COVER - dust

1шт.

16

S206610

MAKING-UP

COUPLING - female

1шт.

17

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

18

L47503

BRACKET

CLAMP - tube

2шт.

19

L47487

BUSHING

SPACER - tube clamp

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

22

L50010

HOSE

- 36-1/2" (927 mm) long

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose

1шт.

24

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

25

92-5

LOCK WASHER,5/16"

1шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

27

L51457

VALVE

ASSEMBLY - flow control, parts list Figure 164

1шт.

28

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - straight, male, Includes: Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

30

L50026

TUBE,0.625" OD

- flow divider valve to steering gear

1шт.

31

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , male, straight, Incl. Ref. 32 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

33

REF

INSTRUCTION

VALVE ASSEMBLY - steering, see Figures 146 and 148 for the correct assembly and components

1шт.

34

217-321

FITTING,45 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

STEM FITTING - 45 degree, Includes: Ref. 35

1шт.

36

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

37

L51062

HOSE

- 14" (356 mm) long x 3/4" (19 mm) ID

1шт.

38

REF

INSTRUCTION

HYDRAULIC RESERVOIR - parts list Figures 308 and 310

1шт.

39

L51061

HOSE,0.75" ID x 21.00", SAE 100R3

1шт.

40

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

STEM FITTING - hose, 90 degree, at valve, Includes: Ref. 41

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- stem fitting

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, fitting

1шт.

35

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, stem fitting

1шт.
