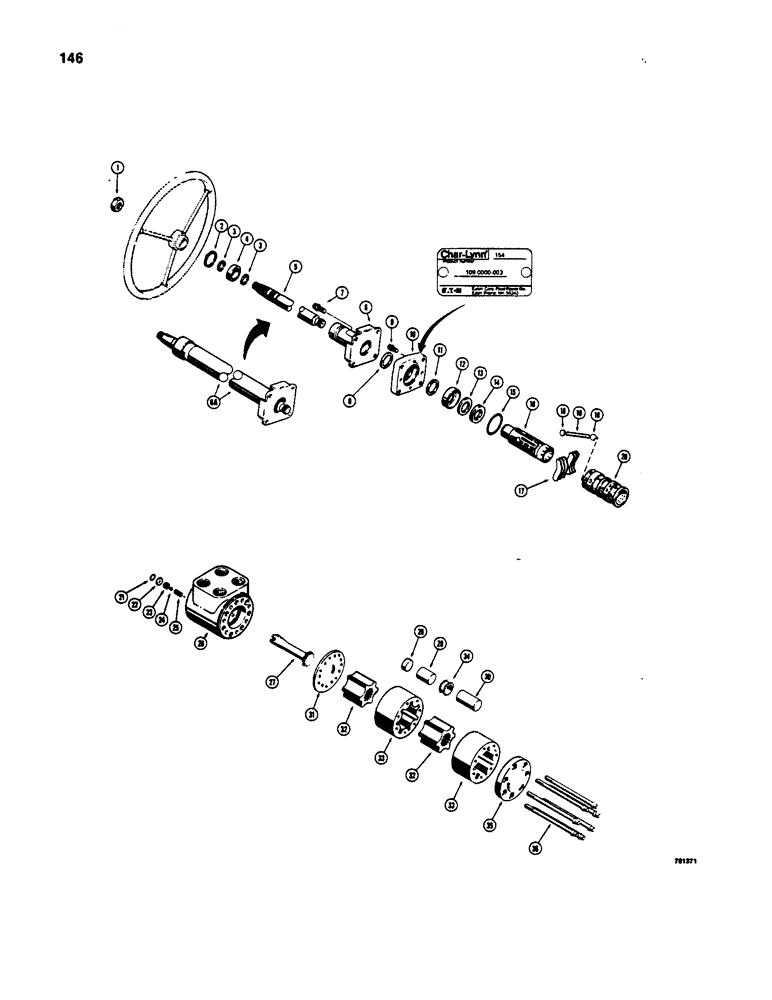

Запчасти Case W20 (146) - STEERING CONTROL VALVE AND COLUMN (05) - STEERING

L79426

GEAR

VALVE AND COLUMN - Char-Lynn No. 106-1108-002, service parts below, order L79642 valve and column, Figure 148, Includes: Ref. 1 - 36

1шт.

For Identification see name plate on valve for correct model number before ordering parts. See Fig. 148 for other valve.

1шт.

L50029

PUMP

VALVE AND COLUMN - Char-Lynn No. 5247-3, service parts below, order L79642 valve and column, Figure 148, Includes: Ref. 1 - 36

1шт.

For Identification see name plate on valve for correct model number before ordering parts. See Fig. 148 for other valve.

1шт.

1

L33715

JAM NUT

- steering wheel retaining

1шт.

L33713

STEERING COLUMN

COLUMN ASSEMBLY - steering, use D80621 column, ref 6A, if used, Includes: Ref. 2 - 6

1шт.

2

D46319

OIL SEAL

RETAINER - bearing, outer

1шт.

3

F53335

RING, SNAP

SNAP RING - bearing retaining

2шт.

4

L30881

BALL BEARING,22.4mm ID x 35.8mm OD x 9.6mm W

- steering shaft

1шт.

5

NSS

NOT SOLD SEPARAT

SHAFT - steering

1шт.

6

NSS

NOT SOLD SEPARAT

COLUMN - tube and flange

1шт.

6a

D80621

POST

COLUMN ASSEMBLY - components not serviced, if used

1шт.

7

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

SCREW - Ferry head, 3/8" - 16 NC x 3/4"

4шт.

L33714

VALVE

ASSEMBLY - steering manual, order D83218, Figure 148, Includes; Ref. 8 - 35

1шт.

8

A28211

OIL SEAL

OIL SEAL - valve

1шт.

9

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

SCREW - Ferry head, 5/16" - 18 NC x 5/8"

4шт.

10

D46317

PLATE ASSY.

COVER - upper

1шт.

11

A72029

RING

SEAL - quad ring

1шт.

L35676

BEARING ASSY

THRUST BEARING ASSEMBLY - valve, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - thrust bearing

1шт.

14

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Roller

1шт.

15

A17528

O-RING,1.737" ID x 1.943" OD x 0.103"

- valve

1шт.

N6474

CONTROL VALVE

CONTROL ASSEMBLY - valve, Includes: Ref. 16 - 26

1шт.

16

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

17

L30889

SPRING

- centering

6шт.

18

L30888

PIN

DISC - pin, if used

2шт.

19

L30888

PIN

- centering

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE - valve

1шт.

21

L30893

O-RING,1/16" Thk x 5/16" ID

- valve, 7/16 x 5/16 x 1/16 in

1шт.

22

L30892

PLUG

- seal, housing

1шт.

23

L30891

SEAT

- check

1шт.

24

211-101

BALL,1/4" Dia, Stainless

1шт.

25

L30890

VALVE SPRING

SPRING - check

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

27

L30878

DRIVE SHAFT

- valve

1шт.

28

D46315

SPACER

- drive shaft, 1/2" 913 mm) long

1шт.

29

L30877

SPACER

- drive shaft, 7/8" (22 mm) long

1шт.

30

D51216

SPACER

- drive shaft, 1-5/8" (41 mm) long

1шт.

31

A72026

PLATE

- spacer

1шт.

D51215

GEAR WHEEL

GEAR SET - valve, Includes: Ref. 32 & 33

2шт.

32

NSS

NOT SOLD SEPARAT

GEAR - rotor

1шт.

33

NSS

NOT SOLD SEPARAT

GEAR - stator

1шт.

34

D46316

DRIVE SPROCKET

SLEEVE - splined

1шт.

35

A72024

CAP

COVER - lower

1шт.

36

D51217

BOLT,5/16" x 3 1/2"

SCREW - Ferry head, 5/16" - 20 NF x 4-15/16"

7шт.
