(070) - INJECTOR NOZZLES, 401BD AND 401BDT DIESEL ENGINE, PRODUCTION NOZZLE

Запчасти Case W20 (070) - INJECTOR NOZZLES, 401BD AND 401BDT DIESEL ENGINE, PRODUCTION NOZZLE (03) - FUEL SYSTEM

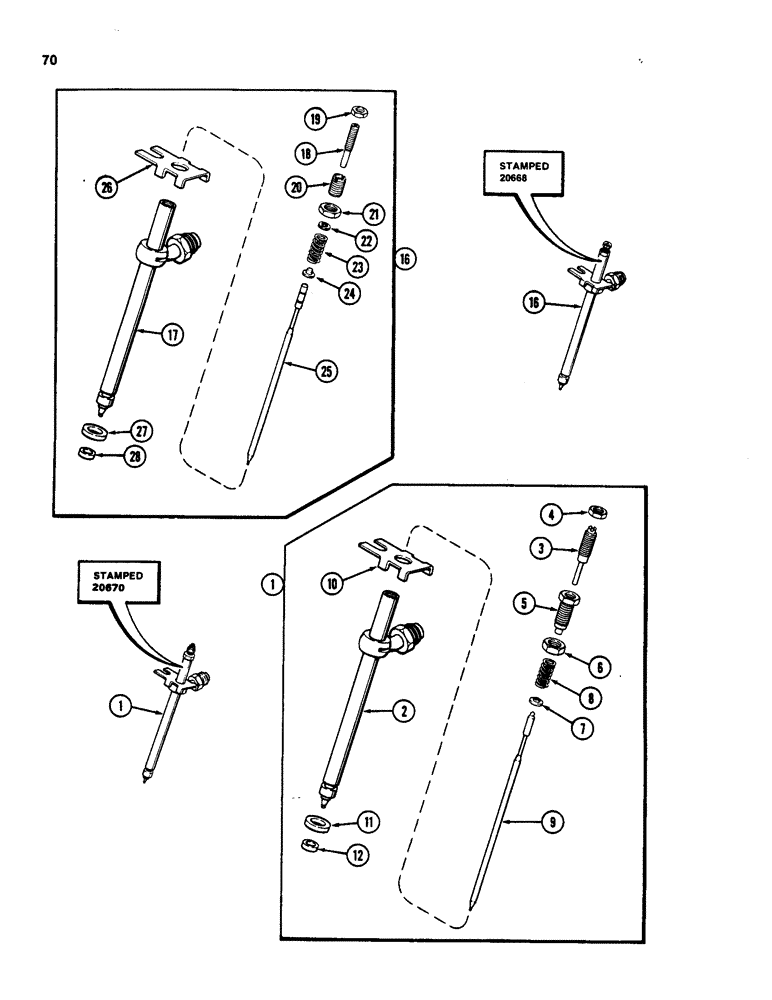

Схема запчастей Case W20 - (070) - INJECTOR NOZZLES, 401BD AND 401BDT DIESEL ENGINE, PRODUCTION NOZZLE (03) - FUEL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A140840

NOZZLE ASSEMBLY - injector (stamped 20670 on body) (blue color code) (Order A138322) ( Ref 16), Includes: Ref. 2 - 12

6шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A44369

SEAT

- pressure adjusting

1шт.

8

A43733

SPRING

- pressure adjusting, 9/16" (14.3 mm) free length with red stain color code

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

10

A41768

PLATE

- nozzle locating

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body (nylon)

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop (teflon)

1шт.

16

A138322

NOZZLE CAP

NOZZLE ASSEMBLY - injector (Stamped 20668 on body) (red color code), repair, Includes: Ref. 17 - 28

6шт.

Whenever nozzle is removed from cylinder head, the seal A41402 and washer A41403 must be replaced before nozzle is installed.

1шт.

A138322R

REMAN-INJECT NOZZLE

W18, W20, W20B all S/N 9123140 & AFTER

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - nozzle, repair

1шт.

18

A45293

ADJUSTMENT SCREW

SCREW - lift adjusting, repair nozzle

1шт.

19

A43602

NUT

- lock, lift adjusting screw, repair nozzle

1шт.

20

A45292

SCREW

- pressure adjusting, repair nozzle

1шт.

21

A42424

LOCK NUT

- lock, pressure adjusting screw, repair nozzle

1шт.

22

NLS

NO LONGER SERVICED

- pressure adjusting (Replaces A45291), repair nozzle

1шт.

23

A45290

SPRING

- pressure adjusting, 11/16" (17.5 mm) free length with green color code, repair nozzle

1шт.

24

A45289

SEAT

- pressure spring, lower, repair nozzle

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - nozzle, repair

1шт.

26

A41768

PLATE

- nozzle locating, repair

1шт.

27

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body (nylon), repair

1шт.

28

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop (teflon), repair

1шт.
