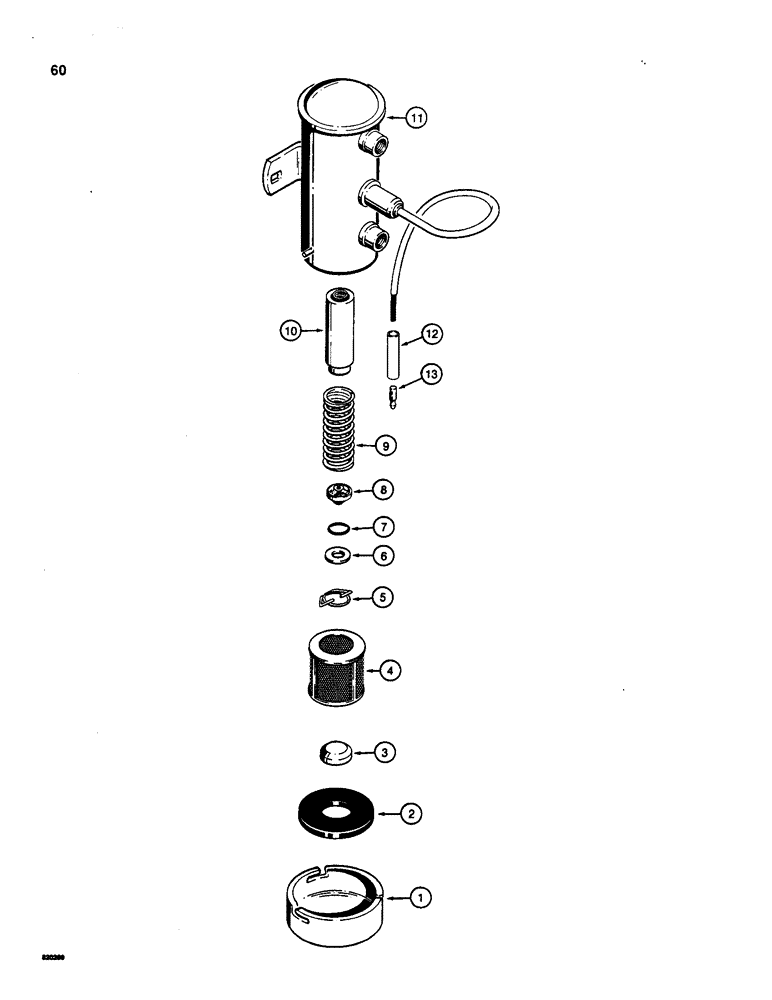

Запчасти Case W20 (060) - L52634 FUEL PUMP (03) - FUEL SYSTEM

L52634

PUMP

- fuel transfer, Includes: Ref. 1 - 13

1шт.

1

A40312

COVER

- fuel pump

1шт.

Located beside the fuel tank.

1шт.

2

A40315

GASKET

- cover

1шт.

3

A40311

MAGNET

- plunger

1шт.

4

N6000

FILTER SCREEN

SCREEN - filtering, interchangeable with L33210 screen

1шт.

5

A40316

RETAINER

- seal

1шт.

6

A40317

WASHER

- special, retainer

1шт.

7

A40318

O-RING,0.429" ID x 0.106"

0-RING - seal

1шт.

8

A40313

CUP

VALVE - cup

1шт.

9

L35316

SPRING

- plunger

1шт.

10

A40310

PLUNGER

- fuel pump

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - pump, fuel transfer

1шт.

12

223-125

TUBE

SLEEVE - insulation

1шт.

13

L10051

TERMINAL CONNECTOR,Male

CONNECTOR - , bullet Male

1шт.
