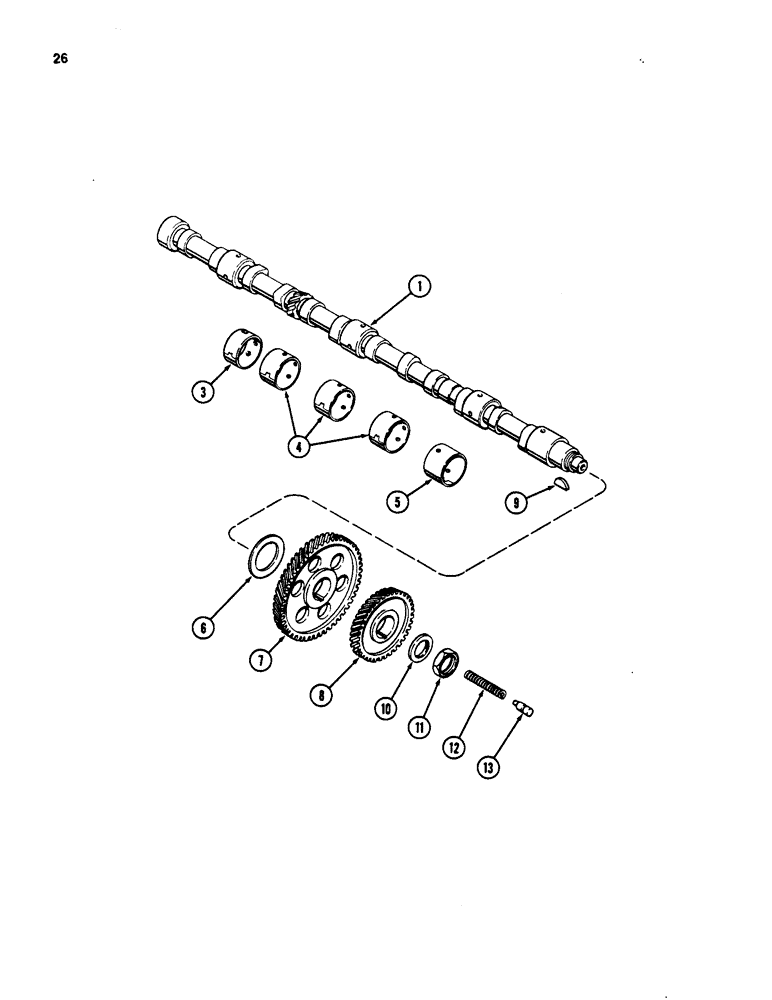

Запчасти Case W20 (026) - CAMSHAFT, 401BD AND 401BDT DIESEL ENGINE (02) - ENGINE

1

A66743

CAMSHAFT

- engine

1шт.

3

A23487

BUSHING,44.35mm ID x 60.3mm OD x 29.62mm L

- rear, 1-5/32" (29.4 mm) wide

1шт.

4

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- intermediate, 1-7/16" (36.5 mm) wide

3шт.

5

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- front, 1-21/32" (42.1 mm) wide

1шт.

6

A21017

WASHER

- thrust, drive gear

1шт.

7

A58592

GEAR

- drive (54 teeth)

1шт.

8

A58593

GEAR

- idler (48 teeth)

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - timing gear

1шт.

10

A31038

THRUST WASHER

- thrust, idler gear

1шт.

11

A58595

NUT

- lock, timing gears

1шт.

12

CASA27853

SPRING

- plunger

1шт.

13

A27852

PLUNGER

- thrust

1шт.
