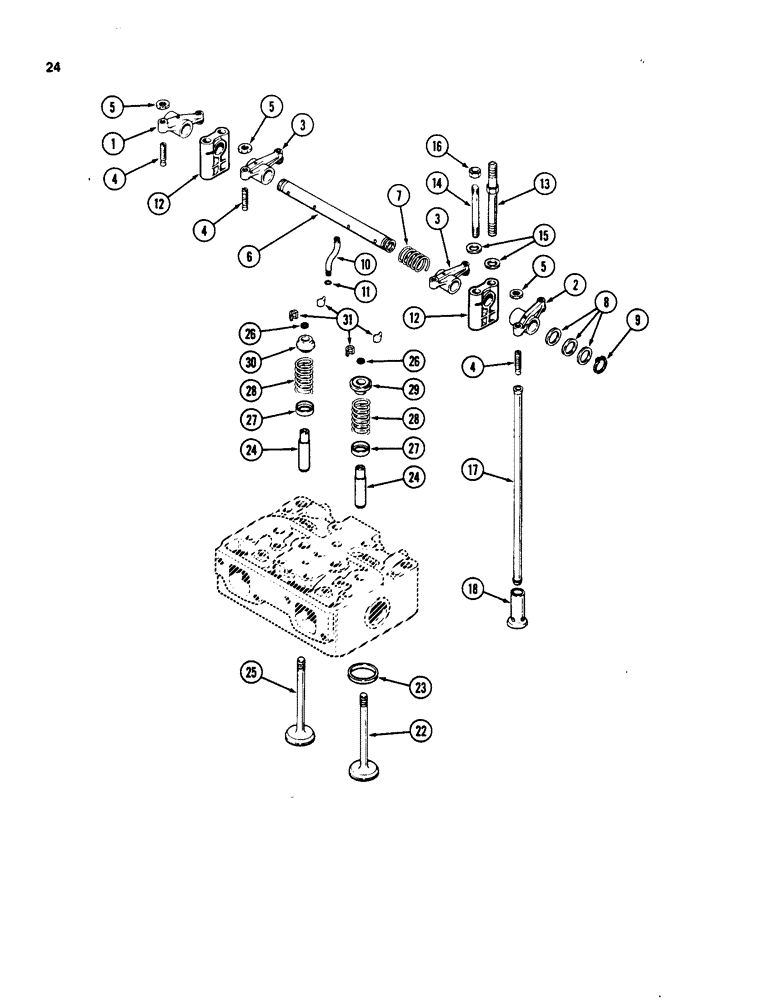

Запчасти Case W20 (024) - ENGINE VALVE MECHANISM, 401BD AND 401BDT DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A148137
ROCKER ARM
ARM ASSEMBLY - rocker, exhaust (1st, 3rd and 5th cylinders) (Replaces A58655), Includes: Ref. 4 & 5
3шт.
2
A148138
ARM
ASSEMBLY - rocker, exhaust (2nd, 4th and 6th cylinders) (Replaces A58656), Includes: Ref. 4 & 5
3шт.
Ref: #1 on illustration should be #2 and #2 on illustration should be #1.
1шт.
3
A148136
ARM
ASSEMBLY - rocker, intake (Replaces A58654)
6шт.
4
A21105
ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"
SCREW - adjusting, rocker arm
1шт.
5
25-116
NUT,Hex, 3/8"-24, G5
- adjusting screw, 3/8" NF hex jam
1шт.
6
A150545
SHAFT
ASSEMBLY - rocker arm (Replaces A57532)
3шт.
7
A27877
SPRING
- rocker arm shaft
3шт.
8
A27878
WASHER
- thrust, rocker shaft
1шт.
9
B18206
SNAP RING,#87, Ext
Ring, Snap, , thrust washer #87, Ext
6шт.
10
A58657
TUBE
- oil, rocker shaft
3шт.
11
A27880
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
- oil tube
3шт.
12
A61128
BRACKET
- rocker arm shaft
6шт.
13
A67121
STUD
- bracket and cover (7/16" NC x 6")
6шт.
14
A58659
STUD
- bracket (7/16" NC x 5/16")
6шт.
15
195-29
WASHER,7/16"
- bracket studs, 1/2 x 1 x 1/16" (12.7 x 25.4 x 1.6 mm)
12шт.
16
25-107
NUT,7/16"-14, G5
- bracket studs (7/16" NC hex)
6шт.
17
A141841
ROD
ASSEMBLY - push (Replaces A58596)
12шт.
18
A20865
TAPPET
LIFTER - push rod (Standard) 0.810" O.D. (20.574 mm)
12шт.
18
A21857
TAPPET
LIFTER - push rod (Oversize) 0.819" O.D. (20.777 mm)
12шт.
22
A41965
VALVE
- exhaust (Set of 2)
3шт.
23
A58877
INSERT
- exhaust valve seat
6шт.
24
A41783
GUIDE
- intake and exhaust valves
12шт.
25
A41966
VALVE
- intake (Set of 2)
3шт.
26
A58628
SEAL,8mm ID x 13.77mm OD x 2.16mm Thk
- valve stem
12шт.
27
A66328
SEAT
- valve spring
12шт.
28
A66444
SPRING
- intake and exhaust valves
12шт.
29
A66336
ROTATOR
RETAINER - exhaust valves (Roto-Coil)
6шт.
30
A66326
RETAINER
- intake valves
6шт.
31
A27872
LOCK
- valve spring retainers (Keepers)
24шт.
Выбрано товаров: 30
