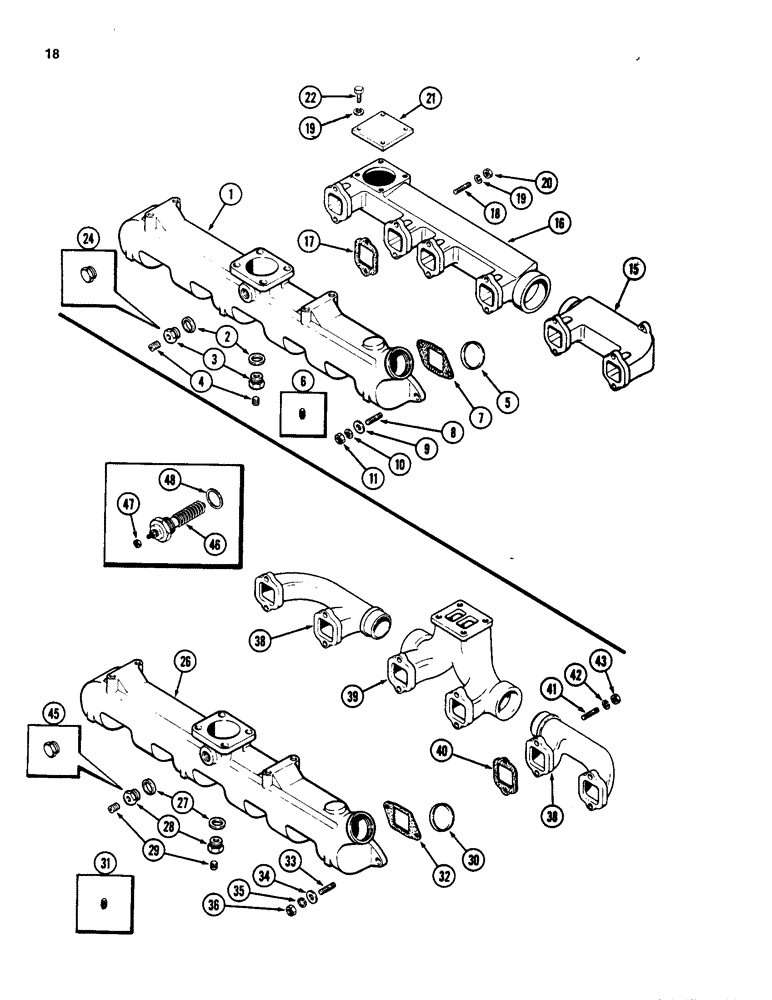

Запчасти Case W20 (018) - MANIFOLDS, 401BD DIESEL ENGINE, NATURAL ASPIRATED (02) - ENGINE

1

A154446

MANIFOLD

ASSEMBLY - intake (Replaces A62845), Includes: Ref. 2 - 4

1шт.

2

A20916

MANIFOLD GASKET

GASKET - plug

2шт.

3

L10283

PLUG

- heater hole

2шт.

4

221-1849

PLUG

- 1/8" PT, hex socket head

2шт.

5

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8" (66.7 mm) cup type

1шт.

6

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - (1/8" PT, square head)

1шт.

7

A58662

MANIFOLD GASKET

- intake manifold

6шт.

8

A59077

STUD

- intake manifold (3/8" NC x 1-3/4")

12шт.

9

195-25

WASHER,3/8"

- 7/16 x 13/16 x 1/16" (11.1 x 20.6 x 1.6 mm)

12шт.

10

92-6

LOCK WASHER,3/8"

12шт.

11

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

12шт.

16

A58663

MANIFOLD

- exhaust, rear

1шт.

15

A58664

MANIFOLD

- exhaust, front

1шт.

17

A58666

MANIFOLD GASKET

- exhaust manifold (asbestos faced)

6шт.

18

A59077

STUD

- exhaust manifold (3/8" NC x 1-3/4")

12шт.

19

92-6

LOCK WASHER,3/8"

16шт.

20

131-903

NUT,3/8"-16

NUT - 3/8' NC Seez-Pruf

12шт.

21

A58665

COVER

- exhaust manifold

1шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

24

A20917

PLUG

- heater hole

1шт.

26

A154446

MANIFOLD

ASSEMBLY - intake (Replaces A62845), 401BDT diesel engine, altitude compensating, Includes: Ref. 27 - 29

1шт.

27

A20916

MANIFOLD GASKET

GASKET - plug, 401BDT diesel engine, altitude compensating

2шт.

28

L10283

PLUG

- heater hole, 401BDT diesel engine, altitude compensating

2шт.

29

221-1849

PLUG

- 1/8" PT, hex socket head, 401BDT diesel engine, altitude compensating

1шт.

30

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8" (66.7 mm) cup type, 401BDT diesel engine, altitude compensating

1шт.

31

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG (1/8" PT, square head), 401BDT diesel engine, altitude compensating

1шт.

32

A58662

MANIFOLD GASKET

- intake manifold, 401BDT diesel engine, altitude compensating

6шт.

33

A59077

STUD

- intake manifold (3/8" NC x 1-3/4"), 401BDT diesel engine, altitude compensating

12шт.

34

195-25

WASHER,3/8"

- 7/16 x 13/16 x 1/16" (11.1 x 20.6 x 1.6 mm), 401BDT diesel engine, altitude compensating

12шт.

35

92-6

LOCK WASHER,3/8"

401BDT diesel engine, altitude compensating 3/8"

12шт.

36

25-106

NUT,3/8"-16, G5

- 3/8" NC hex, 401BDT diesel engine, altitude compensating

12шт.

38

A65917

MANIFOLD

- exhaust (ends), 401BDT diesel engine, altitude compensating

2шт.

39

A76322

MANIFOLD

- exhaust (center), 401BDT diesel engine, altitude compensating

1шт.

40

A58895

GASKET

- exhaust manifold (metal faced), 401BDT diesel engine, altitude compensating

6шт.

41

A140924

STUD

- exhaust manifold (3/8" NC x 2-5/8"), 401BDT diesel engine, altitude compensating

12шт.

42

92-6

LOCK WASHER,3/8"

401BDT diesel engine, altitude compensating 3/8"

12шт.

43

131-903

NUT,3/8"-16

NUT - exhaust manifold (3/8" NC, Seez-Pruf), 401BDT diesel engine, altitude compensating

12шт.

45

A20917

PLUG

- heater hole, 401BDT diesel engine, altitude compensating

1шт.

46

A66333

HEATER

ASSEMBLY - intake manifold heater

1шт.

47

129-503

NUT,1/4"-20, Brass

Heater terminal, Manifold heater 1/4"-20, Brass

1шт.

48

A20916

MANIFOLD GASKET

GASKET - manifold heater

1шт.
