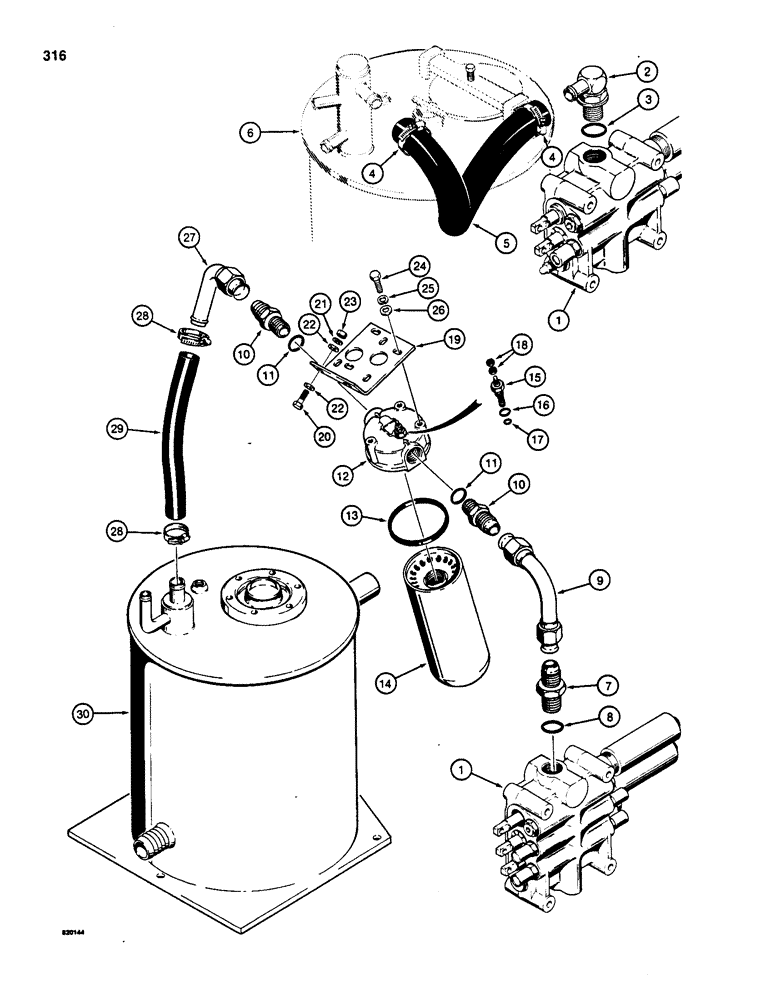

Запчасти Case W20 (316) - LOADER HYD CIRCUIT, VALVE TO HYD RSRVOIR (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - hydraulic, see Figures 330 and 332 for valves, used on W18 and W20 before tractor s/n 9142570 and on W20B before tractor s/n 9143074

1шт.

2

217-354

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/8" - 12 Male ORB

STEM FITTING - 90 degree, used on W18 and W20 before tractor s/n 9142570 and on W20B before tractor s/n 9143074, Includes: Ref. 3

1шт.

3

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- stem fitting, used on W18 and W20 before tractor s/n 9142570 and on W20B before tractor s/n 9143074

1шт.

4

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, used on W18 and W20 before tractor s/n 9142570 and on W20B before tractor s/n 9143074

2шт.

5

H309096

HOSE

- 1" (25 mm) ID x 17" (432 mm) long, Used on W18 and W20 before tractor s/n 9142570 and on W20B before tractor s/n 9143074

1шт.

6

L74190

TANK

HYDRAULIC RESERVOIR - parts list Figure 308, used on W18 and W20 before tractor s/n 9142570 and on W20B before tractor s/n 9143074

1шт.

7

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - straight, used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after, Includes: Ref. 8

1шт.

8

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- connector, used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after

1шт.

9

L107218

PIPE,177.8, 151.4 mm L

TUBE - valve to filter, used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after

1шт.

10

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after, Includes: Ref. 11

2шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter, used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after

1шт.

L104785

FILTER

ASSEMBLY - hydraulic return, used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after, Includes: Ref. 12 - 18

1шт.

12

NSS

NOT SOLD SEPARAT

HEAD - filter, used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET - filter, used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after

1шт.

Part of kit containing (2) A139281 gaskets and (2) A143382 elements, P/N A45625

1шт.

14

NSS

NOT SOLD SEPARAT

ELEMENT - filter, used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after

1шт.

Part of kit containing (2) A139281 gaskets and (2) A143382 elements, P/N A45625

1шт.

N7782

TRANSMITTER

SENDER - hydraulic oil filter restriction, used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

SWITCH - sender, used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, sender, used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after

1шт.

17

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- seal, piston, used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after

1шт.

18

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after

2шт.

19

L106692

BRACKET

- filter, used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after

1шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor S/N 9143074 and after Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9142074 and after 3/8"

2шт.

22

95-6

WASHER,3/8"

- flat, , used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after 3/8"

4шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after

2шт.

24

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor S/N 9143074 and after Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

25

92-6

LOCK WASHER,3/8"

used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after 3/8"

3шт.

26

95-6

WASHER,3/8"

- flat, , used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after 3/8"

3шт.

27

L107308

TUBE,102, 127 mm L

- filter hydraulic reservoir, used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after

1шт.

28

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

used on W18 and W20 tractor S/N 9142570 and after and on W20B tractor s/n 9143074 and after #28, 1.31/2.25 Type F Worm

2шт.

29

L107328

HOSE,31.75mm ID x 228.6mm L, SAE 100R3

- return to hydraulic reservoir, used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after

1шт.

30

L106705

HYDRAULIC RESERVOIR - parts list Figure 310, used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after

1шт.

A45625

HYDRAULIC OIL FILTER

KIT - contains (2) A139281 gaskets and (2) A143382 elements, used on W18 and W20 tractor s/n 9142570 and after and on W20B tractor s/n 9143074 and after

1шт.
