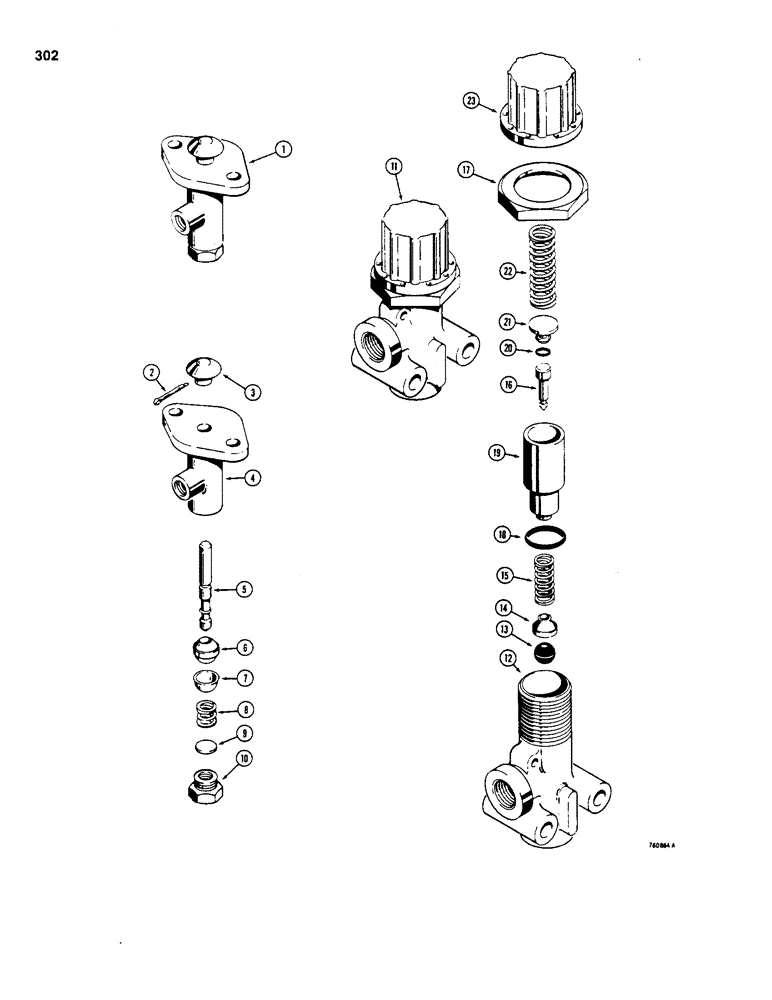

Запчасти Case W20 (302) - L12647 HORN VALVE (07) - BRAKES

1

L12647

VALVE

ASSEMBLY - horn, Includes: Ref. 2 - 10

1шт.

2

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

3

P2531301

CONTROL SLIDE

BUTTON - horn valve

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - horn valve, floor mounted

1шт.

5

L31353

STEM

- horn valve

1шт.

6

L31354

VALVE

- inlet, horn valve

1шт.

7

L31355

SEAT

- spring

1шт.

8

L35089

SPRING

- horn valve

1шт.

9

L31357

PLATE

- strainer, horn valve

1шт.

10

L31358

PLUG

CAP - horn valve

1шт.

11

L13530

VALVE

ASSEMBLY - pressure protection, L13530, Includes: Ref. 12 - 23

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - valve, pressure protection, L13530

1шт.

13

L31802

VALVE

- clutch, pressure protection, L13530

1шт.

14

NSS

NOT SOLD SEPARAT

GUIDE - valve, pressure protection, L13530

1шт.

15

L31800

SPRING

- valve, pressure protection, L13530

1шт.

16

NSS

NOT SOLD SEPARAT

STEM - valve, pressure protection, L13530

1шт.

17

131-414

LOCK NUT,PAL, 7/8"-14

NUT - special locking, 7/8" - 14 NF, pressure protection valve, L13530

1шт.

18

L31798

O-RING,1/8" ID x 1/4" OD x 1/16"

- piston, pressure protection valve, L13530

1шт.

19

NSS

NOT SOLD SEPARAT

PISTON - valve, pressure protection, L13530

1шт.

20

L31797

O-RING,1/2" ID x 11/16" OD x 3/32"

- plug, pressure protection valve, L13530

1шт.

21

NSS

NOT SOLD SEPARAT

PLUG - piston, pressure protection valve, L13530

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - valve, pressure protection, L13530

1шт.

23

L33316

CAP

- adjusting, pressure protection valve, L13530

1шт.
