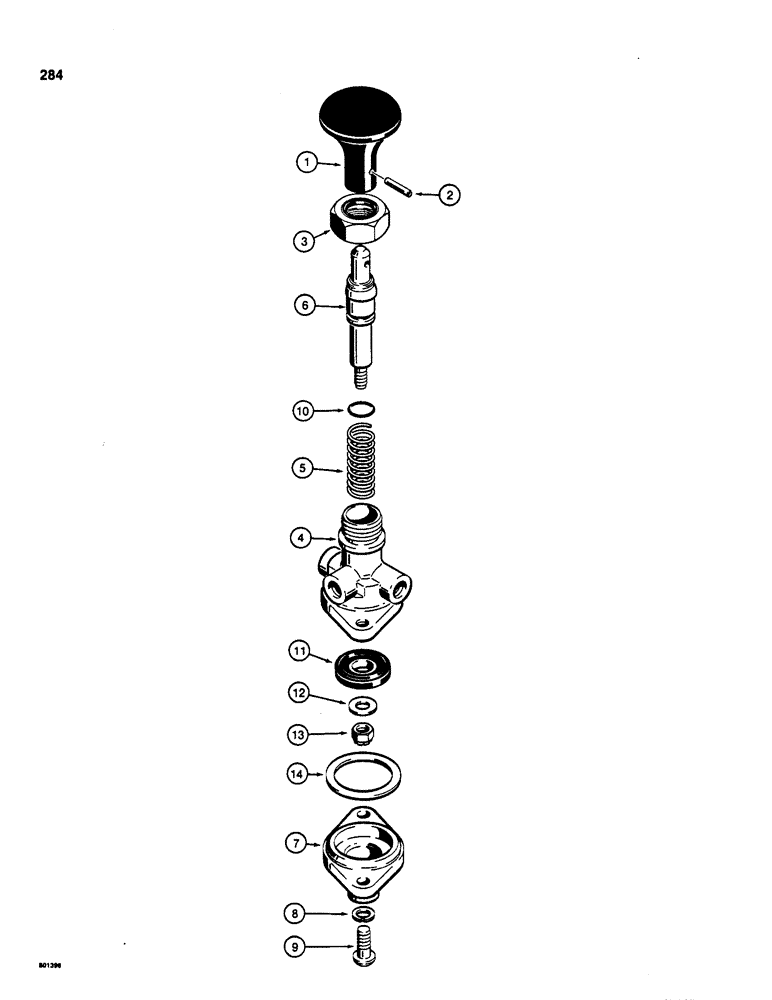

Запчасти Case W20 (284) - L103834 PARKING BRAKE VALVE (07) - BRAKES

L103834

VALVE

- parking brake, Includes: Ref. 1 - 14

1шт.

1

L33695

KNOB

-, Serial Range: pull-park

1шт.

2

138-2057

PIN,5/32" x 5/8", Coiled

1шт.

3

S94640

NUT

- special

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

5

L33698

SPRING

- valve

1шт.

6

N6814

PLUNGER

- valve

1шт.

7

L33700

COVER

- valve

1шт.

8

192-109

LOCK WASHER,1/4"

WASHER - lock, 1/4"

2шт.

9

182-527

SCREW,Sl Pan Hd, 1/4" - 20 x 5/8"

MACHINE SCREW - pan head, 1/4" - 20 NC x 5/8"

2шт.

L33701

KIT

- valve repair, Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - plunger

1шт.

11

NSS

NOT SOLD SEPARAT

VALVE - inlet and exhaust

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

13

NSS

NOT SOLD SEPARAT

NUT - hex, lock

1шт.

14

NSS

NOT SOLD SEPARAT

SEALING RING - cover

1шт.
