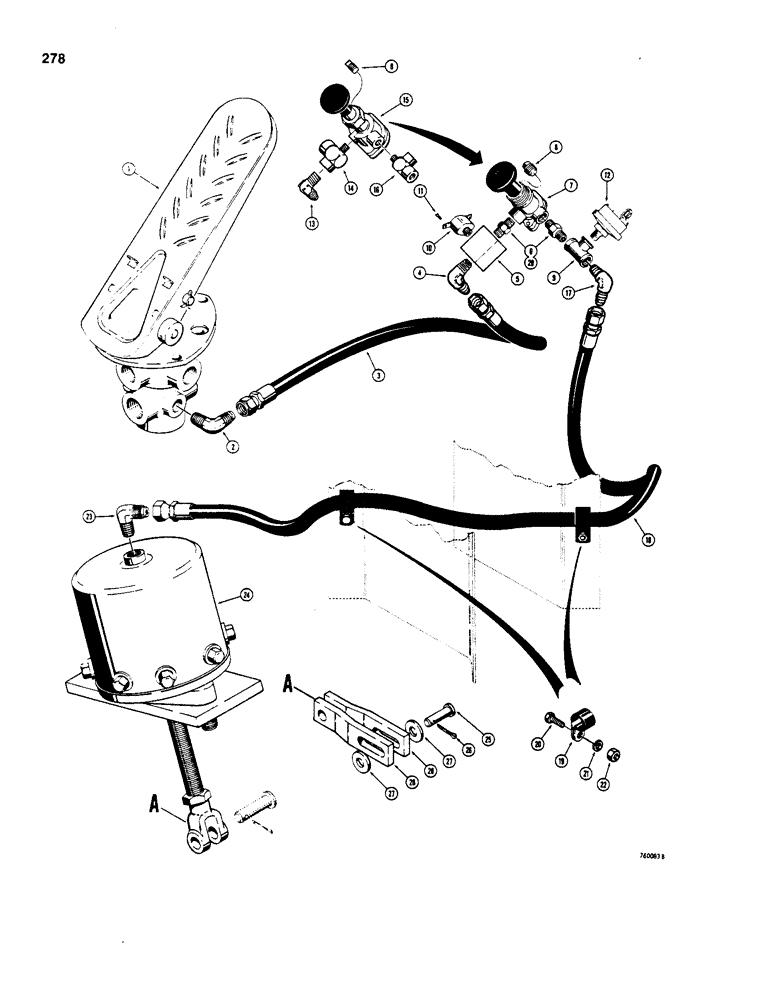

Запчасти Case W20 (278) - BRAKE SYSTEM, PARKING BRAKE VALVE TO PARKING BRAKE ACTUATOR (07) - BRAKES

1

L73042

VALVE, BRAKE

TREADLE ASSEMBLY - right-hand, parts list Figure 280

1шт.

2

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, male

1шт.

3

L49927

HOSE

- 40" (1016 mm) long

1шт.

4

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, male, used with L52178 valve, ref 7

1шт.

Part of parking brake valve kit P/N L36199

1шт.

5

L13273

UNION TEE

TEE - special, used with L51278 valve, ref 7

1шт.

6

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

ADAPTER - male, straight, used with L52178 valve, ref 7

2шт.

7

L52178

VALVE

ASSEMBLY - parking brake, mounts with two mounting screws, parts list Figure 282, order L36199 kit, see below, used before W18 and W20 tractor SN 913282 and before W20B tractor SN 9138810

1шт.

8

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - square head, 1/8" NPT

1шт.

Part of parking brake valve kit P/N L36199

1шт.

9

221-421

TEE,1/8" NPT

- , used with L52178 valve, ref 7 1/8" NPT

1шт.

10

L48480

SWITCH

- air pressure

1шт.

11

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- No. 8 - 32 NC x 1/4"

2шт.

12

L109945

TRANSMITTER

SENDER - air pressure

1шт.

13

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, male, used with L103834 valve, ref 15

1шт.

14

217-1250

TEE,1/4"-18 Female x 1/8"-27 Male Run

- special, used with L103834 valve, ref 15

1шт.

15

L103834

VALVE

ASSEMBLY - parking brake, mounts with lock nut, parts list Figure 284, used on W18 and W20 tractor SN 9138282 and after and on W20B tractor SN 9138810 and after

1шт.

Part of parking brake valve kit P/N L36199

1шт.

16

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- special, used with L103834 valve, ref 15

1шт.

17

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, male

1шт.

Part of parking brake valve kit P/N L36199

1шт.

18

L48120

HOSE

- 82" (2033 mm) long

1шт.

19

49838

CLAMP

- hose

2шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

23

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, male

1шт.

24

L48127

CHAMBER

PARKING BRAKE ACTUATOR - parts list Figure 298

1шт.

25

141-5

CLEVIS PIN,7/16" x 1.190"

- 7/16" diameter

1шт.

26

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

27

95-7

WASHER,7/16"

- flat, 7/16"

2шт.

28

L107710

DRAG LINK

LINK - parking brake

2шт.

29

221-1103

FITTING,Nipple, 1/8" NPT x 1"

NIPPLE - pipe, 1/8" NPT x 1", used with L103834 valve, ref 15

2шт.

Part of parking brake valve kit P/N L36199

1шт.

L36199

VALVE

KIT - parking brake valve, to service L52178 valve, Includes: Refs. 4, 8, 15, 17 and 29

1шт.
