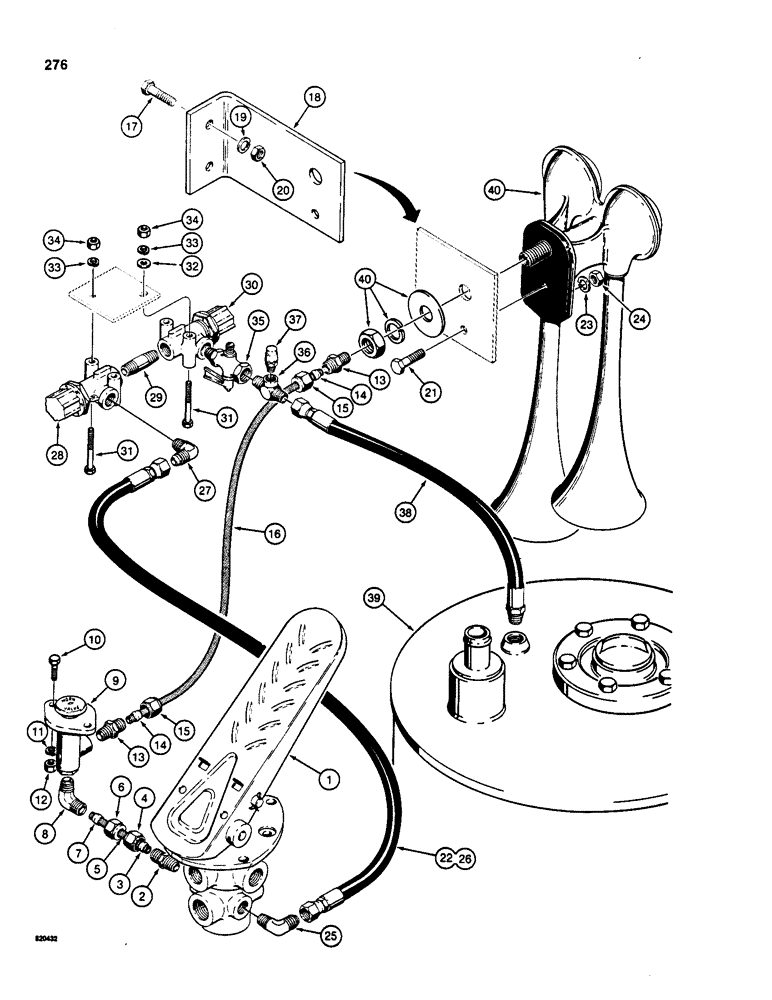

Запчасти Case W20 (276) - BRAKE SYSTEM, TREADLE TO HYDRAULIC RESERVOIR AND HORN (07) - BRAKES

1

L73042

VALVE, BRAKE

TREADLE AND VALVE ASSEMBLY - brake, left-hand, parts list Figure 280, Includes: Ref. 2 - 4

1шт.

222-2630

FITTING,7/16"-24 x 1/4" NPT, Comp

- compression, straight

1шт.

2

NSS

NOT SOLD SEPARAT

CONNECTOR - tube

1шт.

3

222-2610

SLEEVE

- connector

1шт.

4

222-2600

NUT

NUT - connector

1шт.

5

L48193

TUBE,0.25" OD

- treadle to horn valve

1шт.

222-2645

ELBOW,90 Degree, 7/16"-24 x 1/4" NPT, Comp

FITTING - compression, 90 degree, Includes: Ref. 6 - 8

1шт.

6

222-2600

NUT

NUT - elbow

1шт.

7

222-2610

SLEEVE

- elbow

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

9

L12647

VALVE

- horn, air, parts list Figure 302

1шт.

10

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

25-104

NUT,1/4"-20, G5

2шт.

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

- compression, straight, Includes: Ref. 13 - 15

2шт.

13

NSS

NOT SOLD SEPARAT

CONNECTOR - straight

1шт.

14

222-2610

SLEEVE

- connector

1шт.

15

222-2600

NUT

NUT - connector

1шт.

16

L48191

TUBE,0.25" OD

- horn valve to horn

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

18

L48196

BRACKET

- bolt on, if used

1шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

21

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4"

1шт.

22

D69427

HOSE

- 38" (965 mm) long, used on W18 and W20 tractor SN 9142570 and after and on W20B tractor SN 9143074 and after

1шт.

23

92-5

LOCK WASHER,5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

25

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, pipe

1шт.

26

L48025

HOSE

- 23" (584 mm) long, used before W18 and W20 tractor SN 9142570 and before W20B tractor SN 9143074

1шт.

27

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, male

1шт.

28

L13530

VALVE

- pressure protection, parts list Figure 302

1шт.

29

217-201

PIPE,Nipple, 1/4" NPT x 15/16"

NIPPLE - 1/4" NPT x 7/8" , brass

1шт.

30

L48129

VALVE

- regulator, pressure, parts list Figure 300

1шт.

31

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

32

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

34

25-104

NUT,1/4"-20, G5

2шт.

35

L53739

VALVE

- air shut-off

1шт.

36

L48132

FITTING

TEE - special

1шт.

37

D38663

VENT

VALVE - relief

1шт.

38

L48026

HOSE

- 16" (406 mm) long

1шт.

39

REF

INSTRUCTION

HYDRAULIC RESERVOIR - see Figure 308 and 310

1шт.

40

L76560

HORN

ASSEMBLY - air, parts list Figure 304

1шт.
