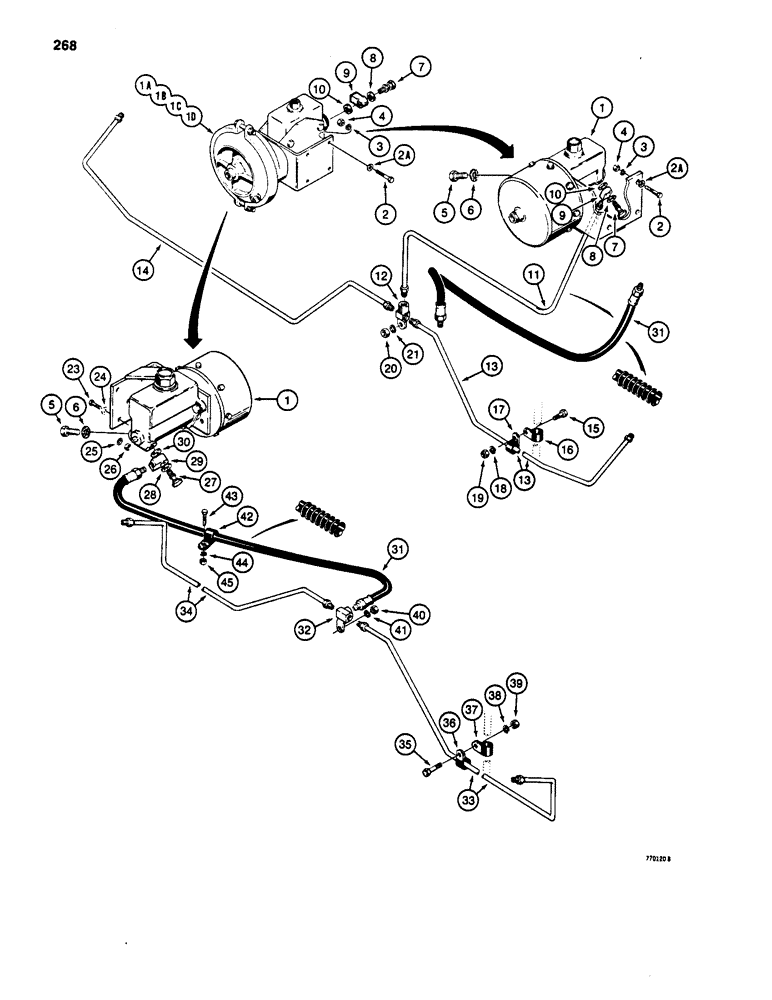

Запчасти Case W20 (268) - W18 AND W20 BRAKE SYSTEM, BRAKE ACTUATORS TO WHEEL CYLINDERS (07) - BRAKES

1

L40663

CYLINDER

BRAKE ACTUATOR - before W18 and W20 tractor SN 9126479, Wagner part No. AE-838, parts list Figure 286

2шт.

1a

L112001

ACTUATOR

BRAKE ACTUATOR - used on W18 and W20 tractor SN 9126480 thru SN 9129912, Wagner part No. AF-89552, parts list Figure 290, order L107895 brake actuator and 575474 cap (replaces L77758)

2шт.

1b

L112001

ACTUATOR

BRAKE ACTUATOR - used on W18 and W20 tractor SN 9129913 thru SN 9142569, Wagner part No. AF-969582, parts list Figure 292, order L107985 brake actuator and 575474 cap (replaces L103593)

2шт.

1c

L112001

ACTUATOR

BRAKE ACTUATOR - used on W18 and W20 tractor SN 9142570 thru SN 9142612, Wagner part No. AF-104382, parts list Figure 292, order L107985 broke actuator and 575474 cap (replaces L107986)

2шт.

1d

L112001

ACTUATOR

BRAKE ACTUATOR - used on W18 and W20 tractor SN 9142613 and after with 8" air reservoir, Wagner part No. A104362, parts list Figure 296 (replaces L107957)

2шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

2a

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8' 16 NC

2шт.

5

114-412

BOLT,Hex, 1/2" - 20 x 5/8", Gr 5, Full Thd

L40663 brake actuator only Hex, 1/2"-20 x 5/8", G5, Full Thd

2шт.

6

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - bolt

2шт.

7

A12864

BOLT

- special, tube fitting

1шт.

D77570 Ring per T/S #439-87D

1шт.

8

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting, outer, .600" (15.24 mm) ID

1шт.

9

A18531

FITTING

- brake, Serial Range: actuator-tube

1шт.

10

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - fitting, inner, .540" (13.72 mm) ID

1шт.

11

L59764

TUBE,0.25" OD x 11.8, 11.7" L

- L40663 brake actuator, before tractor SN 9126479

1шт.

11

NSS

NOT SOLD SEPARAT

TUBE - L77758 brake actuator, not shown, used on tractor SN 9126479 and after, order L104445 hose, ref 31

1шт.

12

A12452

FITTING

TEE - front brake system

1шт.

13

L103719

TUBE,0.25" OD x 25.59, 16.57" L

- tee to right-hand wheel cylinder, front

1шт.

14

L103717

TUBE,0.25" OD

- tee to left-hand wheel cylinder, front

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

16

R14668

CLAMP

- tube support

2шт.

17

49851

SHIELD

- brake tube

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

20

25-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF

1шт.

21

92-7

LOCK WASHER,7/16"

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

24

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

27

A12864

BOLT

- special, tube fitting

1шт.

28

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting, outer, .600 (15.24 mm) ID

1шт.

29

A18531

FITTING

- brake, Serial Range: cylinder-tube

1шт.

30

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - fitting, inner, .540" (13.72 mm) ID

1шт.

31

L104445

HOSE,3.17mm ID x 533.4mm L

- 21" (533 mm) long

1шт.

32

A12452

FITTING

TEE - rear brake system

1шт.

Illustration should look like ref: #12.

1шт.

33

L103717

TUBE,0.25" OD

- tee to right-hand wheel cylinder, rear

1шт.

34

L103719

TUBE,0.25" OD x 25.59, 16.57" L

- tee to left-hand wheel cylinder, rear

1шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

36

R14668

CLAMP

- tube support

2шт.

37

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- brake tube

2шт.

38

92-6

LOCK WASHER,3/8"

2шт.

39

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

40

25-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF

1шт.

41

92-7

LOCK WASHER,7/16"

1шт.

42

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose

1шт.

When old hose was changed to L104445 this "P" Clamp was rotated 180 degrees.

1шт.

43

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

44

92-6

LOCK WASHER,3/8"

1шт.

45

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.
