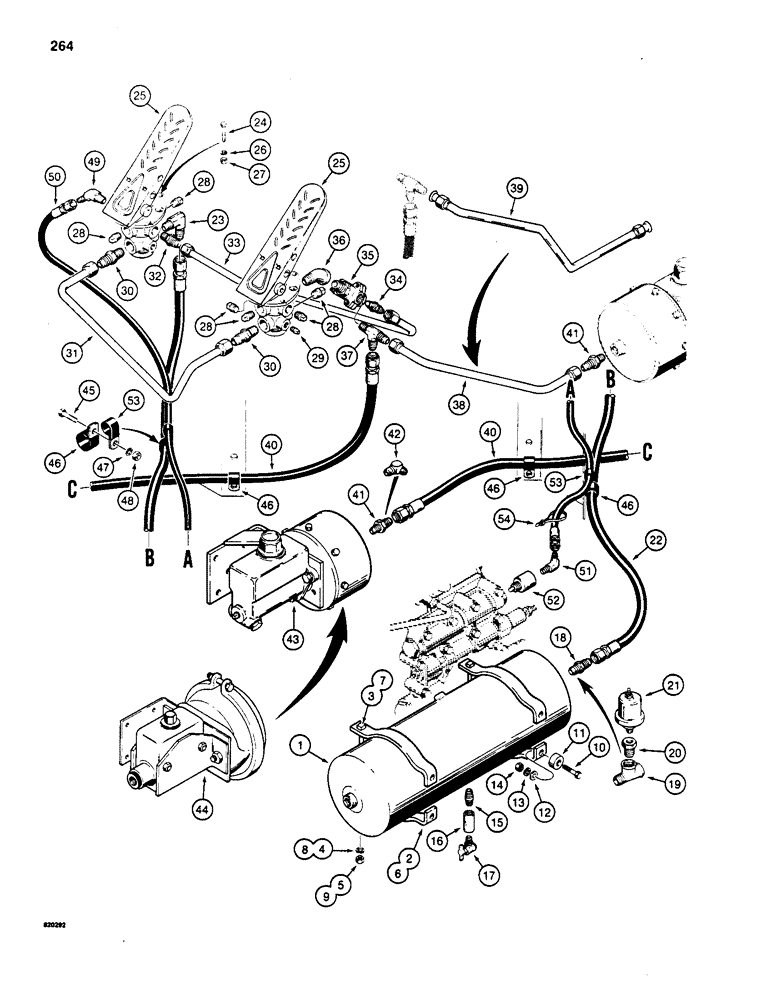

Запчасти Case W20 (264) - BRAKE SYSTEM, RESERVOIR TO TREADLES, MASTER CYLINDERS, AND CLUTCH CUTOUT (07) - BRAKES

1

L14823

TANK

RESERVOIR - air, brake system, 7" diameter, used before W18 and W20 tractor SN 9142613 and on all W20B Loaders

1шт.

1

L43018

RESERVOIR

- air, brake system, 8" diameter, used on W18 and W20 tractor SN 9142613 and after

1шт.

L12632

BRACKET

ASSEMBLY - reservoir mounting, use with L14823 reservoir only, Includes: Ref. 2 - 5

2шт.

2

L32871

SUPPORT

BRACKET - mountng, reservoir, use with L14823 reservoir only

2шт.

3

17-696

BOLT,Sq Hd, 3/8" - 16 x 6", Gr 2

- square head, 3/8" - 16 NC x 6"

1шт.

4

92-6

LOCK WASHER,3/8"

1шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

L12588

BRACKET

ASSEMBLY - reservoir mounting, use with L43018 reservoir only, Includes: Ref. 6 - 9

2шт.

6

NSS

NOT SOLD SEPARAT

BRACKET - mounting, reservoir, use with L43018 reservoir only

2шт.

7

17-696

BOLT,Sq Hd, 3/8" - 16 x 6", Gr 2

- square head, 3/8" - 16 NC x 6"

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", used with L12632 bracket

4шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Used with L12588 bracket Hex, 3/8"-16 x 2", G5

4шт.

11

L78175

HUB

SPACER - bolt, used with 8" tank

4шт.

12

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

15

221-1130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - 1/4" NPT x 7/8" long

1шт.

16

221-1336

COUPLING,Pipe, 1/4" NPT

- 1/4" NPT

1шт.

17

L100385

COCK

VALVE - drain

1шт.

18

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight

1шт.

19

221-693

TEE,1/2" NPT

- 1/2" NPT

1шт.

20

221-54

BUSHING

REDUCER - 1/2" x 1/8" NPT

1шт.

21

L109945

TRANSMITTER

SENDER - air pressure

1шт.

22

L48030

HOSE

- 82" (808 mm) long

1шт.

23

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree

1шт.

24

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

25

L73042

VALVE, BRAKE

TREADLE AND VALVE - brake control, parts list figure 280

2шт.

26

92-5

LOCK WASHER,5/16"

6шт.

27

9635082

NUT,5/16" - 18, Gr 5

- hex 5/16" - 18 NC

6шт.

28

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2" NPT

6шт.

29

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - square head, 1/4" NPT

1шт.

30

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight

2шт.

31

L48137

TUBE,0.625" OD

- air cross over

1шт.

32

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight

1шт.

33

L48187

TUBE,0.5" OD

- treadle to brake actuator

1шт.

34

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight

1шт.

35

L48128

VALVE

- double check, parts list Figure 300

1шт.

36

221-1404

ELBOW,45 Degree, 1/2"-14, NPT

- 45 degree, 1/2" NPT

1шт.

37

218-614

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Run

Male 3/4"-16, 37º x 3/8"-18, NPTF Run

1шт.

38

L48113

TUBE,0.5" OD x 20.3, 11.6" L

- before W18 and W20 tractor SN 9126479 and before W20B tractor SN 9127565

1шт.

38

L77715

TUBE,0.5" OD

- used on W18 and W20 tractor SN 9126479 thru SN 9142612 and on W20B tractor SN 9127565 and after

1шт.

39

L107742

TUBE,0.5" OD

- used on W18 and W20 tractor SN 9142613 and after

1шт.

40

L48030

HOSE

- 82" (2083 mm)

1шт.

41

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, male, if used

2шт.

42

218-534

ELBOW,45 Degree, 3/4"-14, 37 Degree x 3/8"-18, NPTF

- 45 degree, male, if used

1шт.

43

REF

INSTRUCTION

BRAKE ACTUATOR - W18 and W20 only, see figure 268

2шт.

44

REF

INSTRUCTION

BRAKE ACTUATOR - W18 and W20 only, see figure 268

2шт.

45

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

46

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- hose to frame brackets

4шт.

47

92-6

LOCK WASHER,3/8"

4шт.

48

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

49

218-1096

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/2"-14, NPTF

- male, 45 degree

1шт.

50

L48061

HOSE

- 52" (1321 mm)

1шт.

51

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

male 45º, 9/16-18" 37º x 1/4"-18, NPTF

1шт.

52

L109583

VALVE

CYLINDER - clutch cutout

1шт.

53

49838

CLAMP

- hose

2шт.

54

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - hose

1шт.
