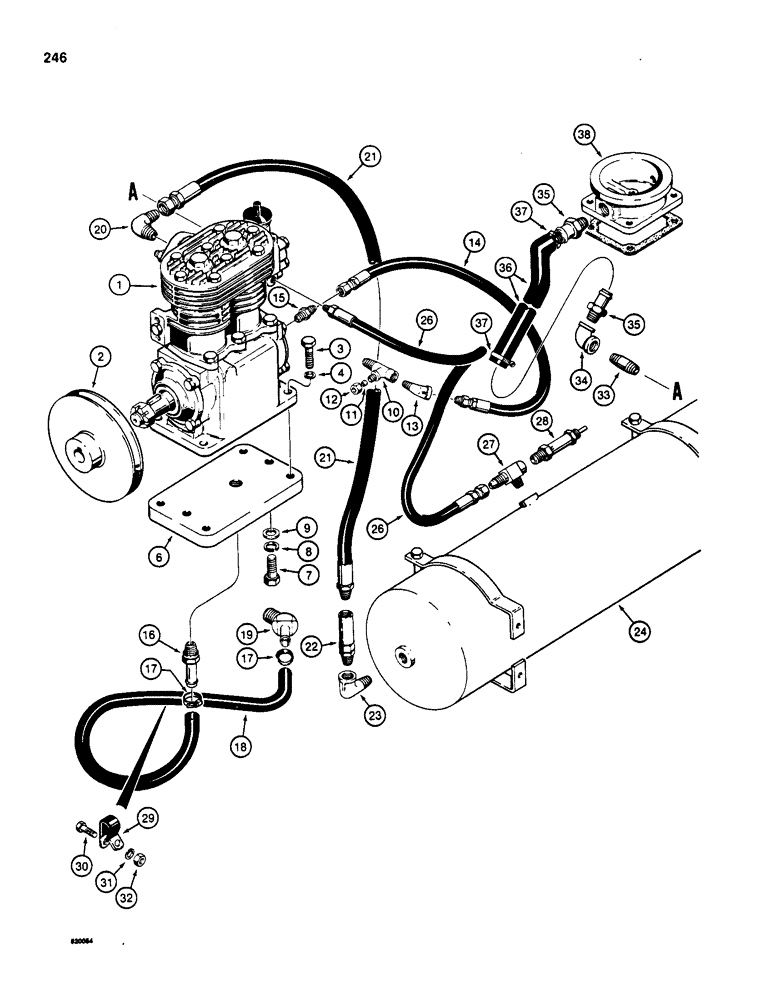

Запчасти Case W20 (246) - BRAKE SYSTEM, AIR COMPRESSOR TO RESERVOIR (07) - BRAKES

1

L109543

COMPRESSOR

AIR COMPRESSOR - aluminum block, parts list Figures 254 thru 258

1шт.

1

L79411

COMPRESSOR

AIR COMPRESSOR - aluminum block, parts list Figures 254 thru 258

1шт.

1

L57774

COMPRESSOR

AIR COMPRESSOR - cast iron block, parts list Figures 250 and 252

1шт.

2

L57805

PULLEY

- drive, compressor

1шт.

3

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

4шт.

4

92-7

LOCK WASHER,7/16"

4шт.

5

B17501

LOCTITE

SEALANT - gasket, 0.2 oz. tube, not shown, used to mount air, Serial Range: compressor-plate

1шт.

6

L100499

BASE

PLATE - mounting, compressor

1шт.

7

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

D64050

WASHER

- flat, hardened

2шт.

222-82

TEE,1/2"-12 Male x 1/8 NPT Fem Run x 1/8 NPT Br

FITTING ASSEMBLY - flex tube, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

TEE - fitting

1шт.

11

222-102

SLEEVE,1/4" Tube

1шт.

12

87017024

TUBE NUT,1/2"-24

NUT - fitting

1шт.

13

221-401

ELBOW,45 Degree, 1/8"-27, NPT

- 45 degree, 1/8" NPT, used with L40303 hose

1шт.

14

L100556

HOSE,0.25" ID x 17.00"

If Used 0.25" ID x 17.00"

1шт.

14

L40303

HOSE

- 12-1/4" (3112 mm) long, if used

1шт.

15

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - male, straight

1шт.

16

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

stem, straight 1/2" Hose X 3/8" NPTF Beaded

1шт.

17

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - hose

2шт.

18

L41213

HOSE

- lubrication, compressor return

1шт.

19

217-186

FITTING,45 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

STEM FITTING - 45 degree

1шт.

20

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, male

1шт.

21

L58528

AIR HOSE,0.50" ID x 26.50", SAE 100R1

1шт.

22

G45437

LOCK VALVE

CHECK VALVE - air pressure

1шт.

23

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- 90 degree, 1/2" NPT

1шт.

24

REF

INSTRUCTION

RESERVOIR - air, brake system, see Figure 264

1шт.

26

L47886

HOSE

- 27" (686 mm) long

1шт.

27

L48131

FITTING

TEE - special

1шт.

28

L48992

VALVE,1/4"

ASSEMBLY - safety

1шт.

29

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose

1шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

31

92-6

LOCK WASHER,3/8"

1шт.

32

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

33

221-1190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - pipe, 1/2" NPT x 2"

1шт.

34

221-1377

ELBOW,90 Degree, 1/2" NPT

- 90 degree, female

1шт.

35

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

STEM FITTING - straight

2шт.

36

L47888

HOSE

- 5/8" (16 mm) ID x 37" (940 mm)

1шт.

37

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

38

REF

INSTRUCTION

BASE - air cleaner, see figure 48

1шт.
