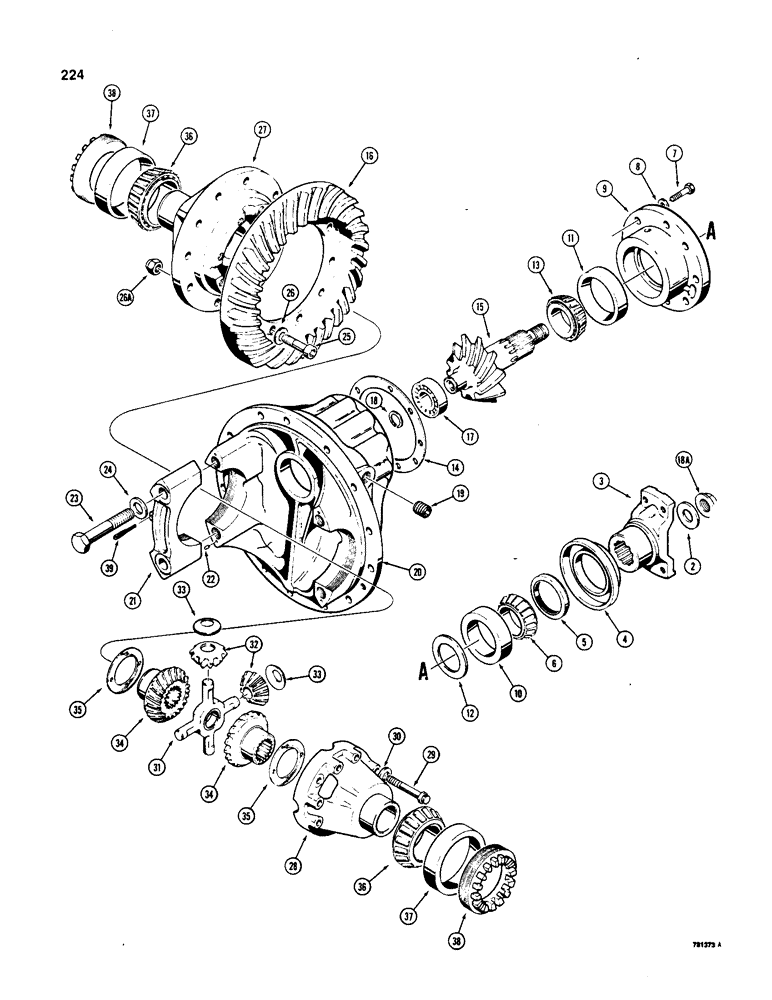

Запчасти Case W20 (224) - W18 AND W20, L79924 AND L103014 FRONT AND REAR AXLE (06) - POWER TRAIN

L79924

AXLE

ASSEMBLY - complete, PDLS-596-H100, if used, Includes: Ref. 2 - 19

2шт.

L103014

AXLE

ASSEMBLY - complete, PRLS-596-H102, if used, Includes: Ref. 2 - 19

2шт.

N6052

CARRIER

DIFFERENTIAL & ASSEMBLY - axle, Includes: Ref. 2 - 19

1шт.

2

A15441

WASHER

- flat

1шт.

D82734

YOKE

ASSEMBLY - drive shaft, Includes: Ref. 3 & 4

1шт.

3

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

4

S113924

SLINGER

SHIELD - oil seal

1шт.

5

S113920

OIL SEAL,63.12mm ID x 98.55mm OD x 9.53mm Thk

OIL SEAL - differential

1шт.

6

S113921

TAPERED BEARING

BEARING - outer

1шт.

7

26-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

- hex head, 7/16" - 14 NC x 1-1/2"

8шт.

8

D47367

WASHER

- flat

8шт.

S113909

HOUSING

CAGE ASSEMBLY - pinion shaft, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

CAGE - pinion shaft

1шт.

10

NSS

NOT SOLD SEPARAT

CUP - bearing, outer

1шт.

11

NSS

NOT SOLD SEPARAT

CUP - bearing, inner

1шт.

12

A12960

SPACER

- bearing, .219" (5.56 mm) thick

1шт.

12

A12961

SPACER

- bearing, .220" (5.59 mm) thick

1шт.

12

A12962

SPACER

- bearing, .221" (5.61 mm) thick

1шт.

12

A12963

SPACER

- bearing, .222" (5.64 mm) thick

1шт.

12

A12964

SPACER

- bearing, .223" (5.66 mm) thick

1шт.

12

A12965

SHIM,.224" Thk

SPACER, , Bearing (5.69 mm) .224" Thk

1шт.

12

A12966

SPACER

- bearing, .230" (5.84 mm) thick

1шт.

12

A12967

SPACER

- bearing, .236" (5.99 mm) thick

1шт.

12

A12968

SPACER

- bearing, .242" (6.15 mm) thick

1шт.

12

A12969

SPACER

- bearing, .248" (6.30 mm) thick

1шт.

12

A12970

SPACER

- bearing, .254" (6.45 mm) thick

1шт.

13

L30032

ROLLER BEARING

- inner

1шт.

14

A12958

SHIM,.003" Thk

Cage (.076 mm) .003" Thk

1шт.

14

A12956

SHIM,.005" Thk

Cage (.127 mm) .005" Thk

1шт.

14

A12957

SHIM,.010" Thk

Cage (.254 mm) .010" Thk

1шт.

D87169

GEAR

SET - ring and pinion, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

PINION GEAR - differential

1шт.

16

NSS

NOT SOLD SEPARAT

RING GEAR - differential

1шт.

17

D82735

ROLLER BEARING,35mm ID x 72mm OD x 20.64mm W

BEARING - inner, pinion, interchangeable with L30387 bearing

1шт.

18

A15442

LOCK

SNAP RING - bearing retaining

1шт.

18a

N7895

NUT

- hex, self-locking

1шт.

If part needed i s a hex flange nut, part no. is S113912.

1шт.

19

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- 3/4" NPT

1шт.

L79924

AXLE

ASSEMBLY - complete, continued, PRLS-596-H100, if used, Includes: Ref. 20 - 39

2шт.

L103014

AXLE

ASSEMBLY - comlpete, continued, PRLS-596-H102, if used, Includes: Ref. 20 - 39

2шт.

N6052

CARRIER

DIFFERENTIAL ASSEMBLY - axle, Includes: Ref. 20 - 39

1шт.

D80630

CARRIER

AND CAP ASSEMBLY - differential, Includes: Ref. 20 - 24

1шт.

20

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

21

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

22

A15443

DOWEL

PIN - carrier

4шт.

23

L34037

BOLT

- cap

4шт.

24

A16783

WASHER

- flat, hardened

4шт.

25

S113908

BOLT

BOLT - special, ring gear

12шт.

26

L30737

WASHER

- flat, special

12шт.

26a

131-1236

LOCK NUT,5/8"-18, GC

NUT - hex, self-locking, 5/8" - 18 NF

12шт.

S236220

CASE

ASSEMBLY - differential, Includes: Ref. 27 - 30

1шт.

27

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

28

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

29

S113906

BOLT

- special

16шт.

30

D47366

WASHER

- special

16шт.

31

A25143

SPIDER ASSY.

SPIDER - differential

1шт.

32

A25131

PINION

GEAR - differential

4шт.

33

A25140

WASHER

THRUST WASHER - differential

4шт.

34

S113907

GEAR

SIDE GEAR - differential

2шт.

35

A25142

WASHER

THRUST WASHER - side gear

2шт.

36

L33297

ROLLER BEARING

CONE - bearing

2шт.

37

L33303

BEARING CUP

CUP - bearing

2шт.

38

S113916

NUT

RING - bearing adjusting

2шт.

39

L30029

PIN

COTTER PIN - lock

2шт.
