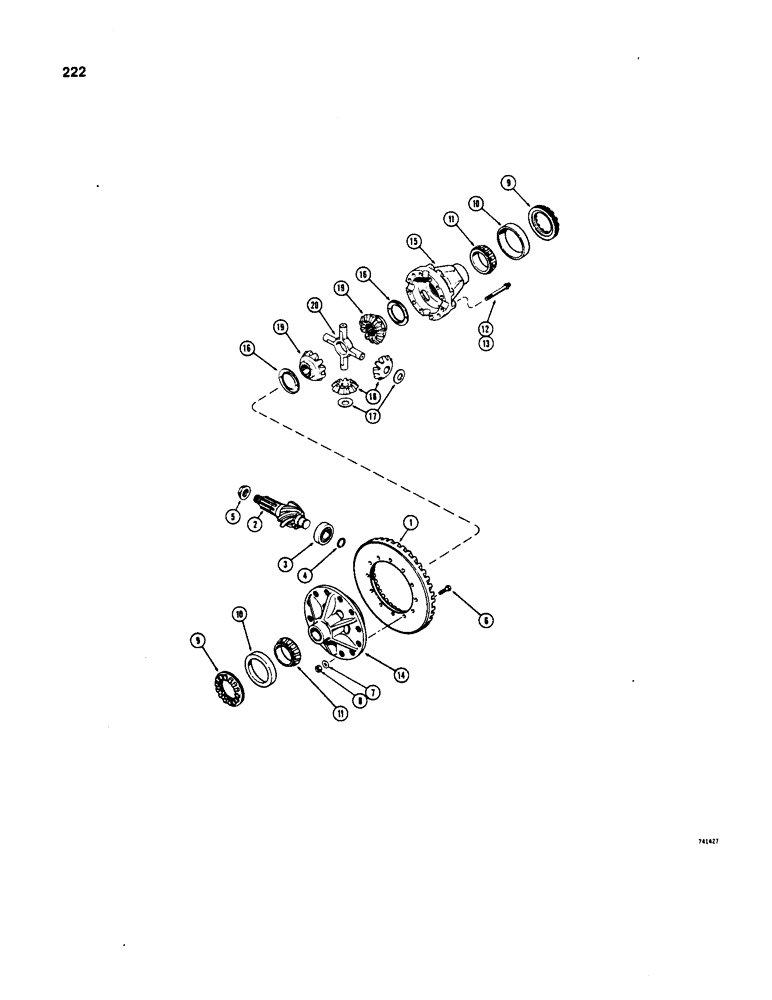

Запчасти Case W20 (222) - W18 AND W20 L58844 FRONT AND REAR AXLE DIFFERENTIAL (06) - POWER TRAIN

L58844

AXLE ASSEMBLY - complete, PR120-HX-1/9.03-1, Includes: Ref. 1 - 20

2шт.

L36107

DIFFERENTIAL ASSEMBLY - axle, Includes: Ref. 1 - 20

1шт.

L36018

RING GEAR

BEVEL GEAR SET - differential, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

RING GEAR - differential

1шт.

2

NSS

NOT SOLD SEPARAT

PINION GEAR - differential

1шт.

3

D82735

ROLLER BEARING,35mm ID x 72mm OD x 20.64mm W

BEARING - pinion gear

1шт.

4

A15442

LOCK

RING - lock

1шт.

5

L35091

NUT

NUT - flange retaining

1шт.

6

L35919

BOLT

- bevel gear mounting, order with 131-1138 nut

12шт.

6

A47251

DRIVE SCREW

- special, order with 131-1234 nut

12шт.

7

D47366

WASHER

- special

12шт.

8

131-1138

LOCK NUT,1/2"-13, GC

NUT - hex, self-locking, 1/2" - 13 NC

12шт.

8

232-4618

LOCK NUT,1/2"-20, GC

NUT - hex, self-locking, 1/2" - 20 NF

12шт.

9

A12942

GASKET

RING - adjusting, differential bearing

2шт.

10

A12946

BEARING CUP

CUP - bearing, differential

2шт.

11

A12944

ROLLER BEARING,2.8125" ID x 1.1875"

CONE - bearing, differential

2шт.

L30670

DIFFERENTIAL

CASE AND GEAR ASSEMBLY - axle, Includes: Ref. 12 - 20

1шт.

12

L34063

BOLT

- special, short

4шт.

13

26-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex head, 1/2" - 13 NC x 3", grade 8

8шт.

14

NSS

NOT SOLD SEPARAT

CASE - differential, flange half

1шт.

15

NSS

NOT SOLD SEPARAT

CASE - differential, plain half

1шт.

16

A12979

WASHER

THRUST WASHER - side gear

2шт.

17

A12976

WASHER

THRUST WASHER - pinion

4шт.

18

A12975

GEAR

PINION GEAR - differential

4шт.

19

A12978

GEAR

SIDE GEAR - differential

2шт.

20

A12974

U-JOINT SPIDER

SPIDER - differential

1шт.
