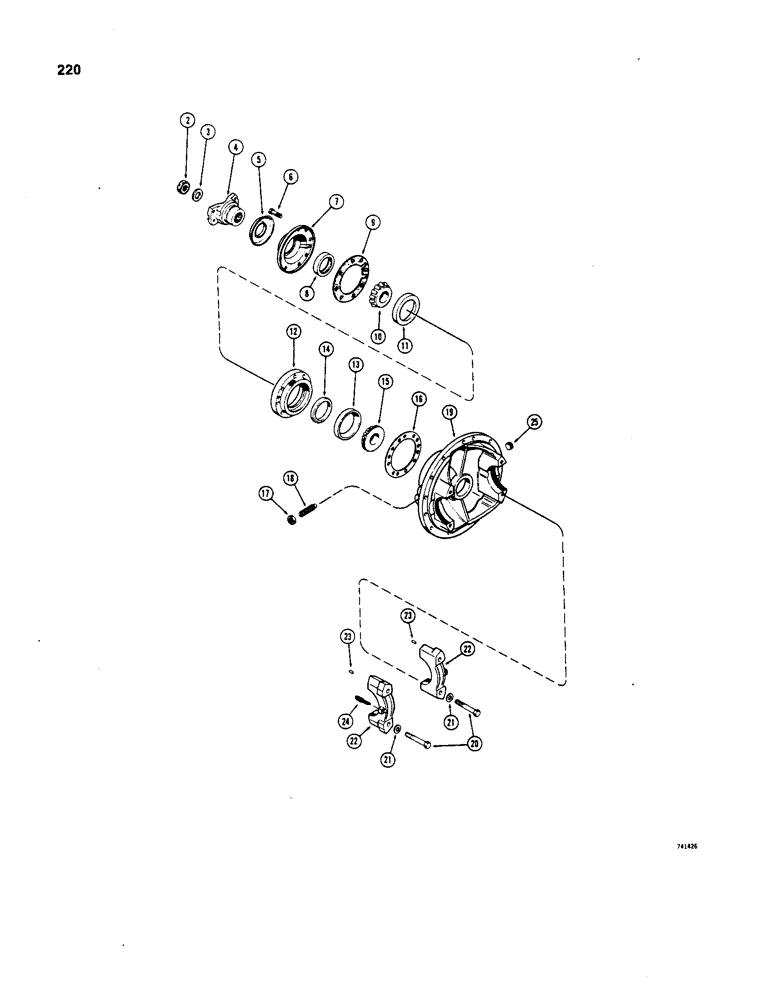

Запчасти Case W20 (220) - W18 AND W20 L58844 FRONT AND REAR AXLE DIFFERENTIAL, CARRIER, COVER, AND YOKE (06) - POWER TRAIN

L58844

AXLE ASSEMBLY - complete, PR120-HX-1/9.03-1, Includes: Ref. 2 - 25

2шт.

L36107

DIFFERENTIAL ASSEMBLY - axle, Includes: Ref. 2 - 25

1шт.

2

L35091

NUT

NUT - hex, self-locking

1шт.

3

A13124

WASHER

- yoke retaining

1шт.

L32491

YOKE

ASSEMBLY - drive shaft, Includes: Ref. 4 & 5

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

5

A12952

CYLINDER END CAP

SHIELD - oil seal

1шт.

6

26-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8

- hex head, 7/16" - 14 NC x 1-3/4"

8шт.

A12954

COVER ASSY

COVER ASSEMBLY - pinion shaft, Includes: Ref. 7 & 8

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - pinion shaft

1шт.

8

L34024

SEAL,60.33mm ID x 85.27mm OD x 11.53mm Thk

OIL SEAL - pinion shaft

1шт.

9

A12955

GASKET

-, Serial Range: cover-cage

1шт.

10

L35493

CONE

- bearing, cage, outer

1шт.

A12959

CAGE

ASSEMBLY - pinion shaft, Includes: Ref. 11 - 13

1шт.

11

A12949

BEARING CUP

CUP - bearing, cage, outer

1шт.

12

NSS

NOT SOLD SEPARAT

CAGE - pinion shaft

1шт.

13

A12949

BEARING CUP

CUP - bearing, cage, inner

1шт.

14

A12960

SPACER

- bearing, .219" (5.56 mm) thick

1шт.

14

A12961

SPACER

- bearing, .220" (5.59 mm) thick

1шт.

14

A12962

SPACER

- bearing, .221" (5.61 mm) thick

1шт.

14

A12963

SPACER

- bearing, .222" (5.64 mm) thick

1шт.

14

A12964

SPACER

- bearing, .223" (5.66 mm) thick

1шт.

14

A12965

SHIM,.224" Thk

SPACER, , Bearing (5.69 mm) .224" Thk

1шт.

14

A12966

SPACER

- bearing, .230" (5.84 mm) thick

1шт.

14

A12967

SPACER

- bearing, .236" (5.99 mm) thick

1шт.

14

A12968

SPACER

- bearing, .242" (6.15 mm) thick

1шт.

14

A12969

SPACER

- bearing, .248" (6.30 mm) thick

1шт.

14

A12970

SPACER

- bearing, .254" (6.45 mm) thick

1шт.

15

L35488

ROLLER BEARING,47.638 mm ID x 30.365 mm

CONE - bearing, cage, inner

1шт.

16

A12958

SHIM,.003" Thk

Cage (.076 mm) .003" Thk

1шт.

16

A12956

SHIM,.005" Thk

Cage (.127 mm) .005" Thk

1шт.

16

A12957

SHIM,.010" Thk

Cage (.254 mm) .010" Thk

1шт.

17

129-179

NUT,Hex, 3/4" - 16, Gr 5

1шт.

18

L30949

SCREW

- adjusting, drive gear

1шт.

L36113

CARRIER AND CAP ASSEMBLY - differential, Includes: Ref. 19 - 25

1шт.

L30220

CARRIER

AND CAP - differential, Includes: Ref. 19 - 25

1шт.

19

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

20

L34037

BOLT

- special

4шт.

21

L30737

WASHER

- bolt

4шт.

22

NSS

NOT SOLD SEPARAT

CAP ASSEMBLY - differential, Includes: Ref. 23

2шт.

23

A15443

DOWEL

- cap

2шт.

24

A18196

HARDWARE

PIN - lock, bearing adjusting nut, when lock pin is removed for repairs, replace with new pin

2шт.

25

221-835

PLUG

- filler

1шт.
