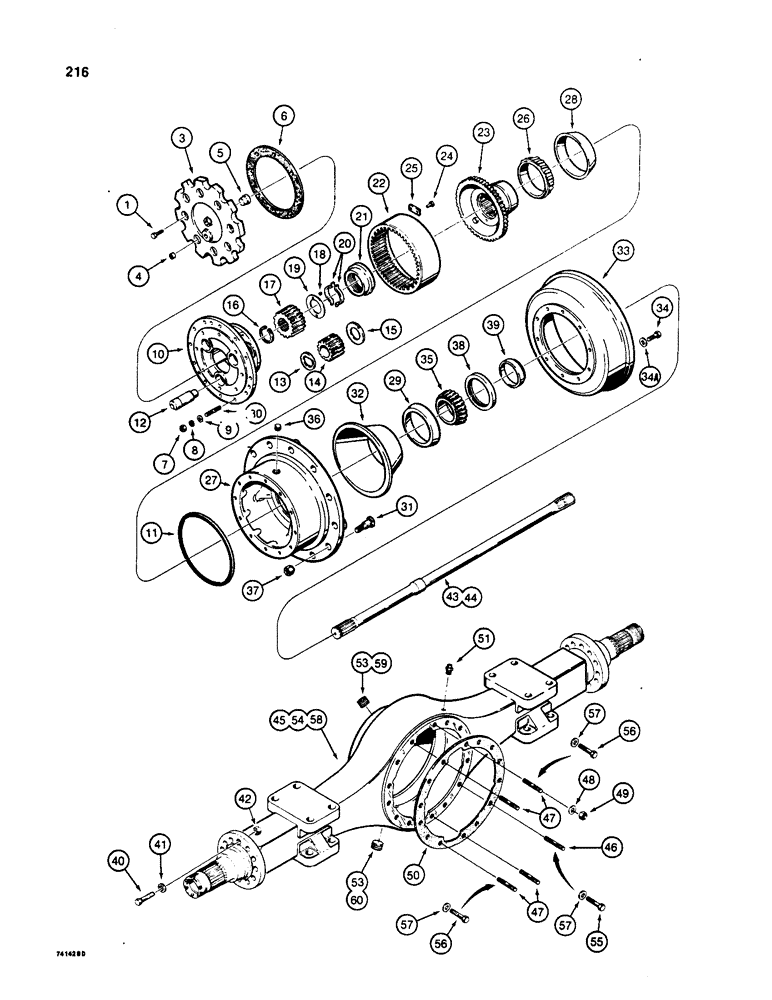

Запчасти Case W20 (216) - W18 AND W20 AXLE HOUSING AND PLANETARY (06) - POWER TRAIN

L58844

AXLE ASSEMBLY - complete, PR120-HX-1/9.03-1, if used, Includes: Ref. 1 - 39

2шт.

L79924

AXLE

ASSEMBLY - complete, PRLS-596-H100, if used, Includes: Ref. 1 - 39

2шт.

L103014

AXLE

ASSEMBLY - complete, PRLS-596-H102, if used, Includes: Ref. 1 - 39

2шт.

1

L30675

SCREW

BOLT - special

16шт.

3

L33952

COVER

- planetary spider, includes ref 5

2шт.

4

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- 3/4" NPT

2шт.

5

A12980

BUTTON

- thrust, drive shaft, included in L33952 cover

2шт.

6

A12910

GASKET,0.4mm Thk

- cover to spider, order M20704 form - in - place gasket

2шт.

7

129-545

NUT,1/2"-20, G8

24шт.

8

92-8

LOCK WASHER,1/2"

L58844 axle 1/2"

24шт.

9

D47366

WASHER

- flat, special, L79924 or L103014 axle

24шт.

10

A12909

U-JOINT SPIDER

SPIDER - planetary

2шт.

11

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

- if used, order M20704 form-in-place gasket, used at spider to hub

2шт.

12

A40146

SHAFT

- planetary pinion, use N13112 Washer with N9274 Pin.

6шт.

13

A12904

WASHER

THRUST WASHER - pinion, outer

6шт.

14

A12901

GEAR

PINION - planetary

6шт.

15

A40145

WASHER

THRUST WASHER - pinion, inner

6шт.

16

A20222

RING, SNAP

RETAINING RING - sun, Serial Range: gear-shaft

2шт.

17

A12905

GEAR

SUN GEAR - planetary

2шт.

A13103

WASHER

AND PIN ASSEMBLY - sun gear, order N6182, ref 19A, Includes: Ref. 18 & 19

2шт.

18

A13137

AXLE PIN

PIN - thrust washer, Includes: Ref. 19A

2шт.

19

NSS

NOT SOLD SEPARAT

THRUST WASHER - sun gear

1шт.

19a

N6182

WASHER

WITH PINS - special, not shown

2шт.

20

A12953

RETAINER

LOCK - bearing nut

4шт.

21

A13104

BEARING LOCK NUT

NUT - hub bearing

2шт.

22

A12911

GEAR

RING GEAR - hub

2шт.

23

L33735

HUB

- ring gear

2шт.

24

26-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex head, 5/16" - 18 NC x 3/4", grade 8

16шт.

25

A12914

LOCK ASSY

PLATE - lock

8шт.

26

L33737

BEARING ASSY,110 mm ID x 119 mm OD x 35 mm

CONE - hub bearing, outer

2шт.

L33730

HUB ASSY.

HUB AND CUP ASSEMBLY - axle, Includes: Ref. 27 - 29

2шт.

27

NSS

NOT SOLD SEPARAT

HUB - drive wheel

1шт.

28

L33732

BEARING CUP,149 mm ID x 159 mm OD x 26.5 mm

CUP - bearing, outer

1шт.

29

L33731

BEARING CUP,154.9 mm OD x 27.9 mm

CUP - bearing, inner

1шт.

30

L30951

STUD

-, Serial Range: spider-hub

24шт.

31

A13112

STUD

-, Serial Range: wheel-hub

24шт.

32

L33728

BRACKET

SLINGER - oil

2шт.

33

L33894

DRUM

- brake

2шт.

34

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex head, 5/8" - 11 NC x 1-1/2", grade 8

20шт.

34a

L30737

WASHER

- special

20шт.

35

L33736

ROLLER BEARING

CONE - hub bearing, inner

2шт.

36

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - magnetic, 3/4" NPT

2шт.

37

A12522

WHEEL NUT

- wheel bolt, not included in axle assembly

24шт.

38

D47371

SEAL

OIL SEAL AND RETAINER - hub bearing

2шт.

39

N7075

SLEEVE

- oil seal

2шт.

L58844

AXLE ASSEMBLY - complete, continued, PR120-HX-1-9.03-1, if used, Includes: Ref. 40 - 60

2шт.

L79924

AXLE

ASSEMBLY - complete, continued, PRLS-596-H100, if used, Includes: Ref. 40 - 60

2шт.

L103014

AXLE

ASSEMBLY - complete, continued, PRLS-596-H102, if used, Includes: Ref. 40 - 60

2шт.

40

28-830

BOLT,Hex, 1/2" - 20 x 1-7/8", Gr 8

- hex head, 1/2" - 20 NF x 1-3/4"

24шт.

41

L33864

WASHER

- special, L58844 axle

24шт.

41

D47366

WASHER

- special, L79924 or L103014 axle

24шт.

42

232-4618

LOCK NUT,1/2"-20, GC

NUT - hex, self-locking, 1/2" - 20 NF

24шт.

43

L32497

SHAFT

- axle, 42.88" (1089 mm) long, L58844 axle only

1шт.

44

L36110

HALF SHAFT

SHAFT - axle, 40.62" (1032 mm) long, L58844 axle only

1шт.

44

D80629

SHAFT

- axle, L79924 or L103014 axle, one length used both sides

2шт.

L36109

HOUSING

ASSEMBLY - L58844 axle, use D75505 housing, ref 54, Includes: Ref. 45 - 47

1шт.

45

NSS

NOT SOLD SEPARAT

HOUSING - axle and differential

1шт.

46

L30951

STUD

- 2-1/2" (64 mm) long

10шт.

47

A13130

STUD

- 2-5/8" (67 mm) long

4шт.

48

D47366

WASHER

- flat, special

14шт.

49

232-4618

LOCK NUT,1/2"-20, GC

NUT - hex, self-locking, 1/2" - 20 NF

14шт.

50

L36108

GASKET

- differential carrier to housing, order M20704 form - in - place gasket

1шт.

51

A12928

BREATHER

- oil, differential

1шт.

52

A19909

SPRING SEAT

SEAT - lower spring, not shown

2шт.

53

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- 3/4" NPT

2шт.

54

D75505

HOUSING

- axle and differential, L58844 axle

1шт.

55

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

10шт.

56

26-834

BOLT,Hex, 1/2" - 13 x 2-1/8", Gr 8

- hex head, 1/2" - 13 NC x 2-1/8"

4шт.

57

D47366

WASHER

- flat, special

14шт.

58

D80451

HOUSING

ASSEMBLY - L79924 or L103014 axle, Includes: Ref. 59 & 60

1шт.

59

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- 3/4" NPT

1шт.

60

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - 3/4" NPT, magnetic

1шт.
