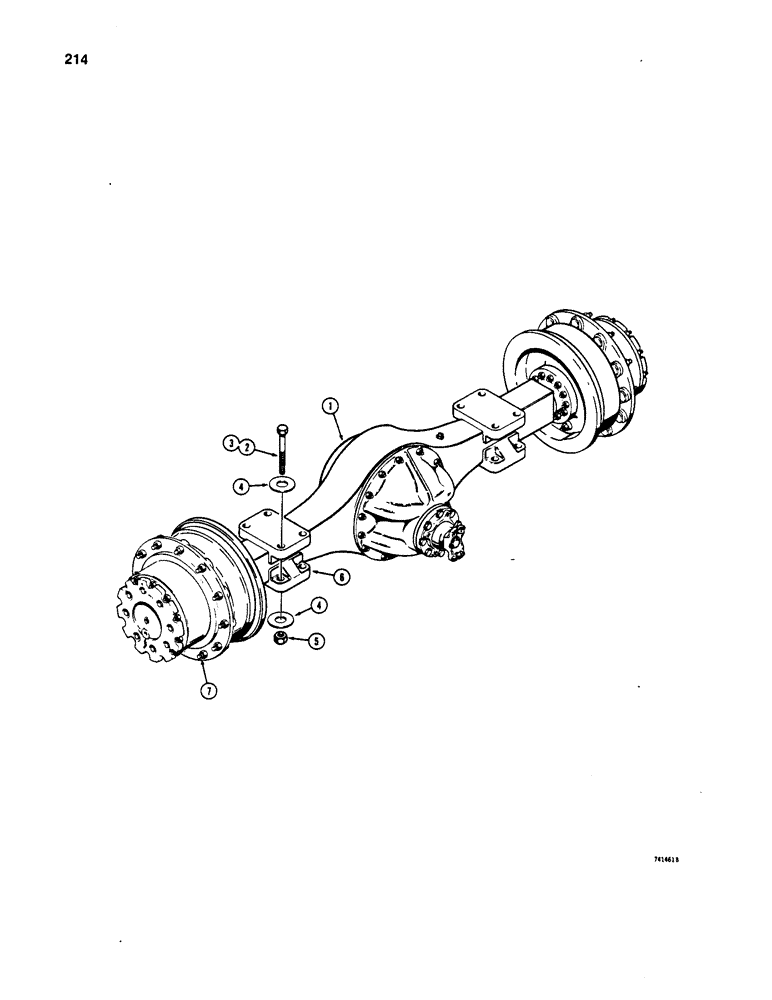

Запчасти Case W20 (214) - W18 AND W20 AXLE ASSEMBLIES (06) - POWER TRAIN

1

L58844

AXLE ASSEMBLY - Rockwell Standard PR-120-HX-1, front and rear, no longer available, parts list Figures 216 thru 222 and 228

2шт.

Use L103014 axle and L79452 drive shaft to service front axle. Use L103014 to service rear axle.

1шт.

1

L79924

AXLE

ASSEMBLY - Rockwell Standard PRLS-596-H100, front and rear, no longer available, parts list Figures 216, 218 and 224 thru 228

2шт.

Use L103014 axle and L79452 drive shaft to service front axle. Use L103014 to service rear axle.

1шт.

1

L103014

AXLE

ASSEMBLY - Rockwell Standard PRLS-695-H102, front and rear, parts list Figures 218, 218, and 224 thru 228

2шт.

2

116-900

BOLT,Hex, 1" - 14 x 11", Gr 8

If used Hex, 1"-14 x 11", G8

16шт.

3

116-907

BOLT,Hex, 1" - 14 x 12", Gr 8

- hex head, 1" - 14 NF x 12", if used

16шт.

4

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened, if used

32шт.

5

131-1253

LOCK NUT,1"-14, GC

NUT, LOCK, 1"-14, GC

16шт.

6

L73229

PAD - axle, uses 11" hardware

4шт.

6

L79814

PAD

- axle, uses 12" hardware

4шт.

7

A12522

WHEEL NUT

- wheel

48шт.
