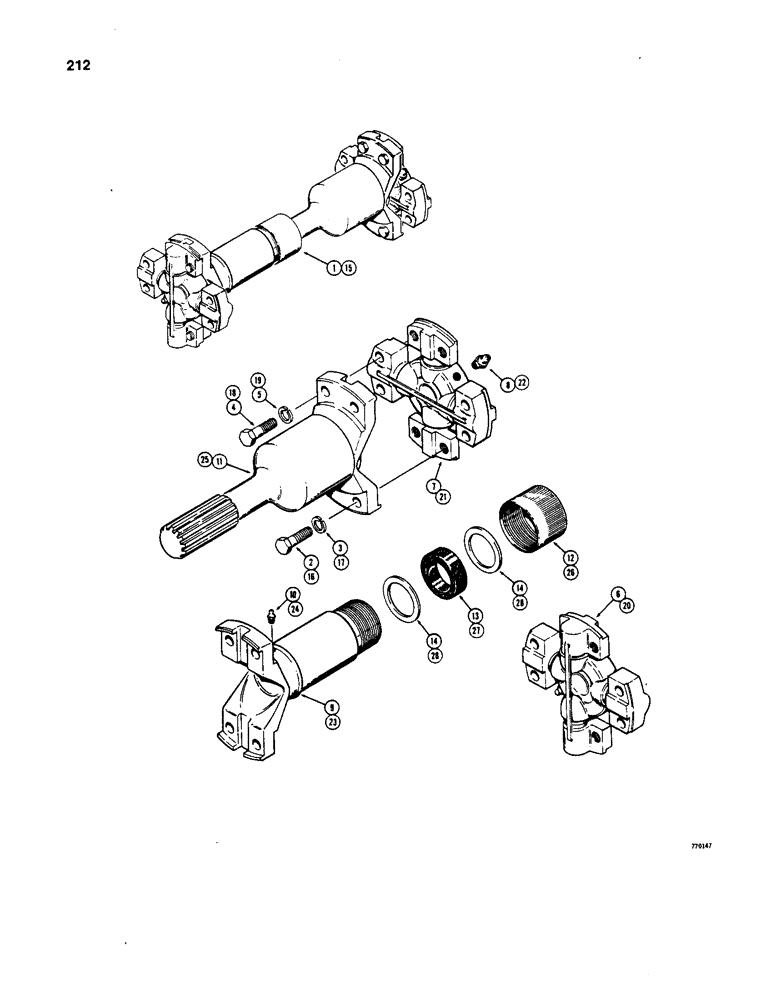

Запчасти Case W20 (212) - L47132 FRONT AXLE DRIVE SHAFT, (TRANSMISSION END) (06) - POWER TRAIN

1

L47132

SHAFT

DRIVE SHAFT ASSEMBLY - front transmission end, all models, Includes: Ref. 2 - 14

1шт.

2

A17302

SCREW,Hex, 3/8" - 24 x 1", Gr 8

BOLT - special

8шт.

3

192-161

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

4

28-632

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- hex head, 3/8" - 24 NF x 2"

8шт.

5

192-161

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

6

L32423

KIT

SPIDER AND BEARING ASSEMBLY - drive shaft, Includes: Ref. 7 & 8

2шт.

Illustration is incorrect. All (4) spider blocks are about the same thickness.

1шт.

7

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

9

L33623

YOKE

AND TUBE - drive shaft

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

11

L33625

YOKE

- splined end

1шт.

L33624

CAP

KIT - dust, drive shaft, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

CAP - dust, drive shaft

1шт.

13

L33948

WASHER

- felt

1шт.

14

L33627

WASHER

- metal, felt retaining

2шт.

15

L47133

SHAFT

DRIVE SHAFT ASSEMBLY - rear axle, W18 and W20 only, L47133 and L73833, Includes: Ref. 16 - 27

1шт.

15

L73833

SHAFT

DRIVE SHAFT ASSEMBLY - rear axle, W20B only, L47133 and L73833, Includes: Ref. 16 - 27

1шт.

16

A17302

SCREW,Hex, 3/8" - 24 x 1", Gr 8

BOLT - special, rear axle drive shaft, L47133 and L73833

8шт.

17

192-161

LOCK WASHER,3/8"

WASHER, LOCK, , Rear axle drive shaft, L47133 and L73833 3/8"

8шт.

18

28-632

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- hex head, 3/8" - 24 NF x 2", rear axle drive shaft, L47133 and L73833

8шт.

19

192-161

LOCK WASHER,3/8"

WASHER, LOCK, , Rear axle drive shaft, L47133 and L73833 3/8"

8шт.

20

L32423

KIT

SPIDER AND BEARING ASSEMBLY - drive shaft, rear axle, L47133 and L73833, Includes: Ref. 21 & 22

2шт.

21

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft, rear axle, L47133 and L73833

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, rear axle drive shaft, L47133 and L73833

1шт.

23

L32424

TUBE

YOKE AND TUBE - drive shaft, rear axle, L47133 and L73833

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, rear axle drive shaft, L47133 and L73833

1шт.

25

L33630

YOKE

- splined end, W18 and W20 only, rear axle drive shaft, L47133 and L73833

1шт.

25

D77488

FORK

YOKE - splined end, W20B only, rear axle drive shaft, L47133 and L73833

1шт.

L32425

CAP

KIT - dust, drive shaft, rear axle, L47133 and L73833, Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

CAP - dust, drive shaft, rear axle, L47133 and L73833

1шт.

27

L33948

WASHER

- felt, rear axle drive shaft, L47133 and L73833

1шт.

28

L31779

WASHER

- metal, felt retaining, rear axle drive shaft, L47133 and L73833

2шт.
