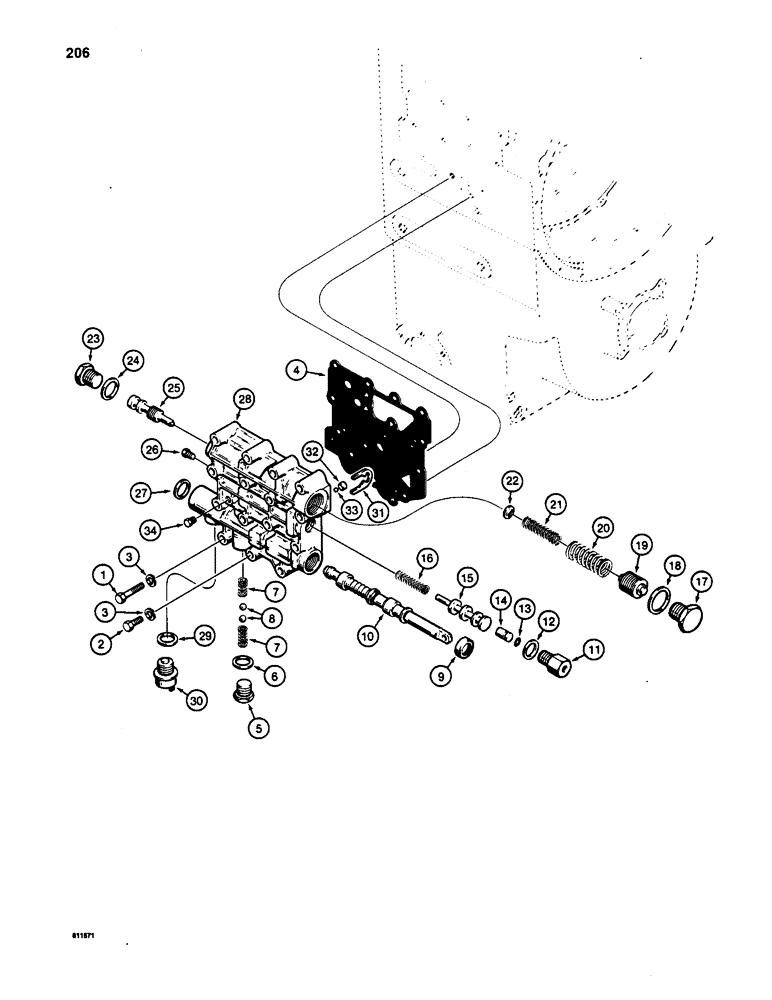

Запчасти Case W20 (206) - TRANSMISSION, TRANSMISSION CONTROL VALVES (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
13-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- hex head, 3/8" - 16 NC x 2-1/2"
15шт.
2
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
1шт.
3
92-6
LOCK WASHER,3/8"
16шт.
4
L31187
GASKET
-, Serial Range: valve-housing
1шт.
D71463
VALVE
- transmission control, before transmission SN 117175, Includes: Ref. 5 - 34
1шт.
N7315
VALVE
- transmission control, transmission SN 117175 and after, Includes: Ref. 5 - 34
1шт.
5
L31048
PLUG
- lower
1шт.
6
L31034
WASHER
GASKET - trimmer valve plug
1шт.
7
N7317
SPRING
- detent
2шт.
8
211-13
BALL,1/2" Dia
- detent 1/2" Dia
2шт.
9
D72773
SEAL,19.05mm ID x 35.08mm OD x 7.26mm Thk
OIL SEAL - spool
1шт.
10
L36061
VALVE
SPOOL - valve
1шт.
11
L31030
PLUG
- clutch cutoff valve
1шт.
12
L31034
WASHER
GASKET - plug
1шт.
13
A12666
O-RING,0.359" ID x 0.73"
SEAL - clutch cutoff valve
1шт.
14
L31025
PLUG
- clutch cutoff valve
1шт.
15
D72775
VALVE
- clutch cutoff
1шт.
16
L31169
SPRING
- clutch cutoff valve
1шт.
17
L31044
PLUG
- valve
1шт.
18
L31043
GASKET
- trimmer valve plug
1шт.
19
D51472
PLUG
- trimmer valve
1шт.
20
L31183
SPRING
- trimmer valve
1шт.
21
L35241
SPRING
- regulator valve
1шт.
22
L32743
RETAINER
- spring
1шт.
23
L31045
PLUG
- regulator valve
1шт.
24
L31016
GASKET
- plug
1шт.
25
L31189
VALVE
- regulator, used in D71463 valve
1шт.
25
N6388
VALVE
- regulator, used in N7315 valve
1шт.
26
221-661
PLUG,Hex Hd, 1/8"-27
- valve
1шт.
27
L31016
GASKET
- plug
1шт.
28
N7316
HOUSING
- valve, used in N7315 valve
1шт.
28
L36060
BODY
HOUSING - valve, used in D71463 valve, order N7316 housing and N6388 valve
1шт.
29
D72772
SEALING WASHER
GASKET - seal
1шт.
30
REF
INSTRUCTION
SWITCH - not part of transmission, see Figure 100, ref 20
1шт.
31
L31040
STOP
- valve
1шт.
32
L31046
PLUG
- ball retainer
1шт.
33
L31019
BALL
- valve
1шт.
34
221-661
PLUG,Hex Hd, 1/8"-27
- valve
1шт.
Выбрано товаров: 38
