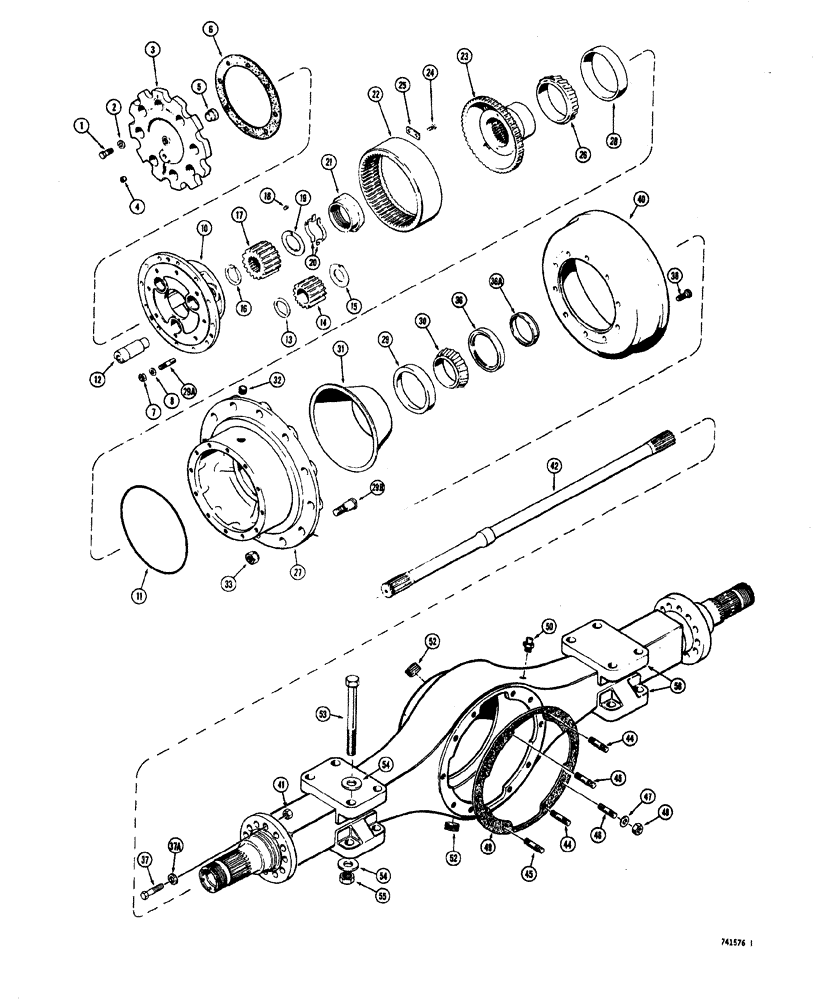

Запчасти Case W20 (156) - PR-80 SERIES AXLE HOUSING AND PLANETARY (06) - POWER TRAIN

1

26-718

BOLT,Hex, 7/16" - 14 x 1-1/8", Gr 8

HHCS - 7/16 - 14 NC x 1-1/8

16шт.

2

D47367

WASHER

special lock (7/1 6"")

16шт.

3

L32820

COVER

planetary spider (Used with 1/4" drain plug only)

2шт.

3

L33952

COVER

planetary spider (Used with 3/4" drain plug only)

2шт.

4

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

pipe, oil level (1/4" NPT) If used

2шт.

4

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

pipe, oil level (3/4" NPT) If used

2шт.

5

A12980

BUTTON

thrust, drive shaft (1 button included in either L32820 or L33952 cover)

2шт.

6

A12910

GASKET,0.4mm Thk

, Serial Range: cover-spider

2шт.

7

129-545

NUT,1/2"-20, G8

24шт.

8

92-8

LOCK WASHER,1/2"

24шт.

9

RESERVED

1шт.

10

A12909

U-JOINT SPIDER

planetary

2шт.

11

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

spider to hub

2шт.

12

A40146

SHAFT

planetary pinion

6шт.

13

A12904

WASHER

pinion thrust outer

6шт.

14

A12901

GEAR

PINION - planetary

6шт.

15

A40145

WASHER

pinion thrust, inner

6шт.

16

A12907

O-RING,1.74" ID x 0.1205"

retainer, sun gear to shaft

2шт.

17

A12905

GEAR

sun

2шт.

A13103

WASHER

AND PIN ASSEMBLY - thrust, Includes Ref: 18, 19

2шт.

18

A13137

AXLE PIN

thrust washer

2шт.

19

NSS

NOT SOLD SEPARAT

WASHER - thrust, sun gear

1шт.

20

A12953

RETAINER

LOCK - bearing nut

4шт.

21

A13104

BEARING LOCK NUT

hub bearing

2шт.

22

A12911

GEAR

ring, pinion

2шт.

23

L33735

HUB

ring gear

2шт.

24

26-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

lock plate (5/16" - 18 NC x 3/4") Grade 8

16шт.

25

A12914

LOCK ASSY

PLATE

8шт.

26

L33737

BEARING ASSY,110 mm ID x 119 mm OD x 35 mm

hub outer

2шт.

L33727

HUB

ASSEMBLY - drive wheel, does not include rim mounting bolts (When stock is exhausted, order L36, Includes Ref: 27-29B

2шт.

L36112

HUB

ASSEMBLY - drive wheel, does include rim mounting bolts, Includes Ref: 27-29B

2шт.

27

NSS

NOT SOLD SEPARAT

HUB - drive wheel

1шт.

28

L33732

BEARING CUP,149 mm ID x 159 mm OD x 26.5 mm

bearing, outer

1шт.

29

L33731

BEARING CUP,154.9 mm OD x 27.9 mm

bearing, inner

1шт.

29a

L30951

STUD

, Serial Range: spider-hub

12шт.

29b

A13112

STUD

drive, Serial Range: wheel-hub

12шт.

30

L33736

ROLLER BEARING

CONE - hub bearing inner

2шт.

31

L33728

BRACKET

SLINGER - oil

2шт.

32

22l-678

PLUG - pipe, magnetic (3/4" NPT)

2шт.

33

A12522

WHEEL NUT

drive wheel bolt (Not included in axle assembly)

24шт.

34

RESERVED

1шт.

35

RESERVED

1шт.

36

D47371

SEAL

oil and retainer - hub bearing

2шт.

36a

D51467

SLEEVE

oil seal

2шт.

37

28-830

BOLT,Hex, 1/2" - 20 x 1-7/8", Gr 8

HHCS - 1/2 - 20 NF x 1-3/4 T

24шт.

37a

L33864

WASHER

SPARE PART special

24шт.

38

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

brake drum to wheel hub (5/8 - 11 NC x 1-1/2 ) fradp ft

20шт.

39

RESERVED

1шт.

40

L33729

DRUM/Retired DRUM - bxake (When stock is exhausted, order L33894 drum for service)

2шт.

40

L33894

DRUM

brake

2шт.

41

232-4618

LOCK NUT,1/2"-20, GC

hex lock (1/2" - 20 NF)

24шт.

42

L33633

HALF SHAFT

axle (43" long) See L33634

1шт.

42

L33634

HALF SHAFT

axle (40-13/16" long) See L33633

1шт.

L33738

HOUSING

SPARE PART ASSEMBLY - rigid axle, Includes Ref: 43-46

1шт.

43

NSS

NOT SOLD SEPARAT

HOUSING - axle and differential

1шт.

44

L31888

STUD - differential carrier to housing (2-3/4" long)

2шт.

45

L33692

STUD

differential carrier to housing (2-1/2" long)

2шт.

46

L33693

STUD

differential carrier to housing (1-7/8" long)

6шт.

47

D47367

WASHER

special lock (7/16"')

10шт.

48

129-530

NUT,7/16"-20, G8

10шт.

49

REF

INSTRUCTION

GASKET - axle housing use M20704 silastic material, Includes Ref: 50, 51

1шт.

49

M20704

ADHESIVE

silastic material (Tube), Includes Ref: 50, 51

1шт.

50

A12928

BREATHER

oil differential

1шт.

51

A19909

SPRING SEAT

SPARE PART lower, (Not illustrated)

2шт.

52

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

pipe, dram and fill (3/4 NPT)

2шт.

53

116-904

BOLT,Hex, 1" - 14 x 10", Gr 8

(Front axle mounting)

8шт.

53

L57180

BOLT

special (Rear axle mounting )

8шт.

54

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

special, Serial Range: axle-frame

32шт.

55

131-1253

LOCK NUT,1"-14, GC

16шт.

56

A19909

SPRING SEAT

SPARE PART PAD - axle

4шт.
