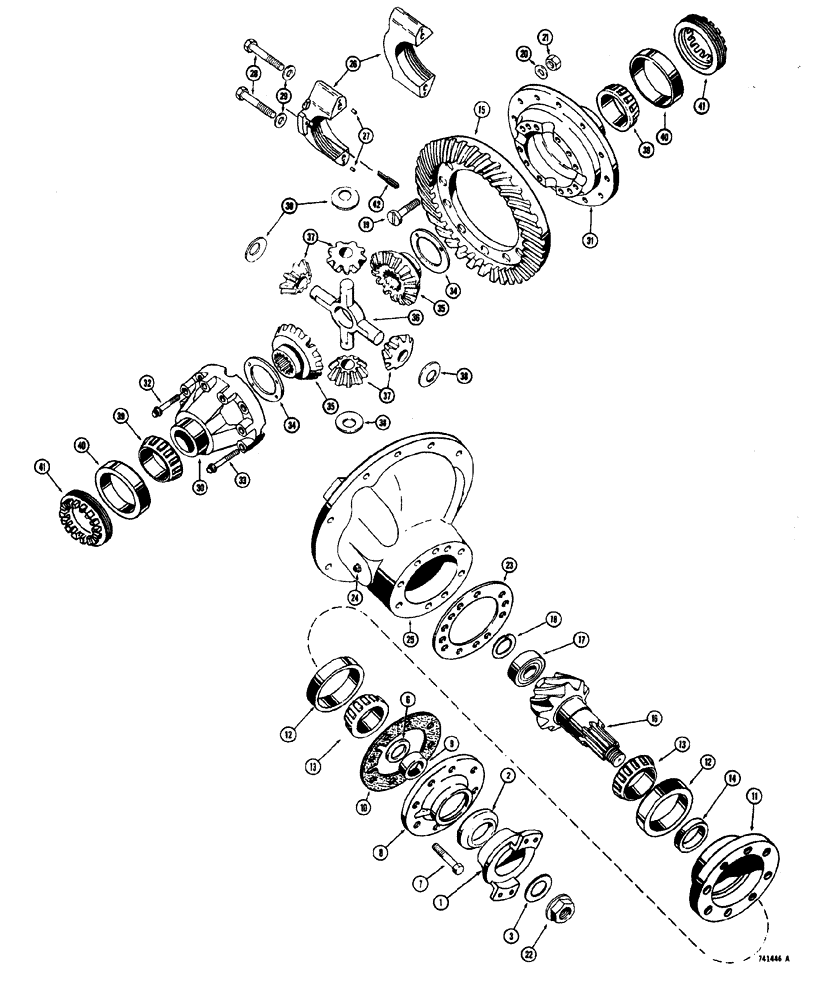

Запчасти Case W20 (155A) - D71238 DIFFERENTIAL ASSEMBLY ROCKWELL STANDARD F36-3200-4-1113/5.29 (06) - POWER TRAIN

D71242

YOKE

UNIVERSAL JOINT YOKE ASSEMBLY - drive shaft, Includes Ref: 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

2

D71243

CARRIER

SLINGER - oil

1шт.

D71238

CARRIER

DIFFERENTIAL ASSY., Includes Ref: 3-42, Orig. equip. in L59406 axle (Rockwell Stdrd PR-80-HX-22) Service replacement for L33631 diff (Rockwell Std A16-3200-E-785/5.2/7-1) L35936 diff (Rockwell Stdrd F12-3200-U-1113/5.29) and L58924 diff

1шт.

3

A13124

WASHER

special

1шт.

4

RESERVED

1шт.

5

RESERVED

1шт.

6

L33675

SPACER

WASHER - thrust, yoke

1шт.

7

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

8шт.

L33672

COVER

ASSEMBLY - pinion shaft, Includes Ref: 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - pinion shaft

1шт.

9

L33673

OIL SEAL

oil, pinion shaft

1шт.

10

D71239

SEAL

, Serial Range: cover-cage

1шт.

D71237

CAGE

ASSEMBLY - pinion shaft bearing, Includes Ref; 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

CAGE - bearing

1шт.

12

R10277

BEARING CUP,3.5" OD x 0.9063"

bearing - pinion shaft

2шт.

13

D71240

ROLLER BEARING,1.75" ID x 3.5" OD x 1.1875"

CONE - bearing, pinion shaft

2шт.

14

D71290

SPACER

bearing, .125" thick

1шт.

14

D71291

SPACER

bearing, .126" thick

1шт.

14

D71292

SPACER

bearing, .127" thick

1шт.

14

D71293

SPACER

bearing, .128" thick

1шт.

14

D71294

SPACER

bearing, .129" thick

1шт.

14

D71295

SPACER

bearing, .130" thick

1шт.

14

D71296

SPACER

bearing, .136" thick

1шт.

14

D71297

SPACER

bearing, .142" thick

1шт.

14

D71298

SPACER

bearing, .148" thick

1шт.

14

D71299

SPACER

bearing, .154" thick

1шт.

14

D71300

SPACER

bearing, .158" thick

1шт.

L36102

PACKAGE, REPAIR

bevel gear repair, Includes Ref: 15-22

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

17

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

spigot

1шт.

18

A18199

SNAP RING,#106, Ext

Ring, Snap, , bearing #106, Ext

1шт.

19

L35919

BOLT

special, ring, Serial Range: gear-differential

12шт.

20

D47366

WASHER

special

12шт.

21

131-1138

LOCK NUT,1/2"-13, GC

hex, self-locking (1/2")

12шт.

22

L35091

NUT

yoke retaining

1шт.

23

L36104

SHIM

bearing cage, .003"

1шт.

23

L36105

SHIM

bearing cage, .005"

1шт.

23

L36106

DISC

SHIM - bearing cage, .010

1шт.

L35938

CARRIER

AND CAP ASSEMBLY - differential, Includes Ref: 24-29

1шт.

24

221-835

PLUG

pipe, square head (3/4" NPT)

1шт.

25

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

26

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

27

A15443

DOWEL

CAP

4шт.

28

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

5/8" - 11 NC x 3-1/4" (Grade 8)

4шт.

29

L30737

WASHER

special

4шт.

L36096

SPARE PART CASE AND GEAR ASSEMBLY - differential, Includes Ref: 30-38

1шт.

L36097

SPLIT PIN/SAFETY PIN

BODY ASSEMBLY - case and gear, Includes Ref: 30-32

1шт.

30

NSS

NOT SOLD SEPARAT

CASE - differential, plain half

1шт.

31

NSS

NOT SOLD SEPARAT

CASE - differential, flange half

1шт.

32

L36101

SPARE PART special, short

4шт.

33

L34062

BOLT

special, case halves

8шт.

34

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

thrust, side gear

2шт.

35

D66304

GEAR

differential, side

2шт.

36

L36098

U-JOINT SPIDER

differential

1шт.

37

L36099

PINION

GEAR - differential

4шт.

38

L36100

WASHER

thrust

4шт.

39

A18173

ROLLER BEARING

CONE - differential

2шт.

40

L35931

BEARING CUP

bearing, differential

2шт.

41

A18194

RING

bearing adjusting

2шт.

42

A18196

HARDWARE

PIN - cotter, special

1шт.
