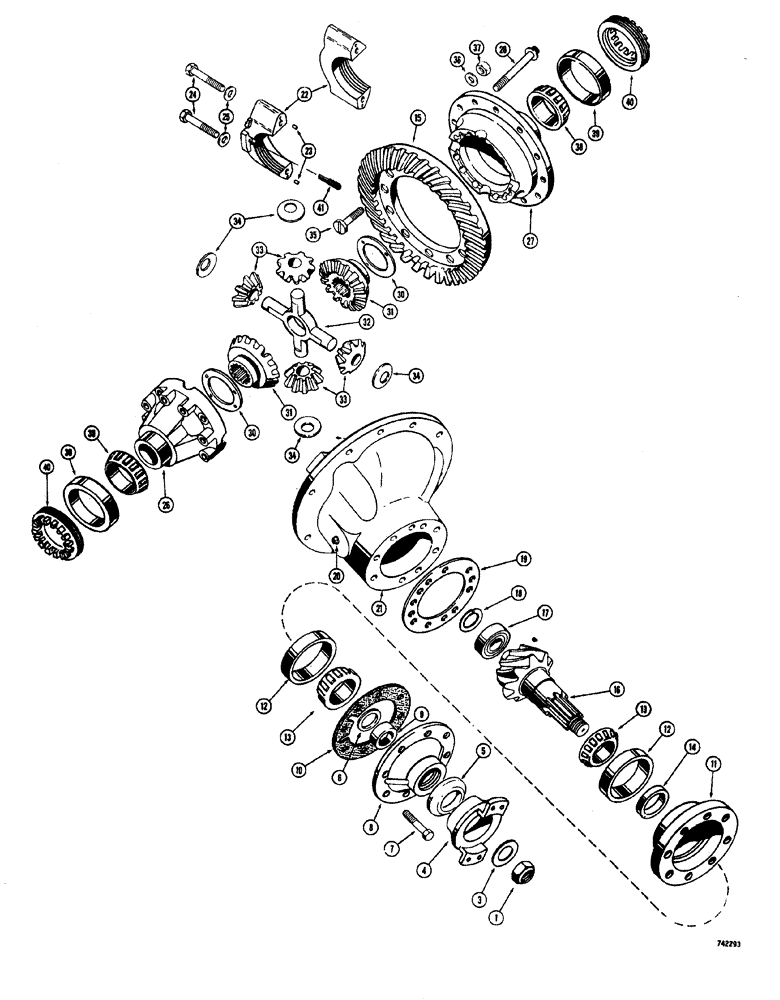

Запчасти Case W20 (148) - L35936 DIFFERENTIAL ASSEMBLY ROCKWELL STANDARD F12-3200-U-1113/5.29 (06) - POWER TRAIN

L35936

DIFFERENTIAL ASSY., Includes Ref: 1-41, Orig. equip. in L57781 axle (Rockwell Strd PR-80-HX-16) Svc replacement for L33631 differential (Rockwell Stdrd) A16-3200-E-785/5-2/7-1); Use D71238 differential & D71243 slinger, See Figure: 155A

1шт.

1

L35091

NUT

hex., self-locking

1шт.

2

RESERVED

1шт.

3

A13124

WASHER

special

1шт.

L33665

YOKE

UNIVERSAL JOINT YOKE ASSEMBLY - drive shaft, Includes Ref: 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

5

L33666

DEFLECTOR

SLINGER - oil

1шт.

6

L33675

SPACER

WASHER - thrust, yoke

1шт.

7

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

8шт.

L33672

COVER

ASSEMBLY - pinion shaft, Includes Ref: 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - pinion shaft

1шт.

9

L33573

SEAT

SEAL - oil, pinion shaft

1шт.

10

L33674

GASKET

, Serial Range: cover-cage

1шт.

L33867

SPOOL

CAGE ASSEMBLY - pinion shaft bearing, Includes Ref: 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

CAGE - bearing

1шт.

12

L33668

BEARING CUP

bearing, pinion shaft

2шт.

13

L35937

BEARING

CONE - pinion shaft

2шт.

14

L33679

SPARE PART bearing, .165" thick

1шт.

14

L33680

SPACER

bearing, .166" thick

1шт.

14

L33681

SPARE PART bearing, .167" thick

1шт.

14

L33682

SPARE PART bearing, .168" thick

1шт.

14

L33683

SPARE PART bearing, .169" thick

1шт.

14

L33684

SPACER

bearing, .170" thick

1шт.

14

L33685

SPACER

bearing, .176" thick

1шт.

14

L33686

SPARE PART bearing, .183" thick

1шт.

14

L33687

SPACER

bearing, .188" thick

1шт.

14

L33688

SPARE PART bearing, .194" thick

1шт.

14

L33689

SPARE PART bearing, .200" thick

1шт.

L33690

GEAR

SET - rine and pinion, Includes Ref: 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

17

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

inner, drive pinion (Ball type)

1шт.

18

A18199

SNAP RING,#106, Ext

Ring, Snap, , bearing #106, Ext

1шт.

19

L33676

DISC

SHIM - bearing cage, .003"

1шт.

19

L33677

DISC

SHIM - bearing cage, .005"

1шт.

19

L33678

DISC

SHIM - bearing cage, .010" thick

1шт.

20

221-835

PLUG

pipe, square head (3/4" NPT)

1шт.

21

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

22

N8S

CAP - differential bearing

2шт.

23

A15443

DOWEL

cap

4шт.

24

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

5/8" - 11 NC x 3-1/4" (Grade 8)

4шт.

25

L30737

WASHER

special

4шт.

L33670

DIFFERENTIAL

CASE AND GEAR ASSEMBLY - differential

1шт.

26

NSS

NOT SOLD SEPARAT

CASE - differential, plain half

1шт.

27

NSS

NOT SOLD SEPARAT

CASE - differential flange half

1шт.

28

L34062

BOLT

special, case halves

8шт.

29

RESERVED

1шт.

30

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

thrust side gear

2шт.

31

D66304

GEAR

differential side

2шт.

32

A18181

U-JOINT SPIDER

differential

1шт.

33

A18175

PINION

GEAR - differential

4шт.

34

A18176

DISC

WASHER - thrust

4шт.

35

L35919

BOLT

special, ring, Serial Range: gear-differential

12шт.

36

D47366

WASHER

special

12шт.

37

131-1138

LOCK NUT,1/2"-13, GC

hex self -locking

12шт.

38

A18173

ROLLER BEARING

CONE - differential

2шт.

39

L35931

BEARING CUP

bearing differential

2шт.

40

A18194

RING

bearing adjusting

2шт.

41

A18196

HARDWARE

PIN - cotter, special

2шт.
