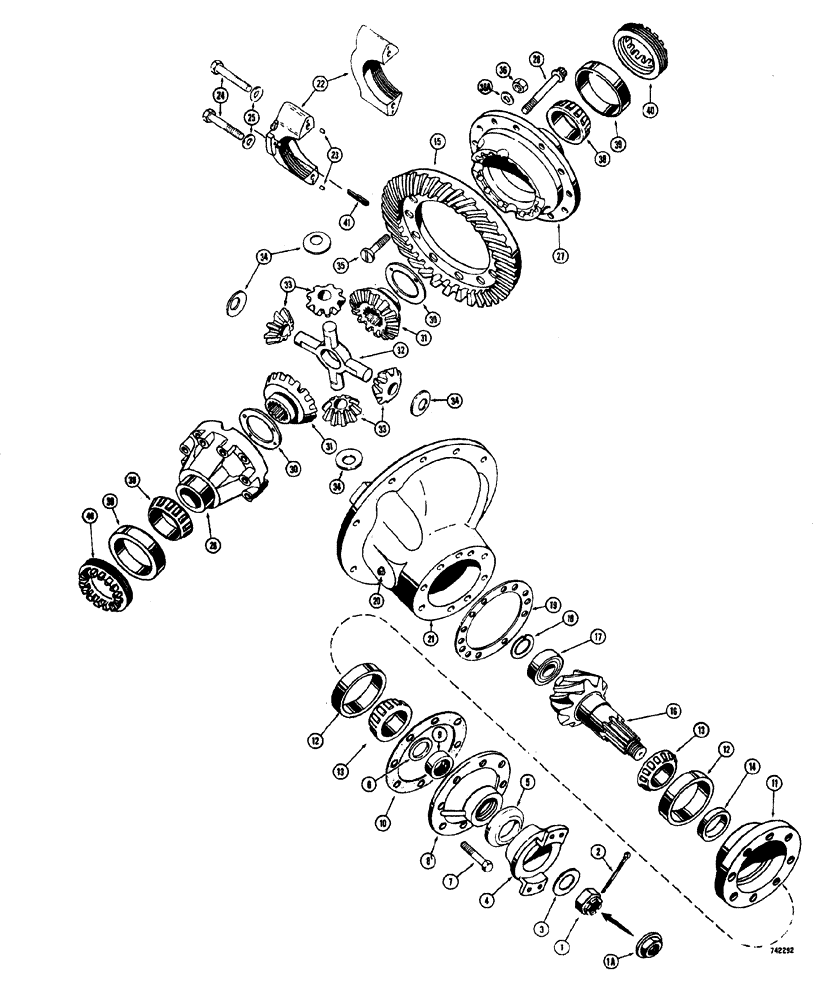

Запчасти Case W20 (144) - L33631 DIFFERENTIAL ASSEMBLY ROCKWELL STANDARD A16-3200-E-785/5- 2/7-1 (06) - POWER TRAIN

L33631

SPARE PART DIFFERENTIAL ASSY. - Includes Ref: 1-41, Orig. equip. in L46545 axle (Rockwell Stdrd PR-80-HX-7); Use D71238 differential and D71243 slinger, See Figure: 155A

1шт.

1

L30731

SLOTTED NUT

hex slotted yoke to pinion shaft (If used)

1шт.

1a

L35091

NUT

special lock (If used)

1шт.

3

A13124

WASHER

special

1шт.

L33665

YOKE

UNIVERSAL JOINT YOKE ASSEMBLY - drive shaft, Includes Ref: 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

5

L33666

DEFLECTOR

SLINGER - oil

1шт.

6

L33675

SPACER

WASHER - thrust, yoke

1шт.

7

26-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 8

8шт.

L33672

COVER

ASSEMBLY - pinion shaft, Includes Ref: 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - pinion shaft

1шт.

0

L33673

OIL SEAL

oil, pimon shaft

1шт.

10

L33674

GASKET

, Serial Range: cover-cage

1шт.

L33667

CAGE

ASSEMBLY - pinion shaft bearing, Includes Ref: 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

CAGE - bearing

1шт.

12

L33668

BEARING CUP

bearing, pimon shaft

2шт.

13

L33669

ROLLER BEARING

bearing pinion shaft

2шт.

14

L33679

SPARE PART bearing, .165" thick

1шт.

14

L33680

SPACER

bearing, .166" thick

1шт.

14

L33681

SPARE PART bearing, .167" thick

1шт.

14

L33682

SPARE PART bearing, .168" thick

1шт.

14

L33683

SPARE PART bearing, .169" thick

1шт.

14

L33684

SPACER

bearing, .170" thick

1шт.

14

L33685

SPACER

bearing, .176" thick

1шт.

14

L33686

SPARE PART bearing, .183" thick

1шт.

14

L33687

SPACER

bearing, .188" thick

1шт.

14

L33688

SPARE PART bearing, .194" thick

1шт.

14

L33689

SPARE PART bearing, .200" thick

1шт.

L33690

GEAR

SET - ring and pinion, Includes Ref: 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

17

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

inner, drive pinion (Ball type)

1шт.

18

A18199

SNAP RING,#106, Ext

Ring, Snap, , bearing #106, Ext

1шт.

19

33676

DRAWBAR SUPPORT

SHIM - bearing cage, .003"

1шт.

19

L33677

DISC

SHIM - bearing cage, .005"

1шт.

19

L33678

DISC

SHIM - bearing cage, .010"

1шт.

L33663

CARRIER

AND CAP ASSEMBLY - differential, Includes Ref: 20-25

1шт.

20

221-835

PLUG

pipe square head (3/4"" NPT)

1шт.

21

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

22

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

23

A15443

DOWEL

cap

4шт.

24

A18171

CAP

BOLT - special (When stock is exhausted, order 26-1052 for service)

4шт.

24

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

special

4шт.

25

L30737

WASHER

special

4шт.

L33670

DIFFERENTIAL

CASE AND GEAR ASSEMBLY - differential, Includes Ref: 26-34

1шт.

26

NSS

NOT SOLD SEPARAT

CASE - differential, plain half

1шт.

27

NSS

NOT SOLD SEPARAT

CASE - differential, flange half

1шт.

28

L30668

SCREW

special case halves (When stock is exhausted, order L34062 bolt for service)

8шт.

28

L34062

BOLT

special case halves

8шт.

30

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

thrust, side gear

2шт.

31

D66304

GEAR

differential side

2шт.

32

A18181

U-JOINT SPIDER

differential

1шт.

33

A18175

PINION

GEAR - differential, pinion

4шт.

34

A18176

DISC

WASHER - thrust

4шт.

35

D47597

BOLT

special ring gear to differential (When stock ] exhausted, order L35919 bolt, 131-1138 nut

12шт.

35

L35919

BOLT

special ring gear to differential (Used with 131-1138 nut and D47366 washer)

12шт.

36

129-282

SLOTTED NUT

hex slotted (1 /2 - 20 NF) Used with D47597 bol

12шт.

36

131-1138

LOCK NUT,1/2"-13, GC

hex self-lockine (Used with L35919 bolt)

12шт.

36a

D47366

WASHER

special (Used with L35919 bolt and 131-113 nut)

12шт.

37

391-618

ELECTRICAL WIRE

WIRE LOCKWIRE #16 x 10 lone (Used with D47597 bolt an 129-282 nut) Not shown

1шт.

38

A18173

ROLLER BEARING

CONE - bearing differential

2шт.

39

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

bearing differential

2шт.

40

A18195

RING

bearing adjusting

2шт.

41

A18196

HARDWARE

PIN - cotter, special

2шт.

2

132-54

COTTER PIN,1/8" x 1 3/4"

If used

1шт.
