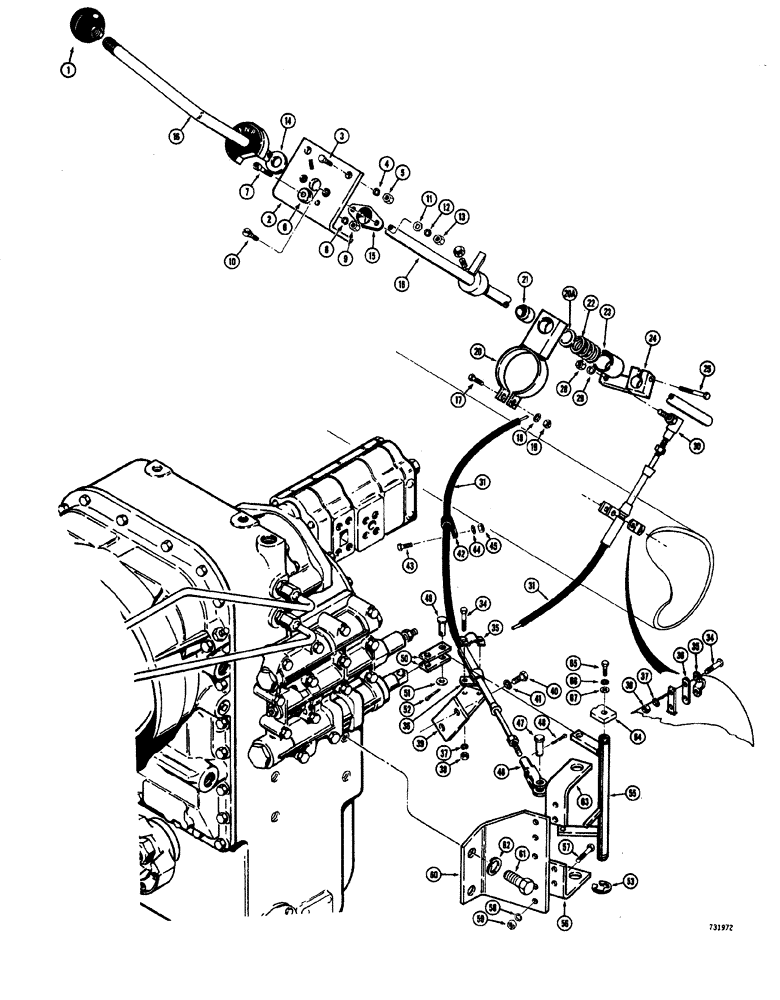

Запчасти Case W20 (134) - TRANSMISSION CONTROL PARTS (CONTINUATION) (06) - POWER TRAIN

41

92-6

LOCK WASHER,3/8"

2шт.

42

49838

CLAMP

hose

1шт.

43

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

44

92-6

LOCK WASHER,3/8"

1шт.

45

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

1шт.

46

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

cable end

1шт.

47

141-2

CLEVIS PIN,1/4" x .770"

clevis, 1/4" .

1шт.

48

132-6

COTTER PIN,1/16" x 5/8"

1шт.

49

141-11

CLEVIS PIN,3/8" x 1 1/4"

PIN - 3/8"

2шт.

50

L47832

LINK

transmission control, at transmission

2шт.

51

95-6

WASHER,3/8"

standard wrot

2шт.

52

132-48

COTTER PIN,1/8" x 1"

2шт.

53

A27811

CIRCLIP,#X74, .616" Dia, E-Type

bellcrank (used with L48301 bellcrank only) #X74, .616" Dia, E-Type

2шт.

53

A31191

CIRCLIP

retaining, bellcrank (Used with L52492 and L57845 bellcrank only)

2шт.

54

O860B

WASHER

special (Used with L48301 bellcrank only)

2шт.

55

L48301

ARM ASSY.

BELLCRANK - transmission shift (Used before Trans. Sn. 51828) When stock is exhausted, order (1) L52492 bellcrank, (2) L51603 brackets and (2) A31191 snap rings

1шт.

35240 KIT - service, to rework neutral start on machines before tractor Sn. 9109432.

1шт.

55

L52492

ARM ASSY.

BELLCRANK - trans, shift (Used before trans. Sn. 51828)

1шт.

55

L57845

ROD

BELLCRANK - trans, shift (Used trans. Sn. 51828 and after)

1шт.

56

L48303

SPARE PART BELLCRANK support, lower (Used with L48301 bellcrank only)

1шт.

56

L51603

BRACKET

BELLCRANK support, lower (Used with L52492 bellcrank only)

1шт.

57

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

4шт.

58

92-5

LOCK WASHER,5/16"

4шт.

59

9635082

NUT,5/16" - 18, Gr 5

4шт.

60

L52490

BRACKET

support, transmission shift

1шт.

61

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

62

92-10

LOCK WASHER,5/8"

2шт.

63

L48303

SPARE PART BELLCRANK support, upper (Used with L48301 bell-crank only)

1шт.

63

L52535

BRACKET

BELLCRANK support, upper (Used with L52492 bell-crank only)

1шт.

63

L51603

BRACKET

BELLCRANK support, upper (Used with L57845 bell-crank only)

1шт.

64

L52491

CAM

neutral start switch (Used with L52492 bellcrank only)

1шт.

65

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(If used)

1шт.

66

92-5

LOCK WASHER,5/16"

If used

1шт.

67

95-5

WASHER,3/8" x 7/8" x .083"

standard wrot (5/16") If used

1шт.

L35240

KIT

service, to rework neutral start on machines

1шт.
