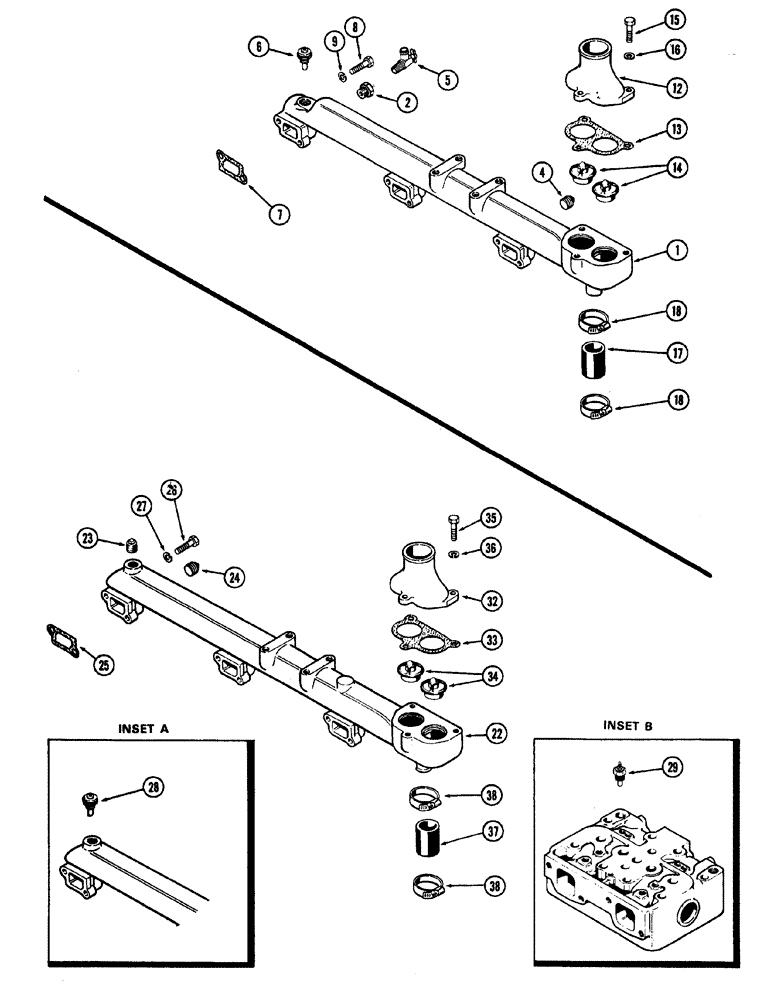

Запчасти Case W20 (008) - (401B) DIESEL ENGINE WATER MANIFOLD AND THERMOSTAT, ALUMINUM (02) - ENGINE

A44088

MANIFOLD

KIT water, aluminum, Includes Ref: 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD water, aluminum

1шт.

2

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

Aluminum

1шт.

4

221-845

PLUG,Hex Soc, 3/4"-14

hex socket head, 3/4" PT, aluminum

1шт.

5

A16764

VALVE

shut-off (Discard 3/8" plug in reducer bushing), aluminum

1шт.

6

L56217

UNIT

temperature sending, 1/2" PT, aluminum

1шт.

7

A58637

MANIFOLD GASKET

manifold, aluminum

3шт.

8

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Manifold, aluminum

6шт.

9

92-6

LOCK WASHER,3/8"

aluminum

6шт.

12

A58638

HOUSING

thermostat, aluminum

1шт.

13

A58639

GASKET

thermostat housing, aluminum

1шт.

14

A57641

THERMOSTAT

180°, aluminum

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Housing, aluminum

3шт.

16

92-6

LOCK WASHER,3/8"

aluminum

3шт.

17

A58640

HOSE

water by-pass, 1-1/4" I.D. x 2-3/8", aluminum

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

hose, 1-3/16" to 1-3/4", aluminum

2шт.

22

A60528

TUBE

MANIFOLD water, cast iron

1шт.

23

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

square head, 1/2" PT, cast iron

1шт.

24

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

hex socket head, 3/4" PT, cast iron

2шт.

25

A58637

MANIFOLD GASKET

water manifold, cast iron

3шт.

26

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Cast iron

3шт.

26

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Manifold, cast iron

3шт.

27

92-6

LOCK WASHER,3/8"

cast iron

6шт.

28

L56217

UNIT

temperature sending, in water manifold, 1/2" PT, first used engine Serial No. 2543315, see Inset A, cast iron

1шт.

29

A65588

SENDER UNIT

SENDER temperature sending, in cylinder head, 3/8" PT, prior to engine Serial No. 2543315, see Inset B, cast iron

1шт.

32

A58638

HOUSING

thermostat, cast iron

1шт.

33

A58639

GASKET

thermostat housing, cast iron

1шт.

34

A57641

THERMOSTAT

180", cast iron

2шт.

35

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Housing, cast iron

3шт.

36

92-6

LOCK WASHER,3/8"

cast iron

3шт.

37

A58640

HOSE

water by-pass, 1-1/4" I.D. x 2-3/8", cast iron

1шт.

38

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

hose, 1-3/16" to 1-3/4", cast iron

2шт.
