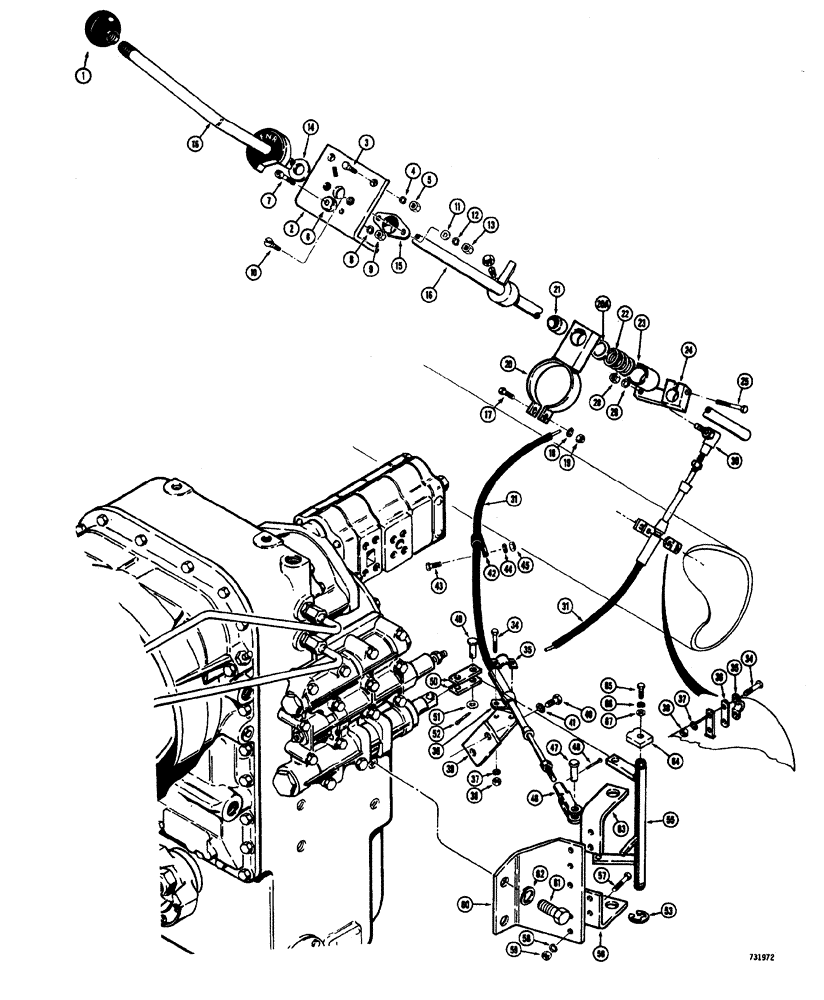

Запчасти Case W20 (132) - TRANSMISSION CONTROL PARTS (06) - POWER TRAIN

1

A23882

BALL - transmission shift lever

1шт.

2

L48006

BRACKET

shift and steering column

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

2шт.

6

L48011

WASHER

STOP - shifting lever

1шт.

7

61-416

HEX SOC SCREW,1/4"-20 x 1"

cap - hex. socket head (1/41" - 20 NC x 1")

1шт.

8

92-4

LOCK WASHER,1/4"

1шт.

9

25-104

NUT,1/4"-20, G5

1шт.

10

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

machine, flat head (1/4" - 20 NC x 5/8")

2шт.

11

195-18

WASHER,1/4"

plain () 1/4"

2шт.

12

92-4

LOCK WASHER,1/4"

2шт.

13

25-104

NUT,1/4"-20, G5

2шт.

14

L12478

BEARING

thrust

1шт.

15

L15401

BEARING,15.89mm ID

shift lever (When stock is exhausted order L58543 bearing for service)

1шт.

15

L58543

BEARING

shift lever

1шт.

16

L48020

SHAFT

transmission control

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

25-106

NUT,3/8"-16, G5

hex (3/8 ' - 16 NC)

1шт.

20

L50028

SPARE PART transmission control shaft (Used with L46936 bushing)

1шт.

20

L 51989

SUPPORT - transmission control shaft (Used with L51991 bushing)

1шт.

20a

195-41

WASHER,5/8"

plain (11/16" I.D.)

1шт.

21

L33937

KIT

BUSHING - self-alignment, shaft (1-1/16" O.D.)

1шт.

21

L51991

CYLINDER END CAP

BUSHING - self-alignment, shaft (1-1/8" O.D.)

1шт.

22

A26586

SPRING

compression

1шт.

23

L12479

SLEEVE

transmission control shift

1шт.

24

L48500

ARM

control linkage (Uses 13-524 bolt, 92-5 washer and 25-105 nut) When stock is exhausted use L57327 lever

1шт.

24

L57327

LEVER

control linkage (Uses 92-5 washer and 13-516 bolt)

1шт.

25

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

(If used)

1шт.

25

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(If used)

1шт.

26

92-5

LOCK WASHER,5/16"

If used

1шт.

27

9635082

NUT,5/16" - 18, Gr 5

If used

1шт.

28

25-154

JAM NUT,Jam, 1/4"-28, G5

Hex

1шт.

29

92-4

LOCK WASHER,1/4"

1шт.

30

A10329

BALL JOINT,1/4" - 28 x 1"

cable end

1шт.

31

L47901

CABLE

ASSEMBLY - transmission shift control

1шт.

32

RESERVED

1шт.

33

RESERVED

1шт.

34

169-102

SCREW,Sl Fil Hd, #10 - 24 x 1"

machine, slotted fillister head (#10 - 24 NC x 1")

4шт.

35

L40314

CLAMP

transmission shift control cable

2шт.

36

L40315

SHIM,5.55mm ID x 12.7mm OD x 2.28mm Thk

cable clamping

2шт.

37

92-3

LOCK WASHER,#10

4шт.

38

129-7

NUT,Hex, #10 - 24

4шт.

39

L48449

BRACKET

SPARE PART cable clamp mounting

1шт.

40

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.
