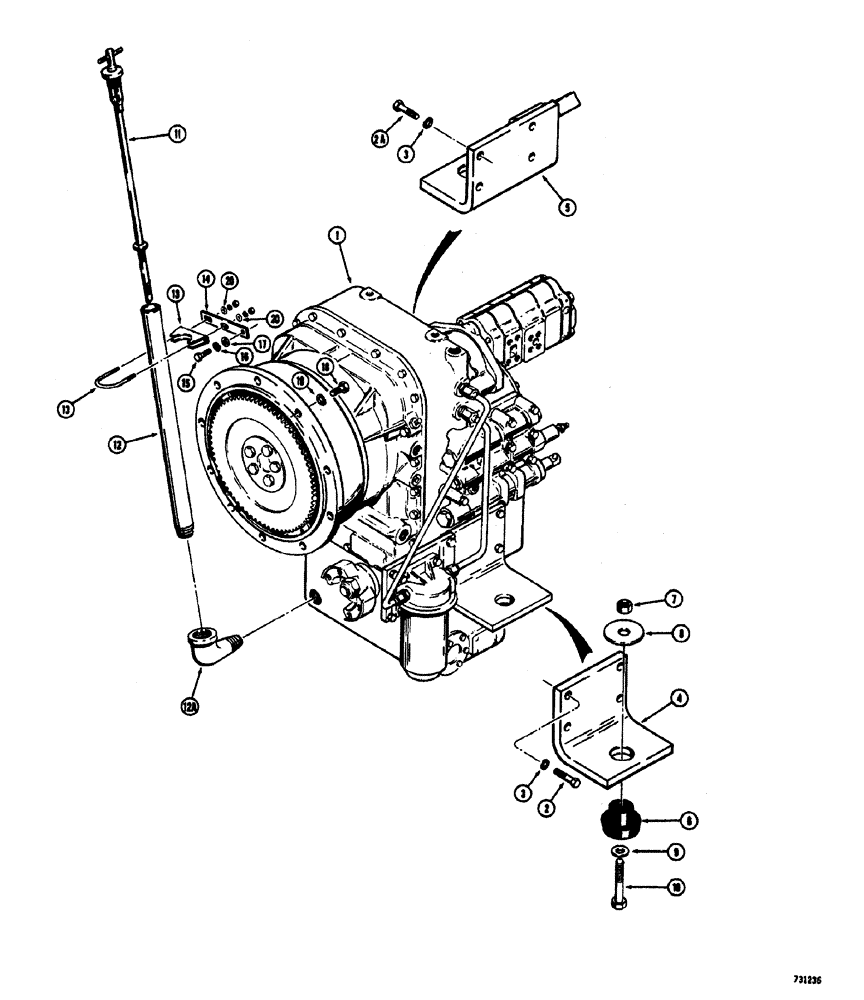

Запчасти Case W20 (130) - TRANSMISSION AND RELATED PARTS (06) - POWER TRAIN

1

L46456

TRANSMISSION

complete, See parts list Figures: 98-124, before transmission S.N. 35042

1шт.

1

L52101

TRANSMISSION

complete, See parts list Figures: 98-124, transmission S.N. 35042 thru 57827

1шт.

1

L55661

TRANSMISSION

ASSEMBLY - complete, See parts list Figures: 98-124, transmission S.N. 51828 and after

1шт.

2

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

2a

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

3

92-10

LOCK WASHER,5/8"

8шт.

4

L50676

BRACKET

trans mounting, R H, Includes Ref: 6

1шт.

5

L50679

MOUNTING PARTS

BRACKET - trans mounting, L H, Includes Ref: 6

1шт.

6

A19066

MOUNTING PARTS

SHOCK MOUNT - transmission, bonded

1шт.

7

131-16

LOCK NUT,3/4"-10, GB

2шт.

8

A19068

WASHER

special, shock mount retaining

2шт.

9

95-12

WASHER,3/4"

standard wrot () 3/4"

2шт.

10

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

11

L50261

DIPSTICK

transmission oil gauge (Threaded cap) When stock is exhausted, order L53872 dipstick for

1шт.

11

L53872

DIPSTICK

transmission oil gauge (Non- threaded cap with T handle)

1шт.

12

L49769

SPARE PART transmission filler (Threaded on both ends) When stock is exhausted, order L53873 pipe and L

1шт.

12

L53873

PIPE

SPARE PART transmission filler (Threaded on lower end only)

1шт.

12a

221-417

ELBOW,90 Degree, 1 1/4"-11 1/2, NPT

ELBOW - street 90° (1-1/4" NPT)

1шт.

13

L14262

CLAMP

pipe

1шт.

14

L72533

BRACKET

, Serial Range: clamp-transmission

1шт.

15

13-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 5

1шт.

16

92-7

LOCK WASHER,7/16"

1шт.

17

95-7

WASHER,7/16"

standard wrot () 7/16"

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

19

92-6

LOCK WASHER,3/8"

12шт.

20

195-103

WASHER,5/16"

2шт.
