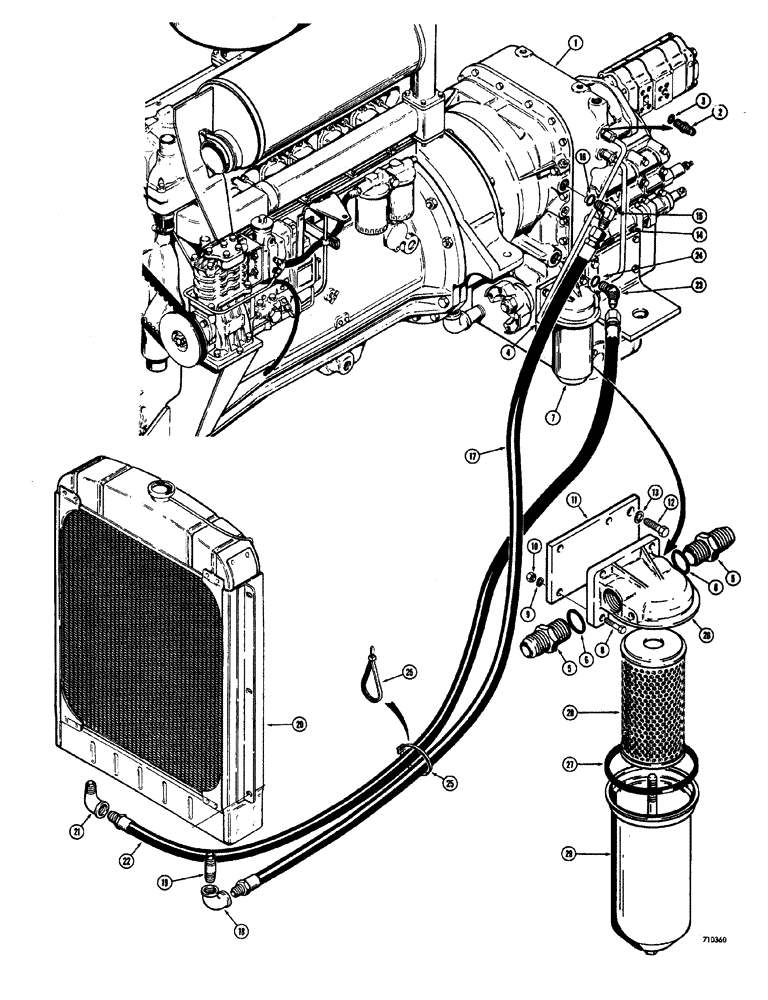

Запчасти Case W20 (126) - TRANSMISSION HYDRAULIC SYSTEM VERTICALLY MOUNTED TRANSMISSION OIL FILTER (06) - POWER TRAIN

1

L46456

TRANSMISSION

ASSEMBLY - complete, See parts list Figures: 98-124, before Transmission S.N. 35042

1шт.

1

L52101

TRANSMISSION

ASSEMBLY - complete, See parts list Figures: 98-124, transmission S.N. 35042 thru 51827

1шт.

1

L55661

TRANSMISSION

ASSEMBLY - complete, See parts list Figures: 98-124, transmission S.N. 51828 and after

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Male, straight

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

L47939

TUBE,0.75" OD

supply, transmission to oil filter

1шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Male, straight

2шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

L47739

FILTER

ASSEMBLY - transmission oil (See parts list below)

1шт.

6

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Filter mounting)

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

25-106

NUT,3/8"-16, G5

hex (3/8"" - 16 NC)

4шт.

11

L47740

BRACKET

filter mounting

1шт.

12

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

13

92-10

LOCK WASHER,5/8"

2шт.

14

L47943

TUBE,0.75" OD

return, oil filter to transmission

1шт.

15

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Male

1шт.

15a

L46314

MANIFOLD

transmission oil temp switch and cooling hose, Includes Ref: 16

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

L48529

HOSE

SPARE PART transmission to radiator (68" long)

1шт.

18

221-378

ELBOW,90 Degree, 3/4" NPT

ELBOW - pipe, 90° (Female) 3/4"" NPT

1шт.

19

221-701

PIPE,Nipple, 3/4" NPT x 2 1/4"

pipe (3/4' NPT x 2-1/4 ')

1шт.

20

L46068

RADIATOR

engine and transmission cooling (See Figure: 40 for related parts)

1шт.

21

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street

1шт.

22

L50014

HOSE

radiator to transmission (84 long)

1шт.

23

218-5l 38

ELBOW - adjustable, 45°, Includes Ref: 24

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

25

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP WIRE tire, cooler hoses

1шт.

L47739

FILTER

ASSEMBLY - transmission oil, Includes Ref: 26-29

1шт.

26

L33709

HEAD

filter

1шт.

L33711

FILTER, ELEMENT

ELEMENT, FILTER ASSEMBLY - filter, Includes Ref: 27, 28

1шт.

27

L33712

GASKET

head (If used)

1шт.

28

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

29

L33710

SHELL

BODY - filter

1шт.
